  • Page 2 Package contents • 1 x 10GBASE-T TAP (C1R-10G) • 1 x 30W power supply (100–240 VAC to 12 VDC) • 1 x user manual For any questions, technical or otherwise, contact our customer support through our website: or by email:...

  • Page 3: Table Of Contents

    Table of contents Chapter Page 1. General Information 2. Visual Description 3. Functional Description 3.1 Interface connectors 3.2 Activity / Link 3.3 LED behaviour 3.4 Power 3.5 Power failure 3.6 Fast Failover (1G/10G) 4. Installation 4.1 Connecting the network ports 4.2 Status check 4.3 Connecting the monitoring ports 5.

  • Page 4: General Information

    1. General Information The Profitap 10GBASE-T TAP enables the monitoring of 10M/100M/1G/10G copper networks. Once the TAP is placed in the network, all traffic between the Network A and Network B ports is copied to the Monitor ports. The 10G Copper TAP seamlessly duplicates full-duplex 10M/100M/1G/10G traffic at wire speed.

  • Page 5: Visual Description

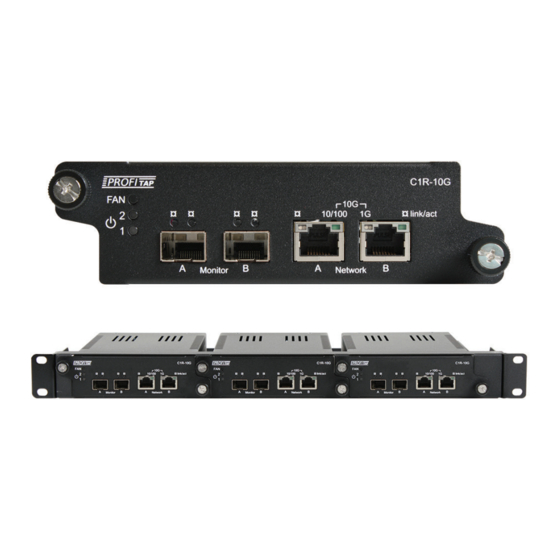

    2. Visual Description - Monitor ports (SFP+) connected to the analyzer - Network ports (RJ45 10GBASE-T) connected to the network - Monitor link/activity LEDs - Network link/activity LEDs - Network speed LEDs - Fan status LED - Power status LEDs...

  • Page 6: Functional Description

    3. Functional Description 3.1 Interface Connectors The C1R-10G Tap has 2x RJ45 10GBASE-T and 2x 10G SFP+ ports. Network ports A and B are connected to the network; Monitor ports A and B are connected to the analyzer. 3.2 Activity / Link Two LEDs indicate Activity and Link for the network ports.

  • Page 7: Power

    3.4 Power The C1R-10G TAP features two redundant power inputs, located on the back. Deploying redundant power increases the uptime of the monitor ports. Two LEDs show the presence of power, one corresponding to each power supply input. 3.5 Power Failure If power to the TAP fails, the network ports A and B are hardware wired together —...

  • Page 8: Installation

    4. Installation 4.1 Connecting the network ports 1. Power both network devices, do NOT power the TAP yet. Note: A powered TAP will always correct a wrong cable setup. 2. Connect the network using category 6 UTP cables.* a. If the two (2) network devices are of DTE and DCE type, use two (2) straight cables.

  • Page 9: Driver Installation

    Please visit www.profitap.com/resource-center/ to download the latest drivers and software. The 10GBASE-T Updater package is available for Windows 7 / 8 / 10 (32-bit and 64-bit). It contains both the 10GBASE-T TAP drivers, and the 10GBASE-T Updater software used for firmware updates.

  • Page 10: Additional Information

    7. Additional Information Ordering reference Dimensions (WxDxH) C1R-10G 120 x 205 x 41 mm 4.72 x 8.07 x 1.61 in Connectors 2 x RJ45 8 pins Weight 2 x SFP+ (10GBASE-LR/SR) 770 g 1 x USB 2.0 type B 1.70 lb 2 x 12 VDC input Operating temperature 0°C to +40°C...
  • Page 11 Warranty and Liability Profitap warrants that this product is free from defects in material and workmanship at time of shipment. The warranty period is two years from the date of purchase. Profitap...
  • Page 12 CUSTOMER SUPPORT INFORMATION To order or for technical information support: Telephone +31 (0) 40 782 0880 Mail order Profitap HQ B.V. High Tech Campus 9 5656 AE Eindhoven The Netherlands E-mail info@profitap.com Website www.profitap.com ©2021 PROFITAP — v1.1...
