High Density Fast Ethernet TAP
CUSTOMER SUPPORT INFORMATION
To order or for technical information support:
Phone: +31 (0) 40 782 0880
Mail order: Profitap HQ B.V.
High Tech Campus 84
5656AG Eindhoven - The Netherlands
Website: www.profitap.com
E-mail: info@profitap.com
Advertisement
Related Manuals for ProfiTap C20-100
Summary of Contents for ProfiTap C20-100
- Page 1 High Density Fast Ethernet TAP CUSTOMER SUPPORT INFORMATION To order or for technical information support: Phone: +31 (0) 40 782 0880 Mail order: Profitap HQ B.V. High Tech Campus 84 5656AG Eindhoven - The Netherlands Website: www.profitap.com E-mail: info@profitap.com...
- Page 2 If you have any questions, you can contact us through our website: www.profitap.com or by email: support@profitap.com For the latest documentation and software, visit our Resource Center: https://resources.profitap.com/ Page 2 www.profitap.com...
- Page 3 Index pages General Information Functional Description 2.1 Introduction 2.2 Security 2.3 Power 2.4 Power Failure 2.5 Power over Ethernet Installation Available models Additional information www.profitap.com Page 3...
-
Page 4: General Information

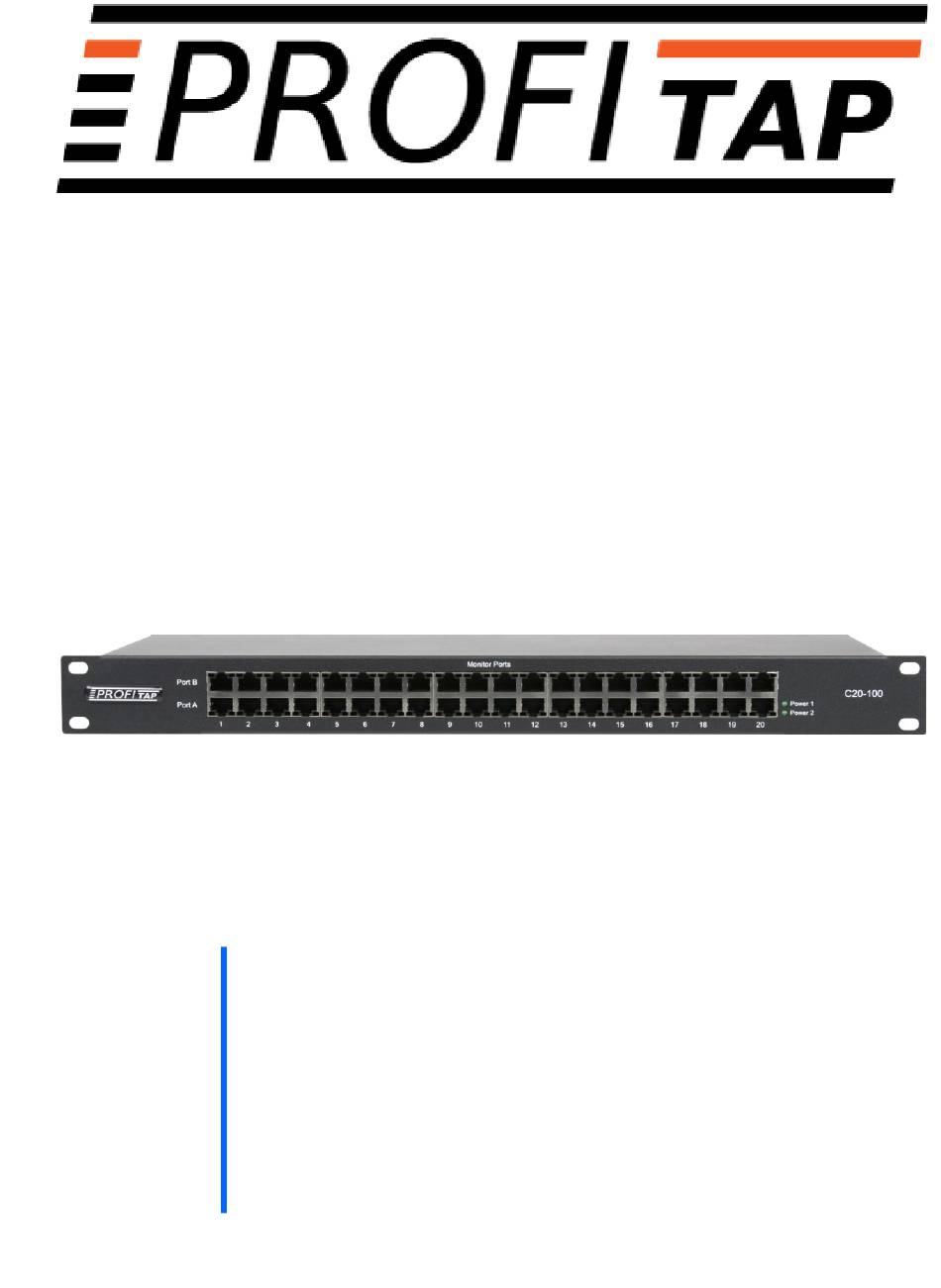

The C20-100 passes 10 or 100 Mbps traffic and PoE (802.3af) with- out interference. No active components are used in the network link, it does not introduce a point of failure. - Page 5 2. Functional description 2.1 Introduction The C20-100 tap is a multiple structure with the tap ports on the front and the network ports on the backside of the unit. Network Ports A and B are connected in the network, Tap Ports A and B are connect- ed to monitor device A respective B.
-
Page 6: Installation
TAP port A mirrors data received in Port A, TAP port B mirrors data received in Port B. Note: The maximum length between any of the connected devices should not exceed 95 meters. Cable requirements: 22-24 AWG unshielded twisted pair, CAT 5E or better. Page 6 www.profitap.com... - Page 7 45 x 140 x 445 mm Dimensions: 1.8 x 5.5 x 17.5 in Operation 0 to 50 °C Storage Temperature -22 to 70 °C Relative Humidity 10 to 90%, non-condensing MTBF 250,000 hours IEEE 802.3 IEEE 802.3af Compliance FCC class A www.profitap.com Page 7...
- Page 8 Warranty and Liability Profitap warrants that this product is free from defects in material and work- manship at time of shipment. The warranty period is 2 years from the date of purchase. The standard 2 year warranty period may be extended at the time of order.
