ProfiTap X2 Series Quick Start Manual

PSU1
QUICK START GUIDE
CAREFULLY UNPACK ALL THE ITEMS AND RETAIN THE PACKAGING FOR LATER USE
X2-2000G is shipped with the following items:
X2-2000G main unit
2 x C13 AC power cord
1 x RJ45 female to 9-pin serial adapter
1 x USB/RJ45 adapter cable
CONNECTING POWER & START UP
A
Power on the device by connecting the included AC power cord(s) to device and main power.
B
The unit starts up and boots once it is powered. You can follow its status by observing the activity LEDs.
C
BOOT SEQUENCE ~
Stage 1 (~35 secs):
Stage 2 (~2 secs):
D
NORMAL OPERATION MODE
PWR: Green if present and operational, red if PSU fault
FAN, SYS: Green if normal fan/system operation, red if fan/system fault
Front Panel
PSU1 PSU2 FAN
Rear Panel
INITIAL SETUP OVER SERIAL CONNECTION
NOTE:
If you are planning on using the device on a dynamic IP network, you can skip this step. The device will get an IP address
automatically and will be accessible via GUI or CLI with the default credentials:
User: admin
Password: Adminadmin1
X2-2000G features a serial management port, located on its rear panel [2]. Connecting through this port allows the users to make the
initial setup on the device, configuring its network interface.
SECS
SYS LED blink green, PWR LED green, FAN LED o , fans at full speed
SYS, PWR, FAN LEDs green, fans at normal speed
STAT
PPS IN-OUT
MGMT
LINK ACT
CTRL 1
CTRL 2
CONSOLE
RESET
1 x RJ45 cable
1 x rack mounting kit (front and
rear brackets, screws)

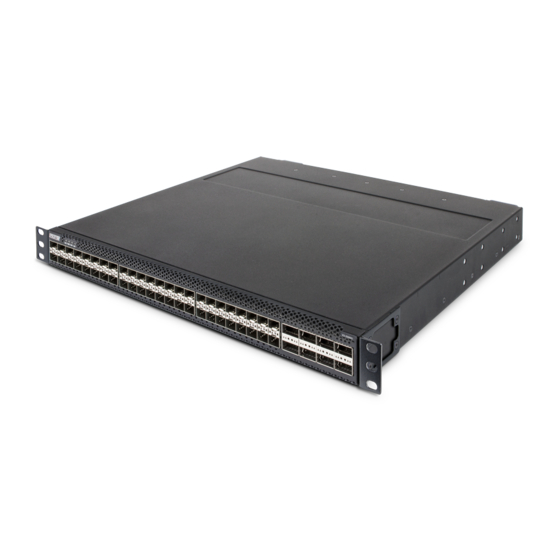

X2-2000G
X2-2000G is designed to be rack
mounted. Make sure the unit is
properly grounded and secured in
the rack using the included screws
and pre-mounted brackets.
SYS PWR FAN LOC
X2-2000G
PPS IN-OUT
MGMT
LINK ACT
CTRL 1
CTRL 2
CONSOLE
RESET
[1]
[2]
