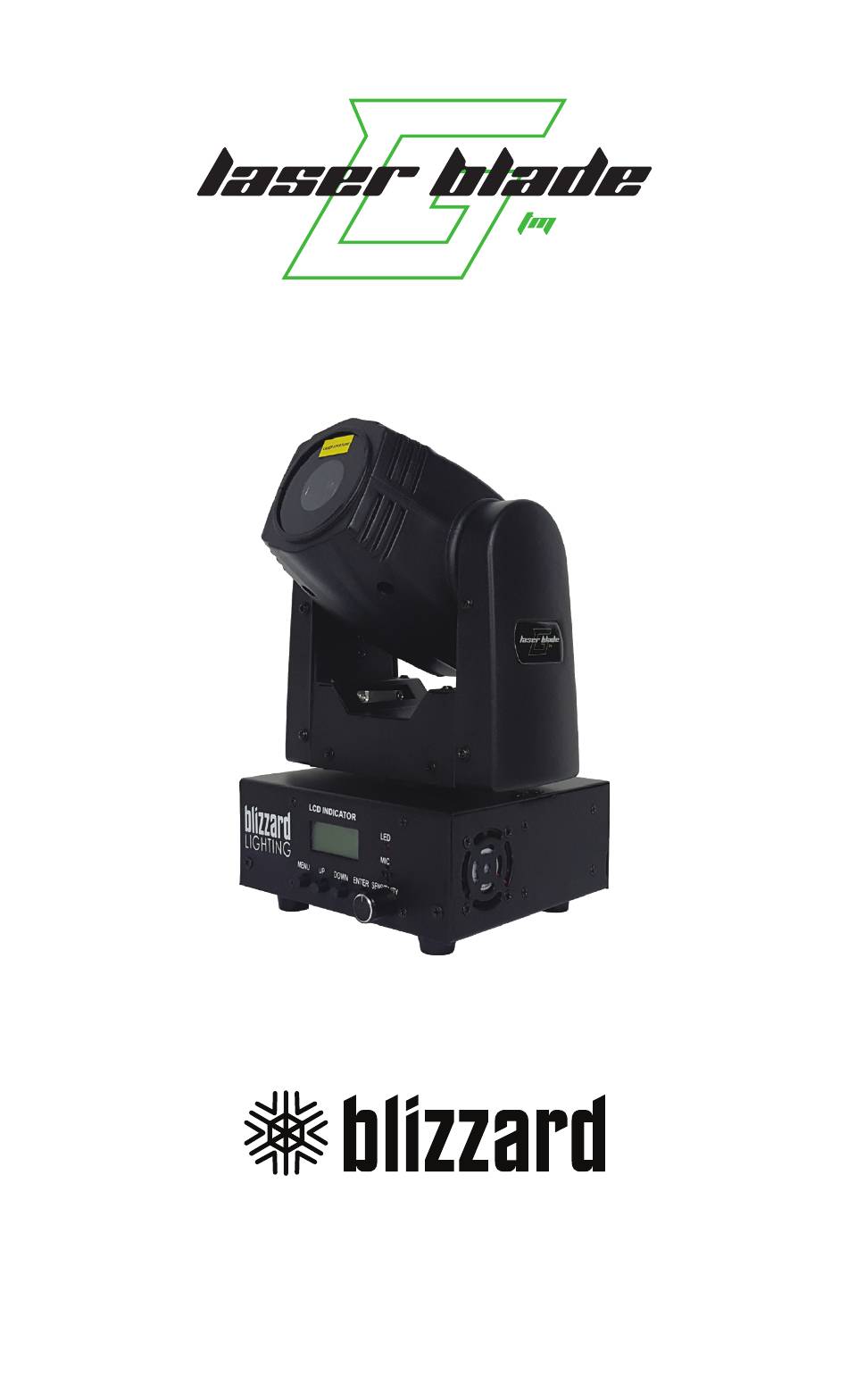

- Page 1 Blizzard Lighting, LLC http://www.blizzardpro.com Waukesha, WI USA Copyright (c) 2020...
-
Page 2: Table Of Contents
Mirror Symmetry Mode Running Mode Settings Graphic Mode Settings Speed Settings 5. Appendix Keeping Your Laser Blade™ G As Good As New Returns (Gasp!) Shipping Issues Tech Specs! Page 2 Laser Blade™ G Manual - Rev. B © 2020 Blizzard Lighting, LLC... -
Page 3: Getting Started
Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time. You can download the latest version of this document from www.blizzardpro.com. -
Page 4: Laser Safety Instructions
The legal requirements for using laser entertainment products vary from country to country. The user is responsible for the legal requirements at the location/ country of use. Page 4 Laser Blade™ G Manual - Rev. B © 2020 Blizzard Lighting, LLC... -
Page 5: Meet The Laser Blade™ G
Group 2, Pattern Selection Group 2, OFF/ON 2 Groups Animation Moving-X Moving-Y X-Axis Rotation Y-Axis Rotation Rotation Zoom In/Out Sine Wave Fluctuation Fluctuation Speed Auto Dot (Slow <--> Fast) Page 5 Laser Blade™ G Manual - Rev. B © 2020 Blizzard Lighting, LLC... -

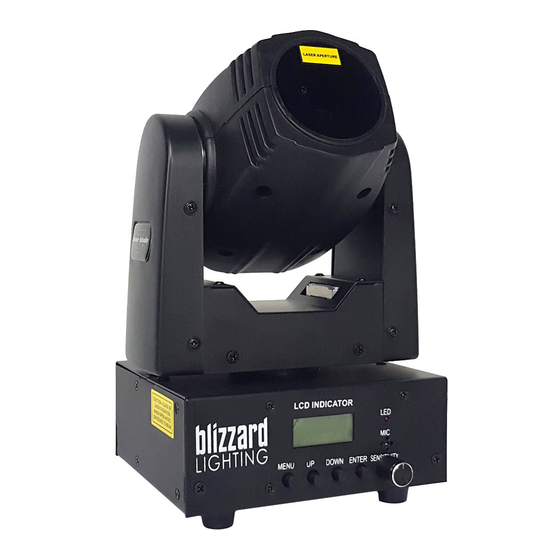

Page 6: Laser Blade™ G Pin-Up Picture
Laser Blade™ G Pin-Up Picture Head/Arms Laser Output (Aperture) Control Panel LED Indicator Microphone Mic Sensitivity The Rear Connections Power Switch DMX Input Power In DMX Output Page 6 Laser Blade™ G Manual - Rev. B © 2020 Blizzard Lighting, LLC... -
Page 7: Setup
The fuse is field replaceable, however it is an advanced procedure suited to qualified individuals. Should the fuse require replacement, please contact Blizzard Lighting for instructions, or to return your unit for service. Connecting A Bunch of Laser Blade™ G Fixtures... -
Page 8: Cable Connectors
Place a DMX Next terminator on the output of the final fixture to Fixture ensure best communication. in Chain DMX IN DMX OUT Page 8 Laser Blade™ G Manual - Rev. B © 2020 Blizzard Lighting, LLC... -
Page 9: Fixture Linking (M/S Mode)
If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury. Page 9 Laser Blade™ G Manual - Rev. B © 2020 Blizzard Lighting, LLC... -
Page 10: Operating Adjustments
<ENTER> button to select the menu function currently displayed, or to enable a menu option. To return to the previous option or menu without changing the value, press the <MENU> button. Page 10 Laser Blade™ G Manual - Rev. B © 2020 Blizzard Lighting, LLC... -
Page 11: Control Panel Menu Structure
Speed Settings 1.) Navigate the menu to reach Speed Set, and press <ENTER>. 2.) Use the <UP/DOWN> buttons to adjust the speed settings, then press <ENTER>. Page 11 Laser Blade™ G Manual - Rev. B © 2020 Blizzard Lighting, LLC... - Page 12 Auto to right moving 193 <--> 224 Auto to left/right moving 225 <--> 239 Jumping 240 <--> 247 Rhombus shape moving 248 <--> 255 Top left/right moving Page 12 Laser Blade™ G Manual - Rev. B © 2020 Blizzard Lighting, LLC...
- Page 13 Use Only DMX cables and/or check cables for defects. Erratically Install a Terminator. Reset fixture(s). If your problem isn’t listed, or if problems persist, please open a support ticket at www.blizzardpro.com/support. Page 13 Laser Blade™ G Manual - Rev. B © 2020 Blizzard Lighting, LLC...
-
Page 14: Appendix
Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 14 Laser Blade™ G Manual - Rev. B © 2020 Blizzard Lighting, LLC... -
Page 15: Tech Specs
USITT DMX-512 DMX Channels 18-channel Input 3-pin XLR Male Output 3-pin XLR Female Sound Active, Auto-Beam, Auto-Animation, Other Operating Modes DMX512, Master/Slave Warranty 2-year limited warranty Page 15 Laser Blade™ G Manual - Rev. B © 2020 Blizzard Lighting, LLC... - Page 16 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
