Summary of Contents for Blizzard Lighting Laser Blade G

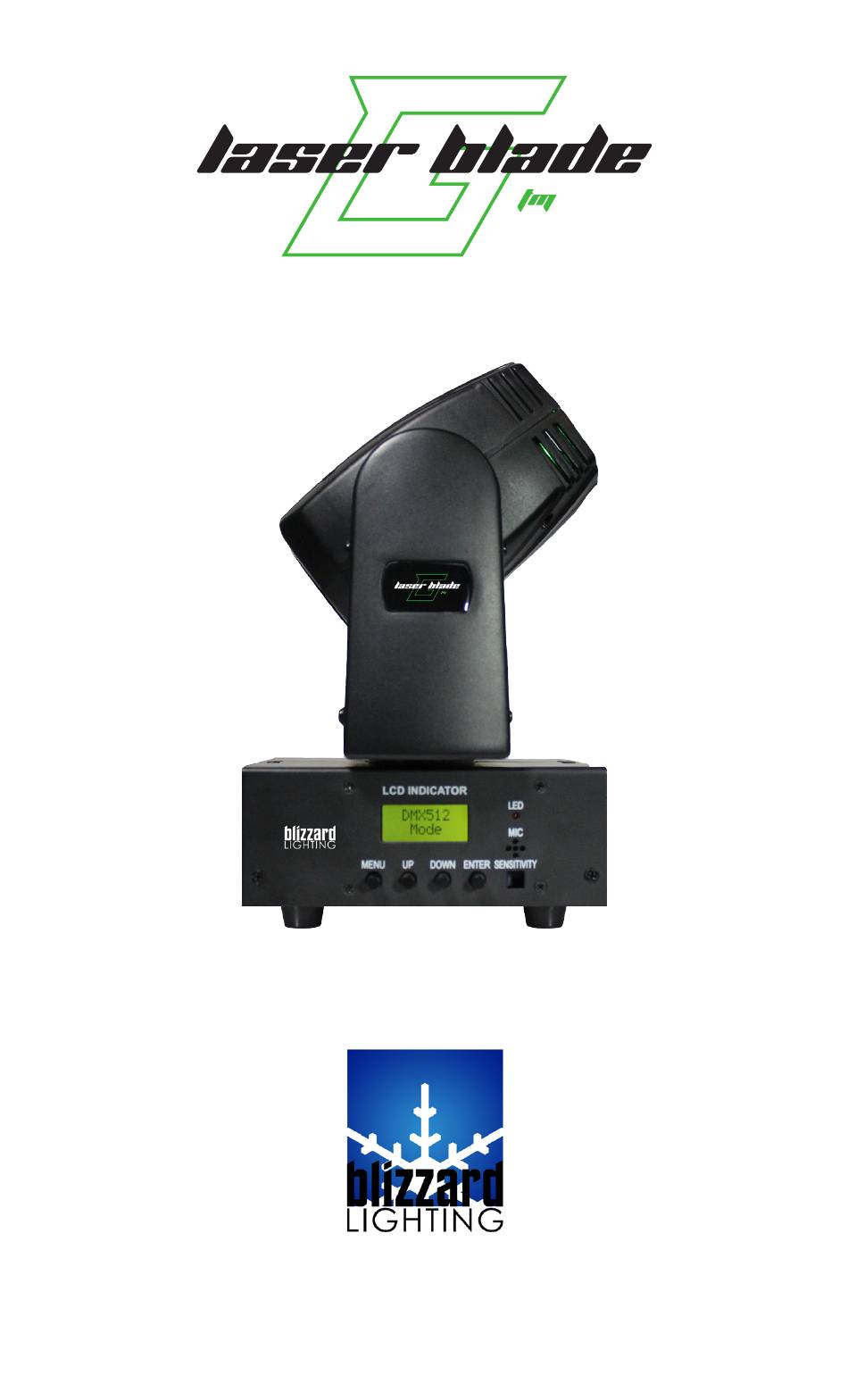

- Page 1 Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2015...
-
Page 2: Table Of Contents
DMX Channel Values In-Depth Troubleshooting 5. Appendix A Quick DMX Lesson Keeping Your Laser Blade™ G As Good As New Returns (Gasp!) Shipping Issues Tech Specs Page 2 Laser Blade™ G User Manual Rev. A © Copyright 2015 Blizzard Lighting, LLC... -
Page 3: Laser Blade™ G
Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time. -
Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)
The legal requirements for using laser entertainment products vary from country to country. The user is responsible for the legal requirements at the location/ country of use. Page 4 Laser Blade™ G User Manual Rev. A © Copyright 2015 Blizzard Lighting, LLC... -
Page 5: Meet The Laser Blade™ G
Group 2, OFF/ON 2 Groups Animation Moving-X Moving-Y X-Axis Rotation Y-Axis Rotation Rotation Zoom In/Out Sine Wave Fluctuation Fluctuation Speed Auto Dot (Slow <--> Fast) Page 5 Laser Blade™ G User Manual Rev. A © Copyright 2015 Blizzard Lighting, LLC... -
Page 6: The Laser Blade™ G Pin-Up Picture
DMX Signal Indicator Microphone 4-Button LCD Control Panel Mic Sensitivity Adjustment Figure 2: The Rear Connections DMX Input AC Power DMX Output Input Power Switch Page 6 Laser Blade™ G User Manual Rev. A © Copyright 2015 Blizzard Lighting, LLC... -
Page 7: Setup
Maximum capacitance between conductors – 30 pF/ft. Maximum capacitance between conductor & shield – 55 pF/ft. Maximum resistance of 20 ohms / 1000 ft. Nominal impedance 100 – 140 ohms Page 7 Laser Blade™ G User Manual Rev. A © Copyright 2015 Blizzard Lighting, LLC... -
Page 8: Cable Connectors
Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 Laser Blade™ G User Manual Rev. A © Copyright 2015 Blizzard Lighting, LLC... -
Page 9: Fixture Linking (Master/Slave Mode)
After finding the desired position, retighten both knobs. • When selecting installation location, take into consideration lamp replacement access (if applicable) and routine maintenance. • Safety cables MUST ALWAYS be used. Page 9 Laser Blade™ G User Manual Rev. A © Copyright 2015 Blizzard Lighting, LLC... -
Page 10: Operating Adjustments
Press the <ENTER> button to select the menu function currently dis- played, or to enable a menu option. To return to the previous option or menu, press the <MENU> button. Page 10 Laser Blade™ G User Manual Rev. A © Copyright 2015 Blizzard Lighting, LLC... -
Page 11: Control Panel Menu Structure
2.) On fixtures you want to set as slave fixtures, navigate the menu(s) using the <UP/DOWN> buttons until you reach Work Mode Set. 3.) Push the <ENTER> button. 4.) Use the <UP/DOWN> buttons to reach Slave. Then press <ENTER>. Page 11 Laser Blade™ G User Manual Rev. A © Copyright 2015 Blizzard Lighting, LLC... -
Page 12: Mirror Symmetry Mode
1.) Navigate the menu using the <UP/DOWN> buttons until you reach Speed Set. 2.) Push the <ENTER> button. 3.) Use the <UP/DOWN> buttons to adjust incremental speed settings. 4.) Press the <ENTER> button to confirm. Page 12 Laser Blade™ G User Manual Rev. A © Copyright 2015 Blizzard Lighting, LLC... -
Page 13: Dmx Channel Values In-Depth
Auto to right moving 193 <--> 224 Auto to left/right moving 225 <--> 239 Jumping 240 <--> 247 Rhombus shape moving 248 <--> 255 Top left/right moving Page 13 Laser Blade™ G User Manual Rev. A © Copyright 2015 Blizzard Lighting, LLC... -
Page 14: Troubleshooting
Use Only DMX cables and/or check cables for defects. Erratically Install a Terminator. Reset fixture(s). If your problem isn’t listed, or if problems persist, please open a support ticket at www.blizzardlighting.com/support. Page 14 Laser Blade™ G User Manual Rev. A © Copyright 2015 Blizzard Lighting, LLC... -
Page 15: Appendix
It is flexible, robust, and scalable, and its ability to control everything from dimmer packs to moving lights to foggers to lasers makes it an indispensable tool for any lighting designer or lighting performer. Page 15 Laser Blade™ G User Manual Rev. A © Copyright 2015 Blizzard Lighting, LLC... -
Page 16: Keeping Your Laser Blade™ G As Good As New
Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 16 Laser Blade™ G User Manual Rev. A © Copyright 2015 Blizzard Lighting, LLC... -
Page 17: Tech Specs
3-pin XLR Female Sound Active, Auto-Beam, Auto-Animation, Other Operating Modes DMX512, Master/Slave Other Information Frowny wink wins for most confusing emoji ;( Warranty 2-year limited warranty Page 17 Laser Blade™ G User Manual Rev. A © Copyright 2015 Blizzard Lighting, LLC... - Page 18 This page intentionally left blank.
- Page 19 This page intentionally left blank.
- Page 20 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
