CoreTigo TigoMaster 2TH User Manual

Hide thumbs Also See for TigoMaster 2TH:
Table of Contents

Advertisement

Quick Links

Download this manual

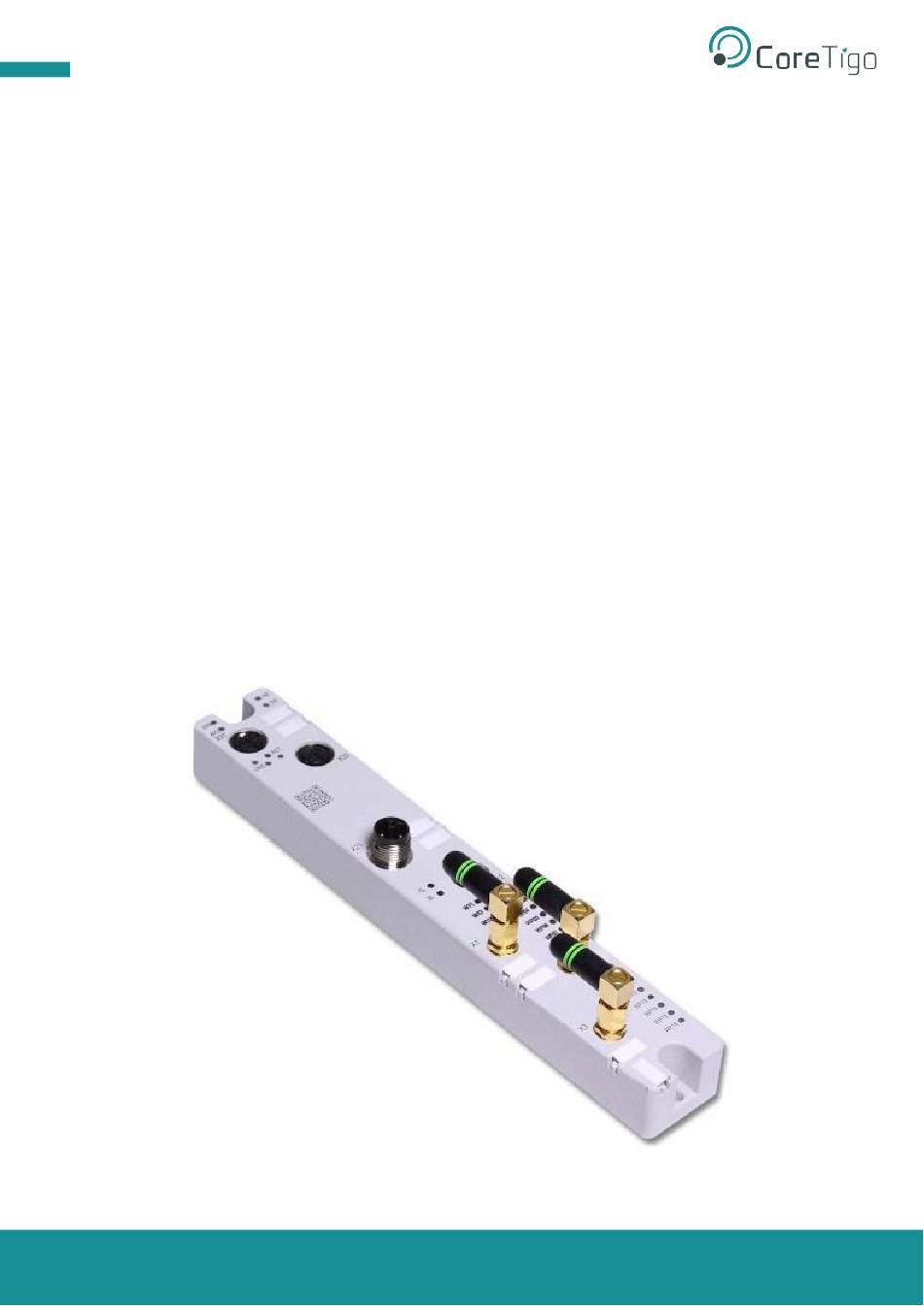

TigoMaster 2TH User Manual
CoreTigo
TigoMaster 2TH
User Manual
Revision 1.1
Page 1 of 36
Copyright © 2020 CoreTigo Ltd.
CONFIDENTIAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TigoMaster 2TH and is the answer not in the manual?

Questions and answers

Related Manuals for CoreTigo TigoMaster 2TH

Summary of Contents for CoreTigo TigoMaster 2TH

  • Page 1 TigoMaster 2TH User Manual CoreTigo TigoMaster 2TH User Manual Revision 1.1 Page 1 of 36 Copyright © 2020 CoreTigo Ltd. CONFIDENTIAL...

  • Page 2: Table Of Contents

    TigoMaster 2TH User Manual Table of Contents Introduction ..............................5 About this document ............................. 5 Device description ............................5 Functional description ........................... 5 Regulatory Notices ............................6 FCC ................................6 Class B Warnings ............................6 FCC Warning ..............................6 ISED Warning ............................... 6 Interference statement ...........................
  • Page 3 Dimensions ............................... 37 7.1 Dimensions TigoMaster 2TH ........................ 37 Table of Figures Figure 1 - Positions of interface connectors and LEDs, TIGOMASTER 2TH ......... 8 Figure 2 - TigoEngine IO-Link Wireless TigoMaster 2TH dimensions ..........37 Page 3 of 36 Copyright ©...
  • Page 4 TigoMaster 2TH User Manual Table of Tables Table 1 - Positions of interface connectors and LEDs, TIGOMASTER 2TH ............9 Table 2 - Hardware ..............................10 Table 3 - Software ..............................10 Table 4 - Firmware ..............................10 Table 5 - Power supply ............................11 Table 6 - Ethernet ..............................

  • Page 5: Introduction

    Introduction About this document This document describes the device TigoMaster 2TH IO-Link Wireless Master. The device and the firmware are under development and changes of the functionality can appear. The information provided in this document is preliminary, may not be complete and may not be error free.

  • Page 6: Regulatory Notices

    TigoMaster 2TH User Manual Regulatory Notices FCC ID: 2ATSM-COR2TH CAUTION: Any changes or modifications not expressly approved by (CoreTigo Ltd.) could void the user’s authority to operate the equipment. Class B Warnings The FCC Wants You to Know This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.

  • Page 7: Wireless Notice

    TigoMaster 2TH User Manual Wireless notice This device complies with FCC/ISED radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS‐102 of the ISED radio frequency (RF) Exposure rules. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
  • Page 8 TigoMaster 2TH User Manual IC warning Professional installation instruction Installation Ce produit est destine a un usage specifique et doit etre installe par un personnel qualifie maitrisant les radiofrequences et les regles s’y rapportant. L’installation et les reglages ne doivent pas etre modifies par l’utilisateur final.

  • Page 9: Device Overview

    TigoMaster 2TH User Manual Device overview Figure 1 - Positions of interface connectors and LEDs, TIGOMASTER 2TH Page 9 of 36 Copyright © 2020 CoreTigo Ltd. CONFIDENTIAL...

  • Page 10: Table 1 - Positions Of Interface Connectors And Leds, Tigomaster 2Th

    TigoMaster 2TH User Manual Table 1 - Positions of interface connectors and LEDs, TIGOMASTER 2TH Function Pos. Name Description For details see section Ethernet [ Ethernet (26) Ethernet interface, M12, D-coded, EtherNet/IP port 1 (CH0) Ethernet interface, M12, D-coded, EtherNet/IP port 2 (CH1)

  • Page 11: Revisions And Versions

    EtherNet/IP Adapter U197H001.nxi Identification On the front side of the TIGOMASTER 2TH device housing a 2D data matrix code (DM code, 10x10 mm) is provided, which includes the part number, hardware revision and serial number for device identification. For identifying the data matrix code see position (21) in section Device overview TIGOMASTER 2TH [} page 6].

  • Page 12: Connectors And Interfaces

    For identifying the connector X21 on the board, see position (20), and connector X22, see position (8) in section Device overview TigoMaster 2TH- [page 6]. Table 5 - Power supply PWR IN...

  • Page 13: Ethernet

    Connector X32 for Ethernet interface port 2 (CH1) For identifying the connector X31 on the board, see position (26), and connector X32, see position (6) in section Device overview TigoMaster 2TH- [page 6]. Connectors X31 and X32 Table 6 - Ethernet...

  • Page 14: Io-Link, Sma Antenna

    TigoMaster 2TH User Manual IO-Link, SMA antenna With the TIGOMASTER 2TH device two tracks with each up to 8 and together up to 16 IO-Link wireless devices simultaneously can be supported. IO-Link The type of data transferred (length and data type, etc.) depends on the connected IO-Link Slaves.

  • Page 15: Safety

    1.2 Intended use The device EtherNet/IP IO-Link Wireless Master TIGOMASTER 2TH is used to acquire and output field signals via IO-Link to sensors, actuators and hubs that are sent or received to a higher-level control system.

  • Page 16: Information And Data Security

    Take all usual measures for information and data security for devices with Ethernet technology. CoreTigo explicitly points out that a device with access to a public network (Internet) must be installed behind a firewall or only be accessible via a secure connection such as an encrypted VPN connection.

  • Page 17: Mounting And Demounting

    TigoMaster 2TH User Manual 2. Mounting and demounting 2.1 Mounting Required tools for mounting the device You will need the following tools for mounting: Allen key for the M4 fixing screws with hexagon socket Only additionally required for installation without existing threaded hole:...
  • Page 18 TigoMaster 2TH User Manual Ensure that the requirements of the device for vibration and shock resistance are met at the installation site. Mount the device so that the diagnostic LEDs of the device remain visible. Observe the following instructions for the installation procedure: Disconnect the system from the power supply before you start installation.

  • Page 19: Grounding

    TigoMaster 2TH User Manual After mounting Observe the notes on Grounding page 14]. Mounting of the SMA antennas Important: For proper device operation, all three SMA antennas X1, X2 and X3 must be mounted. 2.2 Grounding Functional earth The L-coded M12 connectors of the device's power supply have a pin FE (functional earth), which is connected to the metal housing of the device.
  • Page 20 TigoMaster 2TH User Manual Use the Allen key to loosen the two M4 cylinder head screws. Remove the device. After demounting If the demounted device is defective, mark it as defective to prevent the device from being used again. Page 20 of 36 Copyright ©...

  • Page 21: Configuration

    Note: Each time Ethernet/IP communication is started, the Ethernet/IP Scanner transmits the configuration and parameters to the TIGOMASTER 2TH device. Port configuration parameters set by the TigoEngine or the OPC UA Client are overwritten. The parameters via Ethernet/IP have priority.

  • Page 22: Configuring Ethernet/Ip

    TigoMaster 2TH User Manual 3.2 Configuring EtherNet/IP In order that the EtherNet/IP Scanner and the EtherNet/IP Adapter exchanges process data, the EtherNet/IP Scanner must be configured. Therefore, you need the device description file (EDS file) of the TigoEngine: CORETIGO_TIGOENGINE_V1.1_IOL_W.EDS Perform the following steps: Import the EDS file into the configuration software of the EtherNet/IP Scanner.

  • Page 23: Selecting A Connection

    TigoMaster 2TH User Manual 3.3 Selecting a connection The TigoEngine device offers several types of connections: Exclusive owner: The Scanner can read input process data and write output process data. Input only: The Scanner can read input process data only.

  • Page 24: Setting Parameters

    TigoMaster 2TH User Manual 3.4 Setting parameters If using connection 1 the following parameters must be set. Table 10 - Parameters 10 to 85 Parameter name Value range Default Description 10, 20, … Port mode Deactivated Deactivated The port is inactive. L+ is turned off, Input and Output Process Data is 0.

  • Page 25: Table 12 - Parameters 410 To 566

    TigoMaster 2TH User Manual Table 12 - Parameters 410 to 566 Parameter name Value range Default Description 0 … 255 410, 430 Slot number Wireless slot number to be used for the port … 0 … 255 Track number Wireless track number to be used for the port 0 …...

  • Page 26: Configuration And Parameterization Via Tigoengine

    TigoMaster 2TH User Manual 3.5 Configuration and parameterization via TigoEngine To Learn how to configure the TigoMaster 2TH please refer to the TigoEngine user manual. 3.6 OPC UA The device contains an OPC UA server. An OPC UA client can establish a connection to the device and...

  • Page 27: Device Identification

    TigoMaster 2TH User Manual 3.7 Device identification The device provides nodes for device identification. For example, the OPC UA client can read the version of the device firmware used in the SoftwareRevisionnode. The path to these nodes is Root > Object > DeviceSet > [Devicename]...

  • Page 28: Communication

    TigoMaster 2TH User Manual 4. Communication 4.1 Process data This section describes the process data for Connection 1 (Exclusive Owner - 32 bytes per IO-Link Port with Config) Connection 2 (Exclusive Owner - 32 bytes per IO-Link Port without Config) The process data of the digital inputs and outputs have a fixed size of 276 Byte.
  • Page 29 TigoMaster 2TH User Manual Byte Number Output process data Description of bytes 1 byte Padding byte Do not use 177 … 208 32 byte IO-Link port 6 process output IO-Link output data of the sensor/actor connected to Port 6. data For a description of the data, see manual of the manufacturer of the used sensor/actor.
  • Page 30 TigoMaster 2TH User Manual Byte Number Input process data Description of bytes 75 … 106 IO-Link input data of the sensor/actor connected to Port 32 byte IO-Link port 3 process input data 3. For a description of the data, see manual of the manufacturer of the used sensor/actor.

  • Page 31: Diagnosis

    TigoMaster 2TH User Manual 5. Diagnosis 5.1 Diagnosis via LEDs 5.1.1 System LED The system status LED SYS can assume the states described below. Color State Description Duo-LED: yellow RDY / green RUN The firmware is running. green) Blinking During the formatting of the file system (green) A system error has occurred.

  • Page 32: Apl Led

    TigoMaster 2TH User Manual 5.1.2 APL LED The application LED APL indicates the internal communication status as described below. Color State Description Duo LED red/green/yellow (yellow = red and green simultaneously) IO-Link Wireless Master configured (green) Blinking IO-Link Wireless Master communication established...

  • Page 33: Ethernet/Ip Adapter Status

    TigoMaster 2TH User Manual 5.1.4 EtherNet/IP Adapter status The MS and NS LEDs indicate the status of the EtherNet/IP Adapter. The LNK and ACT LEDs indicate the status of the Ethernet. EtherNet/IP Adapter status The following table describes the LED states of the EtherNet/IP Adapter.

  • Page 34: Table 14 - Led States Ethernet/Ip

    TigoMaster 2TH User Manual Table 14 - LED states EtherNet/IP LED state Definition The indicator turns on and off with a frequency of 1 Hz: “on” for 500 ms, followed by Flashing (1 Hz) “off” for 500 ms. Flashing green/red/ green The MS LED indicator turns on green on for 250 ms, then red on for 250 ms, then green on (until the test is completed).

  • Page 35: Wireless Track Status

    TigoMaster 2TH User Manual 5.2 Wireless track status The wireless track status LEDs WT1 … WT3 indicate the states for the wireless tracks 1, 2 and 3 as described below. Table 17 - Wireless track status WT1 … WT3 Color...

  • Page 36: Technical Data

    TigoMaster 2TH User Manual 6. Technical data Table 19 - Technical data TIGOMASTER 2TH Category Parameter Value Product Part number 1912.122 Product name TIGOMASTER 2TH Description TigoEngine EtherNet/IP IO-Link Wireless Master • IO-Link Master Wireless for EtherNet/IP Function • 2 tracks, 16 channels •...
  • Page 37 TigoMaster 2TH User Manual Category Parameter Value Ambient conditions Operating temperature range -25 °C ... +55 °C Storage temperature range -40 °C ... +85 °C Max. temperature change 3 K / min 10 … 95% relative humidity, no condensation permitted Humidity 0 …...

  • Page 38: Dimensions

    TigoMaster 2TH User Manual 7. Dimensions 7.1 Dimensions TigoMaster 2TH Figure 2 - TigoEngine IO-Link Wireless TigoMaster 2TH dimensions Page 38 of 36 Copyright © 2020 CoreTigo Ltd. CONFIDENTIAL...
