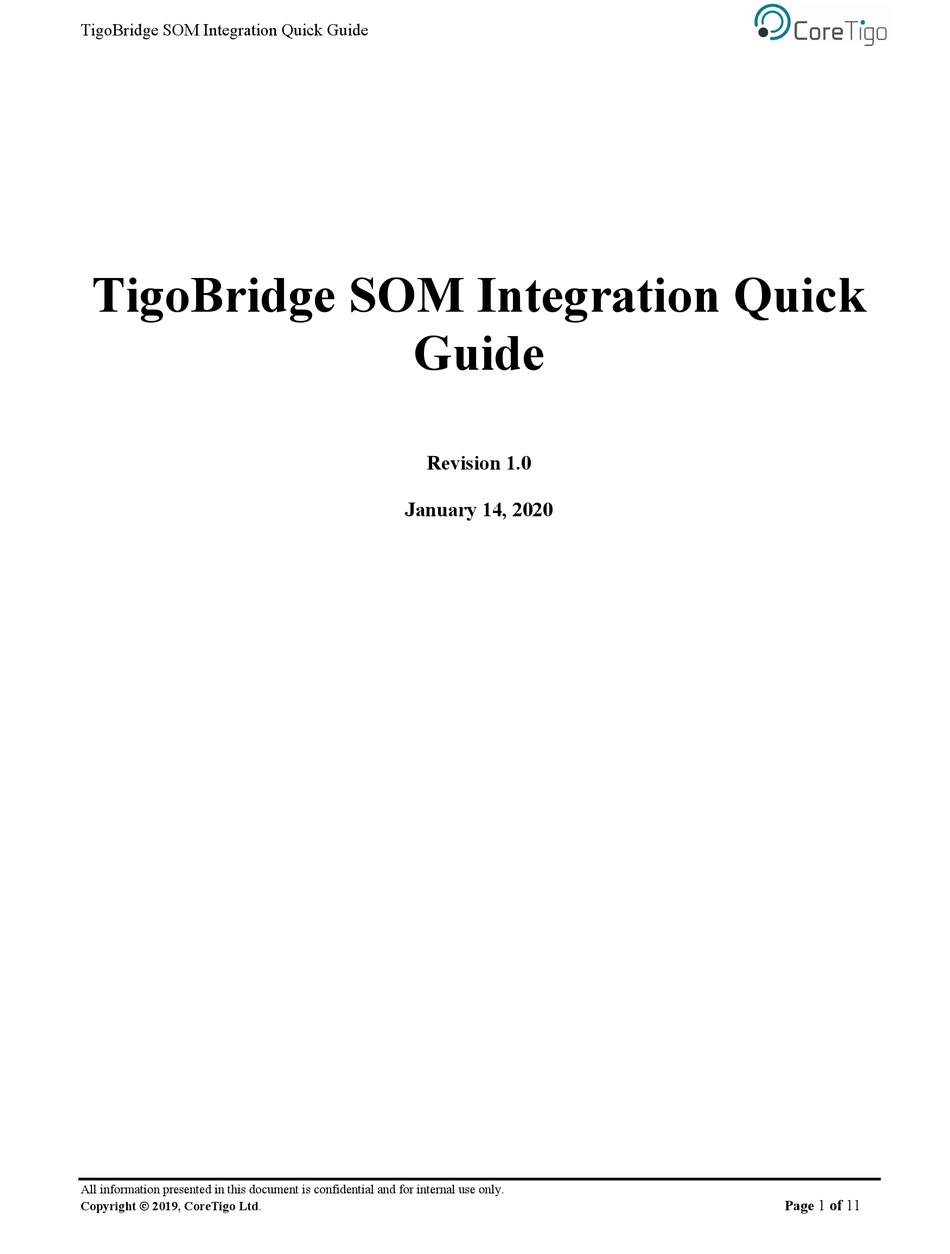

- Page 1 TigoBridge SOM Integration Quick Guide TigoBridge SOM Integration Quick Guide Revision 1.0 January 14, 2020 All information presented in this document is confidential and for internal use only. 1 of 11 Copyright 2019, CoreTigo Ltd. Page...
-
Page 2: Table Of Contents
Approval Table ..........................3 Revision Control ..........................3 Glossary/Abbreviations........................3 Overview ........................... 4 Objective ..........................4 TigoBridge SOM Integration folder content ..............4 Mechanical design ........................5 TigoBridge SOM dimensions .................... 5 Antenna connection ......................6 Placing the BTB connectors ....................7 Electrical design ........................ -
Page 3: Approval Table
TigoBridge SOM Integration Quick Guide Approval Table Role Name Version Date Written By Yaniv Yardeni 13/01/20 Reviewed By Approved By Revision Control Author Name Description Revision Date Yaniv Yardeni Creation 03/01/20 Glossary/Abbreviations Term Definition System on Module Board to board... -
Page 4: Overview
TigoBridge SOM Integration Quick Guide 1 Overview 1.1 Objective This document describes the design process for integration TigoBridge SOM on top of a Carrier board. The process of integrating TigoBridge SOM includes the following steps: 1. Mechanical design: a. Placing the BTB connectors in the correct positions. -
Page 5: Mechanical Design
TigoBridge SOM Integration Quick Guide 2 Mechanical design 2.1 TigoBridge SOM dimensions Please consider TigoBridge SOM dimension in your design: Height = 7mm Figure 1: TigoBridge SOM height Length = 30mm Figure 2: TigoBridge SOM length All information presented in this document is confidential and for internal use only. -
Page 6: Antenna Connection
TigoBridge SOM Integration Quick Guide Width = 20mm Figure 3: TigoBridge SOM width Kindly implement TigoBridge SOM STEP file provided into your mechanical design, please mind: 1. Location of the BTB connectors 2. Height constrains between TigoBridge SOM board to the host board 3. -
Page 7: Placing The Btb Connectors
TigoBridge SOM Integration Quick Guide 2.3 Placing the BTB connectors For placing the Molex BTB connector in the exact correct location, please use TigoBridgeMatingBoard DXF file as a reference for your design and place the connector exactly as in the DXF file. -
Page 8: Electrical Design
TigoBridge SOM Integration Quick Guide 3 Electrical design 3.1 BTB connectors schematics Figure 5: BTB connectors schematics 3.1.1 Pinout description Table 1: BTB connector pinout Connector Pin number Pin name Description 1,3,5 IO Link Con L+ power supply for the IO-Link... -
Page 9: Application And Implementation
Connect all J2 GND Pins to the power supply input GND, make sure trace width or plane width satisfy the current consumption requirement of the IOL Device + TigoBridge SOM Input voltage should be in the range of 18-32 [Vdc] Figure 6: Input power supply schematic 3.1.2.2 Connecting IOL Device... - Page 10 TigoBridge SOM Integration Quick Guide 3.1.2.3 Pairing button Pairing button should work according to the following functionality: Table 2: Pairing button functionality State Input Pressed 3.3V Open Figure 8: Pairing button schematic Note: Do not use J2 Pin for power suppling the pairing button 3.1.2.4 RGB Led...
- Page 11 TigoBridge SOM Integration Quick Guide 3.1.2.5 Power indication Led Power indication Led should be connected and work as follow: Figure 10: Power Led indication schematic Table 4: Power Led indication functionality State Pin name Pin input (From TigoBridge SOM) Power ON...
