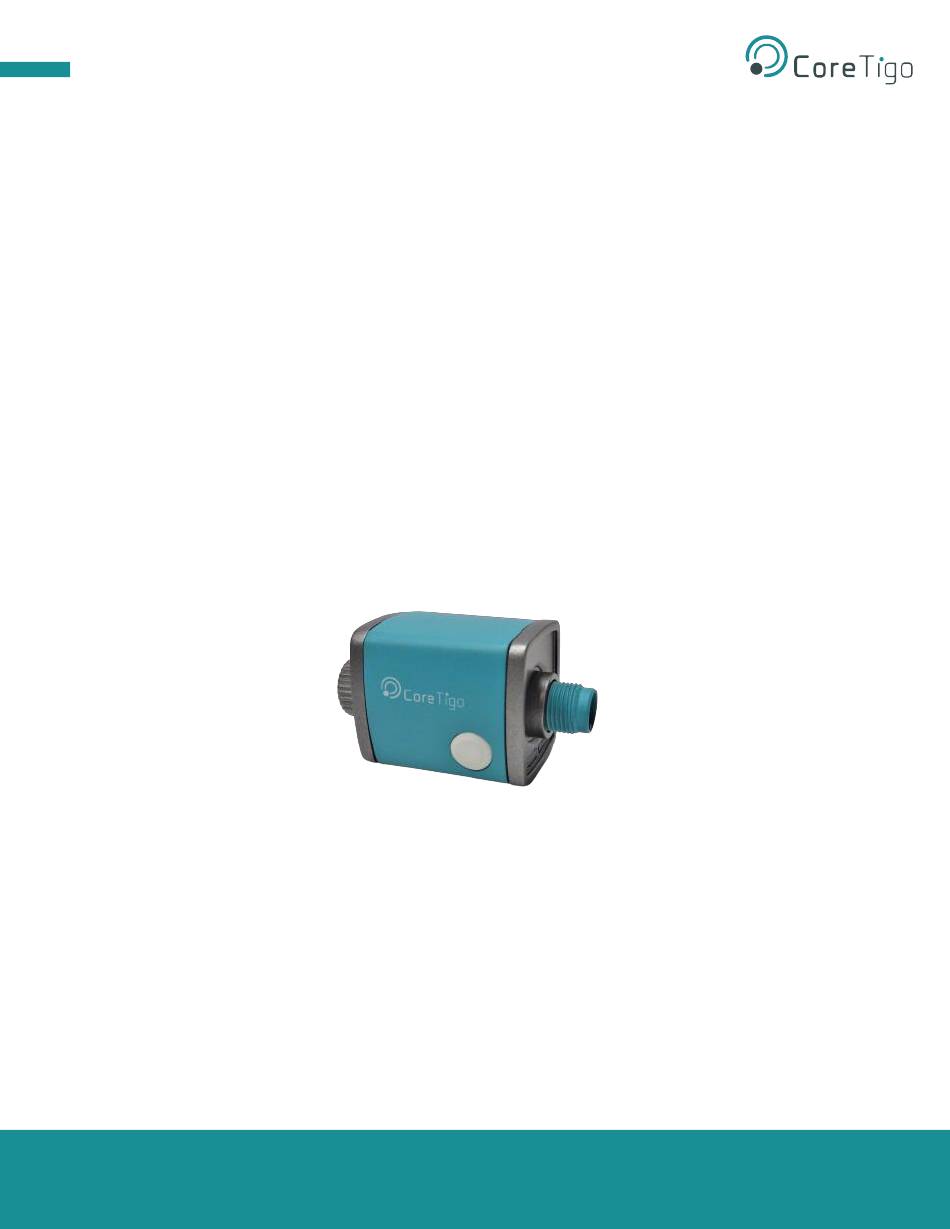

- Page 1 TigoBridge B1 User Manual CoreTigo TigoBridge B1 ANUAL Page 1 of 21 Copyright © 2021 CoreTigo Ltd.
-
Page 2: Table Of Contents
Pair by Button ..........................11 4.5. Electrical Wiring........................... 11 4.6. Electrical Connection ........................12 Mounting ............................12 5.1. TigoBridge B1 Cradle ........................12 Configuration & Setup ........................13 Firmware Update ..........................15 Diagnostics and Troubleshooting ....................16 8.1. Power LED ..........................16 8.2. - Page 3 Figure 6: Electrical Schematic Diagram ...................... 12 Figure 7: Cradle Dimensions........................12 Figure 8: TigoBridge B1 and Cradle ......................13 Figure 9: TigoBridge B1 Mounted on the Cradle ..................13 Figure 10: TigoEngine Scanning Mode ....................... 14 Figure 11: TigoEngine Pairing Process ...................... 14 Figure 12: TigoEngine Operate Mode ......................
- Page 4 TigoBridge B1 User Manual Acronyms and Abbreviations Acronyms and abbreviations used in this document are listed in this table: Symbol Meaning Firmware Hardware Interface IOLW IO-Link Wireless Light-Emitting Diode Software Unique ID Page 4 of 21 Copyright © 2021 CoreTigo Ltd.
-
Page 5: Introduction
TigoBridge B1 is an IO-Link to IO-Link Wireless, Class B convertor. TigoBridge can convert any IO-Link device to IO-Link Wireless as long as it is IO-Link certified. Read the manual carefully before using the device. -
Page 6: Symbols
Technical capabilities on behalf of the user are presumed. 2.2. Electrical Connection The TigoBridge B1 shall be supplied by an isolated power source that meets the following requirements: • Limited-Energy Circuit in accordance with UL/CSA 61010-1 •... -
Page 7: Personnel Qualification
• Evaluation of the safety of electrical systems and equipment Warning: CoreTigo Ltd. does not assume any warranty or liability for damage caused to the product due to non-compliance with security measures or incorrect product installation. Page 7 of 21... -
Page 8: Requirements
TigoBridge B1 User Manual Requirements TigoBridge B1 is implemented based on the IO-Link Wireless standard for W-Bridge devices. TigoBridge B1 is part of an IO-Link Wireless environment. It communicates with an IO-Link Wireless master. Therefore, to use it, you need an IO-Link Wireless master, IO-Link device, and a power cable. See the illustration. -
Page 9: Pre-Installation
4.1. Description An IO-Link device can be connected to a TigoBridge B1 directly or using an M12 cable. TigoBridge B1 can be connected to an IO-Link Wireless Master by TigoEngine, Integrated web server tool, or PLC. Each IO-Link Wireless master can operate up to 16 TigoBridges. -
Page 10: 4.2.1. Functional Diagram
TigoBridge B1 User Manual 4.2.1. Functional Diagram Figure 4: TigoBridge B1 Functional Diagram Device Connector Pairing Button Power Supply Connector Power LED (Green) Status LED (RGB) 4.3. LEDS Figure 5: TigoBridge B1 LEDs Status LED (RGB) Power LED (Green) 4.3.1. Power LED... -
Page 11: 4.3.2. Status Led
Pair by Button The Pair by button is used to replace existing TigoBridge B1 with a new one. The TigoBridge B1 must be powered off to assure that the TigoMaster disconnects before installing a new TigoBridge B1. Pairing Button currently disabled. To enable, contact CoreTigo Support. -
Page 12: Electrical Connection
Warning: TigoBridge B1 does not have reverse polarity power connection protection! Mounting TigoBridge B1 should be mounted safely and securely next to the device to which it is connected. TigoBridge B1 can be mounted with or without the cradle accessory. -
Page 13: Configuration & Setup
4. Once the reset cycle is complete, the status LED alternates between magenta and yellow. 5. Plug the TigoBridge B1 to an IO-Link device (sensor/actuator). Note, if TigoBridge B1 cannot connect directly to the device, you may use an M12 cable. Once successfully connected the Status LED alternates between Magenta and Green. -
Page 14: Figure 10: Tigoengine Scanning Mode
TigoBridge B1 User Manual Figure 10: TigoEngine Scanning Mode 7. Identify the TigoBridge B1 using the UID. Select the requested TigoBridge B1. Select an empty port on the Master side and click Pair. Figure 11: TigoEngine Pairing Process 8. When the pairing process is complete, the TigoEngine Port Mode should indicate OPERATE. -
Page 15: Firmware Update
TigoBridge B1 User Manual Figure 13: Port Details tab Unpair – To replace a TigoBridge B1, click the unpair button, on the TigoEngine interface, and repeat the instructions to unpair it. Once unpaired, the TigoBridge B1 status LED alternates between magenta and green. -
Page 16: Diagnostics And Troubleshooting
Power LED Power LED – if a power supply is connected to the TigoBridge B1 and the Power LED is off, the power supply is not properly connected, or it is providing a power supply different than the expected range. -
Page 17: Guidelines And Regulations
9.3. Modification Statements FCC Warning (Modification statement) CoreTigo LTD has not approved any changes or modifications to this device by the user. Any changes or modifications can void the user’s authority to operate the equipment. 9.4. FCC Regulatory Notices Interference statement (if it is not placed in the device) This device complies with Part 15 of the FCC Rules. -
Page 18: 10. Technical Data
TigoBridge B1 User Manual 10. Technical Data Table 4: Technical Data Electrical Data Input Voltage 18-32 [V]* Output Voltage on L+ Equals to Input Voltage Typical Current Consumption 21 [mA]** Max Output Supply Current - 1L+ 1L+ = 1 [A] Max Output Supply Current - 2L+ Max current of 2.5 [A] under 50°C, linearly de-rated to 1 [A] at 60°C. - Page 19 • Shock: IEC 60068-2-27 • Bumps: IEC 60068-2-27 * TigoBridge B1 should be supplied from a limited, Class 2, power supply or via overcurrent protective device (fuse, breacker, etc.) rated 3A max. ** For 24 VDC Supply input, without IO Link device current consumption *** For 30 minutes To read more about IO-Link Wireless solutions follow this link https://www.coretigo.com/solutions/.
-
Page 20: 11. Customer Support
TigoBridge B1 User Manual Block Diagram Dimensions 11. Customer Support For any issue, question, or to report a bug, contact support@coretigo.com Page 20 of 21 Copyright © 2021 CoreTigo Ltd. -
Page 21: Appendix A - Part Number
TigoBridge B1 User Manual Appendix A – Part Number Part number: CT231-0057-01 • Generation: 1 • Product Identifier: 3 • Product Type: 1 • Protocol: 0057 • Character Identifier of Feature • Version: 01 CT(GXY-ZZZZiii-vv) 0057 Feature’s Character Identifier Generation...
