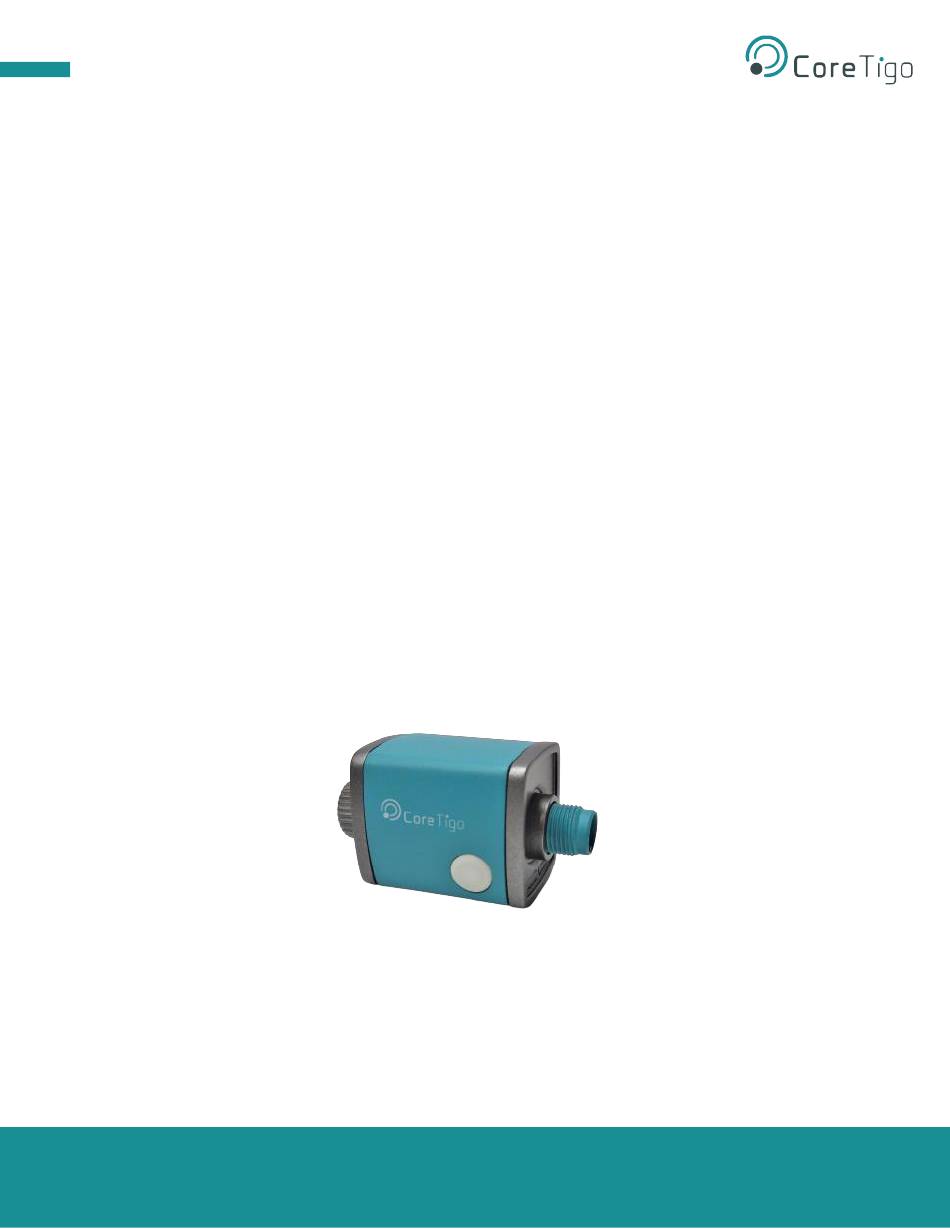

  • Page 1 TigoBridge A1 User Manual CoreTigo TigoBridge A1 ANUAL Copyright © 2021 CoreTigo Ltd.
  • Page 2 TigoBridge A1 User Manual Page 2 of 23 Copyright © 2021 CoreTigo Ltd.

  • Page 3: Table Of Contents

    TigoBridge A1 User Manual Table of Contents Introduction ............................5 1.1. Structure ............................5 1.2. Typographical Conventions ......................5 1.3. Symbols ............................5 1.4. Deviating Views ..........................6 Safety ..............................6 2.1. General Note ..........................6 2.2. Electrical Connection ........................6 2.3.
  • Page 4 Figure 6: Electrical Schematic Diagram ...................... 11 Figure 7: Cradle Dimensions........................11 Figure 8: TigoBridge A1 and Cradle ......................12 Figure 9: TigoBridge A1 Mounted on the Cradle ..................12 Figure 10: TigoEngine Scanning Mode ....................... 13 Figure 11: TigoEngine Pairing Process ...................... 13 Figure 12: TigoEngine Operate Mode ......................
  • Page 5 TigoBridge A1 User Manual Acronyms and Abbreviations Acronyms and abbreviations used in this document are listed in this table: Symbol Meaning Firmware Hardware Interface IOLW IO-Link Wireless Light-Emitting Diode Software Unique ID Page 4 of 23 Copyright © 2021 CoreTigo Ltd.

  • Page 6: Introduction

    This user manual introduces you to TigoBridge A1 (Part number: CT221-0057-03) and enables you to perform setup, configuration, mounting, and troubleshooting. TigoBridge A1 is an IO-Link to IO-Link Wireless convertor. TigoBridge can convert any IO-Link device to IO-Link Wireless as long as it is IO-Link certified. Read the manual carefully before using the device.

  • Page 7: Deviating Views

    The TigoBridge A1 converts IO-Link to IO-Link Wireless. The TigoBridge A1 houses internal antenna and two M12 connectors for data and power. TigoBridge A1 is a device that connects a wired IO-Link device, via IO-Link Wireless, to an IO-Link Wireless Master. A device can be an IO-Link sensor, IO-Link actuator, or IO-Link hub.

  • Page 8: Requirements

    TigoBridge A1 User Manual Warning: CoreTigo Ltd. does not assume any warranty or liability for damage caused to the product due to non-compliance with security measures or incorrect product installation. Requirements TigoBridge A1 is implemented based on the IO-Link Wireless standard for W-Bridge devices. TigoBridge A1 is part of an IO-Link Wireless environment.

  • Page 9: Pre-Installation

    4.1. Description An IO-Link device can be connected to a TigoBridge A1 directly or using an M12 cable. TigoBridge A1 can be connected to an IO-Link Wireless Master by TigoEngine, Integrated web server tool, or PLC. Each IO-Link Wireless master can operate up to 16 TigoBridges A1.

  • Page 10: 4.2.1. Functional Diagram

    TigoBridge A1 User Manual 4.2.1. Functional Diagram Figure 4: TigoBridge A1 Functional Diagram Device Connector Pairing Button Power Supply Connector Power LED (Green) Status LED (RGB) 4.3. LEDS Figure 5: TigoBridge A1 LEDs Status LED (RGB) Power LED (Green) 4.3.1. Power LED...

  • Page 11: 4.3.2. Status Led

    Pair by Button The Pair by button is used to replace existing TigoBridge A1 with a new one. The TigoBridge A1 must be powered off to assure that the TigoMaster disconnects before installing a new TigoBridge A1. Pairing Button currently disabled. To enable, contact CoreTigo Support.

  • Page 12: Electrical Connection

    Warning: TigoBridge A1 does not have reverse polarity power connection protection. Mounting TigoBridge A1 should be mounted safely and securely next to the device to which it is connected. TigoBridge A1 can be mounted with or without the cradle accessory.

  • Page 13: Configuration & Setup

    4. Once the reset cycle is complete, the status LED alternates between magenta and yellow. 5. Plug the TigoBridge A1 to an IO-Link device (sensor/actuator). Note, if TigoBridge A1 cannot connect directly to the device, you may use an M12 cable. Once successfully connected the Status LED alternates between Magenta and Green.

  • Page 14: Figure 10: Tigoengine Scanning Mode

    TigoBridge A1 User Manual Figure 10: TigoEngine Scanning Mode 7. Identify the TigoBridge A1 using the UID. Select the requested TigoBridge A1. Select an empty port on the Master side and click Pair. Figure 11: TigoEngine Pairing Process 8. When the pairing process is complete, the TigoEngine Port Mode should indicate OPERATE.

  • Page 15: Firmware Update

    TigoBridge A1 User Manual Figure 13: Port Details tab Unpair – To replace a TigoBridge A1, click the unpair button, on the TigoEngine interface, and repeat the instructions to unpair it. Once unpaired, the TigoBridge A1 status LED alternates between magenta and green.

  • Page 16: Diagnostics And Troubleshooting

    Power LED Power LED – if a power supply is connected to the TigoBridge A1 and the Power LED is off, the power supply is not properly connected, or it is providing a power supply different than the expected range.

  • Page 17: Guidelines And Regulations

    9.3. Modification Statements FCC Warning (Modification statement) CoreTigo LTD has not approved any changes or modifications to this device by the user. Any changes or modifications can void the user’s authority to operate the equipment. ISED Warning (Modification statement) CoreTigo Ltd. n’approuve aucune modification apportée à l’appareil par l’utilisateur, quelle qu’en soit la nature.
  • Page 18 TigoBridge A1 User Manual Wireless Notice This device complies with FCC/ISED radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS‐102 of the ISED radio frequency (RF) Exposure rules. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

  • Page 19: 10. Technical Data

    TigoBridge A1 User Manual 10. Technical Data Table 4: Technical Data Electrical Data Input Voltage Max. Input Current 1.3 [A]* Output Voltage on L+ Equals to Input Voltage Typical Current Consumption 21 [mA]** Max Output Supply Current 1 [A] Max Output Peak Current 1.2 [A]***...
  • Page 20 • Random vibration: IEC 60068-2-64 • Shock: IEC 60068-2-27 • Bumps: IEC 60068-2-27 * TigoBridge A1 should be supplied from a limited, Class 2, power supply or via overcurrent protective device (fuse, breacker, etc.) rated 4A max. ** Over current protection on L+...
  • Page 21 TigoBridge A1 User Manual • EN 61000-6-2 Immunity o EN31000-4-2 Electrostatic discharge o EN61000-4-4 Fast transients/burst o EN61000-4-5 Surge immunity o EN61000-4-6 Conducted immunity Block Diagram Dimensions Page 20 of 23 Copyright © 2021 CoreTigo Ltd.

  • Page 22: 11. Customer Support

    TigoBridge A1 User Manual 11. Customer Support For any issue, question, or to report a bug, contact support@coretigo.com Page 21 of 23 Copyright © 2021 CoreTigo Ltd.

  • Page 23: Appendix A - Part Number

    TigoBridge A1 User Manual Appendix A – Part Number Part number: CT221-0057-03 • Generation: 2 • Product Identifier: 2 • Product Type: 1 • Protocol: 0057 • Characters Identifier of Features • Version: 03 CT(GXY-ZZZZiii-vv) ZZZZ Feature’s Character Identifier Generation...
