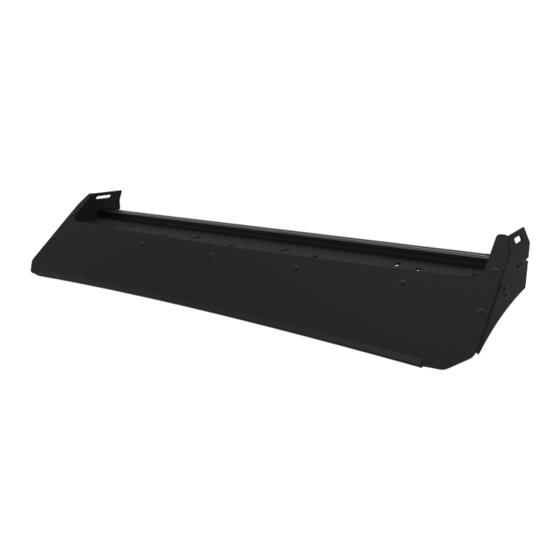

S PRI NTER VAN STAN D ARD R OOF R ACK LI GH T B AR FAIRIN G
SP0114 B. 4
INSTALLATION
GUIDE
F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6
TOOLS REQUIRED
(NOT INCLUDED)
+
MEASURING TAPE
+
7/32" ALLEN WRENCH
+
3/16" ALLEN WRENCH
+
5/32" ALLEN WRENCH
+
7/16" WRENCH OR SOCKET
INSTALL INFO
TIME TO INSTALL THIS PRODUCT: 45 MINUTES
Additional help is suggested for a few of the install
steps.
BEFORE YOU START
Please inspect the product and packaging upon
delivery to ensure there are no issues and that all
parts and hardware are accounted for.
Contact us ASAP if anything is missing at:
support@flatlinevanco.com
0 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for FVC SP0114B.4
Summary of Contents for FVC SP0114B.4
- Page 1 INSTALLATION GUIDE S PRI NTER VAN STAN D ARD R OOF R ACK LI GH T B AR FAIRIN G SP0114 B. 4 TOOLS REQUIRED (NOT INCLUDED) MEASURING TAPE 7/32” ALLEN WRENCH 3/16” ALLEN WRENCH 5/32” ALLEN WRENCH 7/16” WRENCH OR SOCKET INSTALL INFO TIME TO INSTALL THIS PRODUCT: 45 MINUTES Additional help is suggested for a few of the install...
-
Page 2: Before You Start
BEFORE YOU START All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage. -
Page 3: Package Contents
PACKAGE CONTENTS DRIVER SIDE FAIRING PASSENGER SIDE FAIRING BRACKET BRACKET CROSSBAR FAIRING BRACKET FAIRING GASKET TRIM FRONT FAIRING QTY: 1 QTY: 1 QTY: 1 QTY: 1 QTY: 1 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6... - Page 4 HARDWARE 1/4-20 X 0.5 BUTTON 1/4 SCREW BELLEVILLE 1/4 SCREW FLAT HEAD HEX DRIVE SPRING LOCK WASHER 1/4-20 TNUT THREADLOCKER SCREW WASHER QTY: ?? QTY: ?? QTY: ?? QTY: ?? QTY: ?? 1/4-20 X 0.75 1/4-20 FLANGED BUTTON NYLON LOCKNUT HEAD HEX DRIVE SCREW QTY: ??
- Page 5 5/32” ALLEN WRENCH TOOLS REQUIRED FOR THIS STEP: STEP | 01 FAIRING ASSEMBLY 1.1 Crossbar Fairing Bracket: Stack a 1/4-20” x 0.5 Button Head Screw, 1/4” Belleville Lock Washer and 1/4” Flat Washer as shown in FIG 10 and insert into the six available front holes of the Crossbar Fairing Bracket.
- Page 6 TOOLS REQUIRED FOR THIS STEP: 3/16” ALLEN WRENCH 7/16” WRENCH OR SOCKET STEP | 01 FAIRING ASSEMBLY 1.3 Driver and Passenger Side Fairing Brackets: Attach the Driver and Passenger Side Fairing Brackets to the Assembly using 1/4-20 x 0.75 Flanged Button Head Screws, Flat Washers and Nylon Locknuts (FIG 3).
- Page 7 TOOLS REQUIRED FOR THIS STEP: 3/16” ALLEN WRENCH 5/32” ALLEN WRENCH 7/16” SOCKET OR WRENCH STEP | 01 FAIRING ASSEMBLY 1.5 Attach Front Fairing: Attach the Front Fairing to the Assembly using 1/4-20 x 0.75 Flanged Button Head Screws, Flat Washers and Nylon Locknuts (FIG 5+6). F I G 5 F I G 6 F L AT L I N E VA N C O •...
- Page 8 TOOLS REQUIRED FOR THIS STEP: 3/16” ALLEN WRENCH STEP | 02 FAIRING INSTALL 2.1 Fairing Install: Now you’re ready to attach the fairing to the roof rack. Slide it in from the front and into the location shown in FIG 7. Tighten down using (8) 1/4-20” Flange Head Screws (FIG 8).
- Page 9 FVC (and see) from you! Head to the products and following along and we will make it right. FVC is product page and click “Leave a company of van and outdoor with your adventures. Tag us Review.”...
