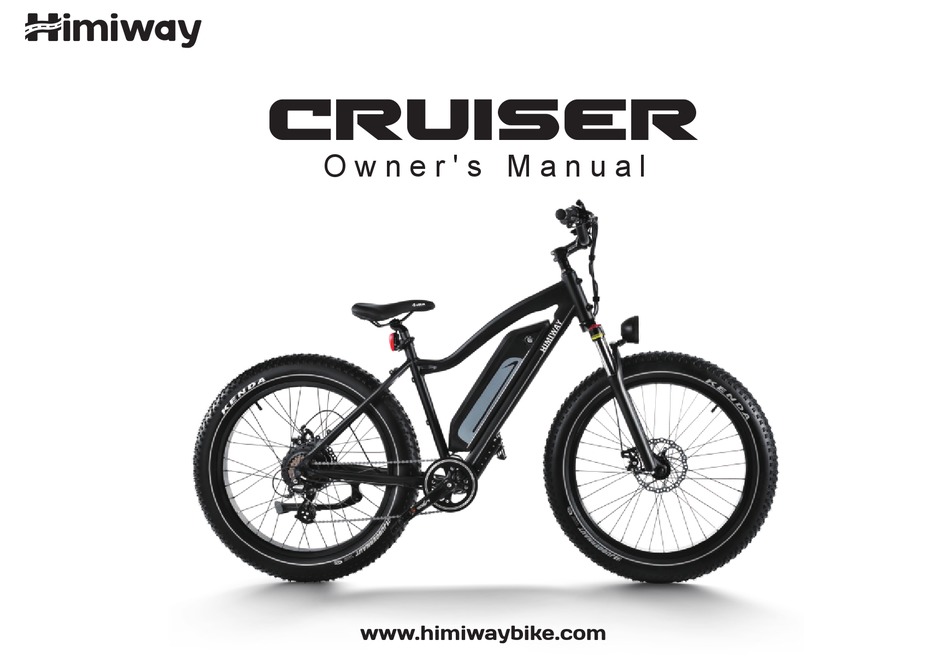

- Page 1 Cruiser O w n e r ' s M a n u a l www.himiwaybike.com...
-
Page 3: About Manual
This manual contains details of the product, and information on its operation and maintenance and other helpful tips for owners. Read it carefully and familiarize yourself with the Himiway Cruiser before using it to ensure safe use and prevent tragic accidents. Be sure to retain this manual as your convenient Himiway Cruiser information source. -
Page 4: Product Specification
Product Specification Battery 48v 17.5Ah Samsung Lithium Battery Front Fork Alloy Front Suspension Fork Motor 750W High Speed Brushless Geared Motor Bike Frame 26” * 18” AL6061 M Model Display KDS-KD51C+USB LCD Display Brake Tektro Aries 180mm Brakes Derailleur 7-speed Shimano-Altus-7 Speed Charger US Standard 2.0A Smart Charger Speed... - Page 5 Shimano Shifter On/Off Switch LCD Display Brake Handle LED Light Switch Throttle Saddle Frame Battery Rear Brake LED Head Light Motor Front Fork Front Brake Tire Rear Derailleur Controller Pedal · 3 ·...
-
Page 6: Safety Checklist
Wheelbase Maximum Load Capactiy 45 inch 350 LBS Total Length Min / Max Seat Height 75 inch 28 ~ 36.5 INCH Handlebar Reach Tires 46.5 inch 26 X 4 Motor 750W Safety Checklist NOTICE: Before every ride it is important to carry out the following safety checks. ·... - Page 7 Safety Check Basic Steps o Ensure front and rear brakes work properly. o Ensure brake pads are not over worn and are correctly positioned in relation to the rims. Brakes o Ensure brake control cables are lubricated, correctly adjusted and display no obvious wear. o Ensure brake control levers are lubricated and tightly secured to the handlebars.
- Page 8 Assembly Instructions NOTICE: The following assembly steps are only a general guide to assist in the assembly of your Himiway Bike and is not a complete or comprehensive manual of all aspects of assembly, maintenance and repair. We recommend you consult a certified bicycle mechanic to assist in the assembly, repair and maintenance of your bicycle.
- Page 9 Step 8 : Install the optional rear rack. Align the holes in the rear rack with the holes in the frame and tighten with screws. Step 9 : Check the battery pack is locked into the frame of the Himiway Cruiser. When you want to take off the battery, insert the key and turn to release the battery pack.
-
Page 10: Recommended Torque Values
NOTICE: Ensure all hardware is tightened properly and all safety checks in the following sections are performed before first use. Contact Himiway Bike if you have any questions regarding the assembly of your bike. If you are not able to ensure all the assembly steps in the assembly video are performed properly, or you are unable to view the assembly video please consult a certified local bicycle service provider for assistance in addition to contacting Himiway Bike for help. -
Page 11: Start-Up Procedure
2-3 seconds. 4. With the proper safety gear and rider knowledge and understanding you may now proceed to operate your Himiway Bike. You can begin by pedaling the bike in the appropriate drivetrain gear with or without pedal assistance. You may also use the throttle to accelerate and maintain your desired speed. -
Page 12: Routine Operation
Routine Operation Power ON/OFF After pressing the power button for seconds, the meter starts to work and provides the working power of the controller. In the power-on mode, press and hold the power button to turn off the electric bikes power supply. In the off mode, the meter no longer uses the battery's powersupply, and the meter's leakage current is less than 1uA. - Page 13 Help Push Press and hold the “—” button to hold it down. After 2 seconds, the electric bike enters the power assist mode. The electric bike travels at a constant speed of 6 kilometers per hour. At the same time, the screen displays “WALK”. Release the “—” button and the electric bike will immediately stop the power output and return to the state before the boost.
- Page 14 Battery Capacity Display The display on the handlebar of your Himiway Bike features a battery capacity gauge (much like the fuel gauge on an automobile). It is recommended that users charge the bike as soon as possible once one bar is left on the display. Once the battery is fully depleted, the last remaining bar will begin to flash, communicating to the user that they should cease operation immediately.
-
Page 15: General Settings
Definition Error Code Definition Error Code Motor Hall Defect Abnormal Current Brake Failed or Brake Applied While Turning On Throttle Fault Abnormal Communication Motor Phase Problem When the error code is displayed, please promptly remove the fault. After the fault occurs, the electric bike will not be able to ride normally. General Settings Press and hold the power button to turn it on. -
Page 16: General Parameter Settings
Inch and Metric Conversion U stands for unit, 1 stands for imperial system, and 2 stands for metric system. The speed and mileage units can be converted by the “+” or “—” buttons. Press the “i” button to confirm. Press and hold the “i” button to confirm and exit the normal setting. The default unit of the meter is metric. -
Page 17: Driving Range
Driving Range The range of your Himiway Bike is the distance the bike will travel on a single full charge of the onboard battery pack. The range values in this manual are estimates based on expected usage characteristics. Some of the factors which effect range include changes in elevation, speed, payload, and acceleration, number of starts and stops and ambient air temperatures. - Page 18 Himiway Bike safe from theft. and make lifting and loading easier.
-
Page 19: Carrying Loads
The following bulleted list provides important tips for the safe operation of the Himiway Cruiser when used for carrying cargo. • Plan your route accordingly as your hill climbing ability, steering and braking are all impacted when cargo is loaded on the Himiway Cruiser. -
Page 20: Charging Procedure
Charging Procedure Follow these steps for charging your Himiway Bike: 1. Turn the battery pack off using the key switch. 2. Remove the rubber cover on the charging socket on the opposite side of the battery switch. - Page 21 Always charge your battery in temperatures between 10 and 26 degrees Celsius and ensure the battery and charger are not damaged before initiating charge. If you notice anything unusual while charging, please discontinue charging and use of the bike and contact Himiway Bike for help. · 19 ·...
- Page 22 Basic Battery Charging Tips in the inverted position which can inhibit cooling and reduce the charger’s life. When the Battery Is Removed · 20 ·...
-
Page 23: Charging Time
3-5 years of regular use. If your battery does not seem to be charging normally, and taking longer to charge than expected, please discontinue charging and contact Himiway Bike immediately. -
Page 24: Charger Safety Information
Please take special care in charging of your Himiway Bike in accordance with the above procedures and safety information. Failure to follow proper charging procedures can result in damage to your Himiway Bike, charger, personal property and/or serious injury or death. -
Page 25: Bicycle Care
Your cables, spokes and chain will stretch after an initial break in period of 80-160 km, while bolted connections can loosen. Therefore, always have a certified bicycle mechanic perform a tune-up on your Himiway Cruiser after your initial break-in period of 80- 160 km (depending on total weight, riding characteristics and terrain). Regular inspec- tions and tune-ups are particularly important for ensuring that your bicycle remains safe and problem-free. -
Page 26: Basic Troubleshooting
Basic Troubleshooting Symptoms Possible Causes Most Common Solutions 1. Insufficient battery power 1. Charge the battery pack 2. Faulty connections 2. Clean and repair connectors It doesn’t work 3. Battery not fully seated in tray 3. Install battery correctly 4. Improper turn on sequence 4. - Page 27 As a parent or guardian, you are responsible for the activities and safety of your child. The Himiway Cruiser is not designed for use by children. The following safety notes provide additional information on the safe operation of your Himiway Bike and should be closely reviewed.
-
Page 28: Warranty Info
Warranty Info Every bike is covered under a manufacturer's two-year all-inclusive warranty for the original owner against all manufacturing defects. Himiway Bike warrants this product, including all individual components against defects in material or workmanship as follows: Himiway Bike LIMITED 2 YEAR WARRANTY... - Page 29 This warranty does not include consumables or normal wear and tear parts (tires, tubes, brake pads, cables and housing, grips). Himiway Bike will not be liable and/or responsible for any damage, failure or loss caused by any unauthorized service or use of unauthorized parts.
- Page 30 Components of the Himiway Cruiser are subject to higher wear when compared to bicycles without power assistance. This is because the Himiway Cruiser can travel at higher average speeds than regular cycles and has a greater weight. Higher wear is not a defect in the product and is not subject to warranty.
- Page 32 www.himiwaybike.com...
