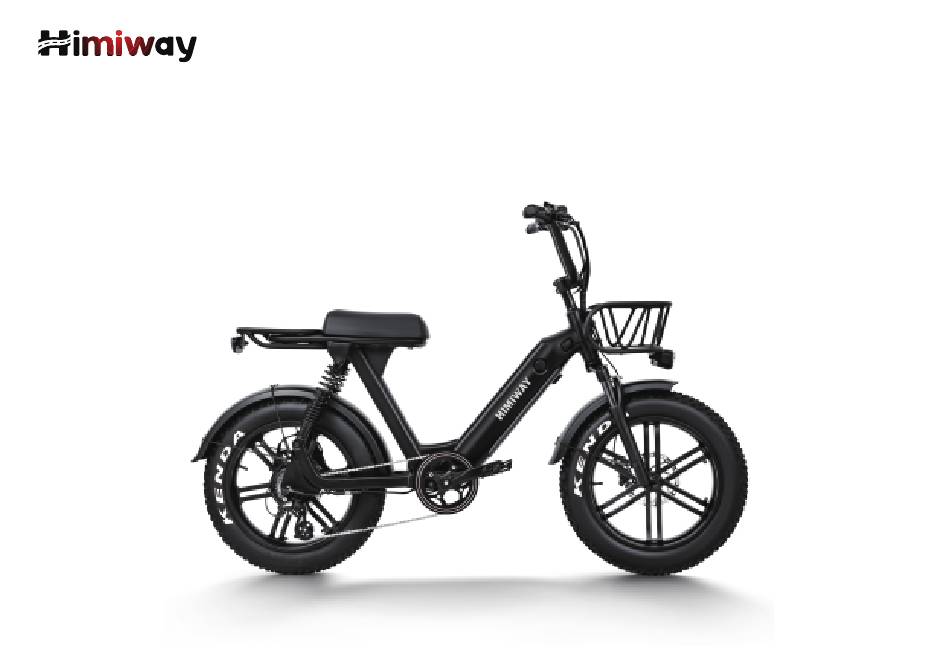

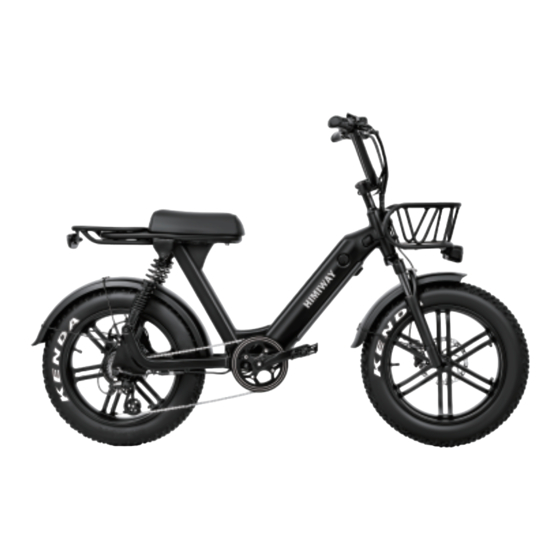

- Page 1 E S C A P E O w n e r ' s M a n u a l https://himiwaybike.com...
- Page 2 Take down your serial numbers here! (Go to page 16 to find your serial numbers) Bike frame number Battery serial number Motor serial number If you reset a security passcode via Display Setting, we suggest you write it down here in case you may forget:...
- Page 3 This manual contains details of the product, information on its operation and maintenance, and other helpful tips for owners. Read it carefully and familiarize yourself with the Himiway Bike before using it to ensure safe use, reduce risk of damage and premature wear, and prevent accidents. Be sure to retain this manual as your convenient Himiway Bike information source.
-
Page 4: Table Of Contents
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Himiway E-Bike Use and Care •... -
Page 5: Bike Specification
Bike Specification LCD Display Power Switch Shimano Shift Lever LED Light Switch Information Throttle Saddle Battery Head Tube Rear Brake LED Headlight Motor Front Suspension Fork / Front Shock Front Brake Rear Derailleur Controller... - Page 6 69 Inch - Total Length 46.5 Inch - Handlebar Height 43.7 Inch - Wheelbase 28 Inch - Seat Height 22.5 Inch - Top Tube Length 19 Inch - Chain Stay Length 24 Inch - Standover Height 23 Inch - Wheel Diameter 6 Inch - Head Tube Length 28 Inch...
- Page 7 Battery Charger 48V 17.5Ah Samsung/LG lithium battery US standard 2.0 A smart charger Range 35~60 miles Controller 48V/22A Motor Display 750W brushless gear motor LCD display with USB charging Total Payload 330 lbs Weight 92 lbs Capacity Recommended Pedal Assist 5'2"...
-
Page 8: Bike Assembly Guide
Reduce the weight of the ebike to make it easier to maneuver the bike while assembling. Avoid battery damage during the assembly process. Go to page to learn about removing and charging the battery. *Please go to our Youtube channel “Himiway Bikes” to watch our assembly tutorial videos! -
Page 9: Recommended Torque Values
Recommended Torque Values Hardware Location Recommended Torque(NM) Handlebar 12-18 Stem 12-18 Saddle 12-18 Front Wheel(For bikes with bolts on front wheel) 15-22 Rear wheel 30-38 Bottom Bracket Parts 30-50 Pedals 28-33 Disk Mounting Bolts Disk Caliper Mount Crank Bolts 32-36 Rear Derailleur Cable Pinch Front Derailleur Clamp Saddle Post Clamp... -
Page 10: Assembly Instructions
Assembly Instructions Handlebar Installation（4mm Hex Wrench） ◆ Step 1: Loosen the bolts on your bike stem. Step 2: Center your handlebars and rotate them to align to the marking pointed to in the below image. Step 3: Tighten bolts to handlebar stem, but don’t tighten completely as you may want to further adjust the angle later to align more precisely. After determining the best position, completely tighten all the bolts on the stem. - Page 11 Front Wheel Installation（15mm Wrench） ◆ Step 1: Before front wheel installation, prepare the tools needed and remove the plastic axle guards from the front wheel and the front fork protection bar. Thumb nuts 15mm wrench Front wheel hub axle (Tools needed)
- Page 12 Step 2: Insert the front wheel hub axle through the hub starting from the brake rotor side of the wheel. Pay attention to the position of the black spacer on each side. Step 3: Roll the wheel in between the front fork, as shown in the image below. Align the fork dropouts with the axle of the wheel hub.
- Page 13 Step 4: Use a 15mm wrench to tighten the bolts on both sides of the axle, and install the two thumb nuts by pressing them tightly. Step 5: Inflate the tires and make sure they have sufficient pressure for riding comfort and safety, not exceeding the limit specified on the sidewall. Step 6: After the front wheel installation, rotate the front wheel to make sure the bolts are fully tightened on the axle and check the wheel balance in Pedal Only Mode.
- Page 14 Headlight & Front Fender (5mm Hex Wrench & 10mm Wrench) ◆ The headlight and front fender are both secured by a single bolt, so the front fender must be installed together with the headlight. If you prefer not to have a front fender, you may install the headlight by itself.
- Page 15 Step 2: Connect the light wire connectors together. Pay careful attention to the arrows on the wire connectors, making sure the arrows align with each other to avoid damaging the interior circuitry. Step 3: Loosen the bolts on the two brackets on either side of the front fork, as shown in the image. Then pull one end of the fender brace until the loop at the end is centered in the bracket, reinsert the bolt through the loop at the end of the brace, and tighten completely.
- Page 16 Pedals Installation (15mm wrench) ◆ Make sure your pedals are installed on the correct side, as installing on the wrong side will damage the threads. Indicators for the right pedal (R) and the left pedal (L) can be found in two places: the stickers on the plastic cover, and the bottom of the pedal threads.
- Page 17 Before you install the pedals, apply a small amount of waterproof grease onto the spindle. Start threading the pedal on by hand to ensure the pedal is going in perfectly straight, rotating in the direction of the pointer shown on the crank. If it is not spinning smoothly, make doubly sure that you have the correct left or right pedal.
- Page 18 After Bike Assembly ◆ Please write down the serial numbers found on the head tube, battery and motor on the inside front cover of this manual to facilitate failure reporting. Make sure each letter and number is correct. Make sure you take down the Capital Letters here! Make sure you take down the Capital Letters here! Bike frame number Battery serial number...
-
Page 19: Safety Check
Safety Checklist Safety Check Basic Steps o Test front and rear brakes for proper function. o Ensure brake pads are not overworn and are correctly positioned in relation to rims. Brakes o Make sure brake control cables are lubricated, correctly adjusted and display no obvious wear. o Check that brake control levers are lubricated and tightly secured to handlebars. -
Page 20: Safety Precautions
Safety Precautions The following safety notes provide additional information on the safe operation of your Himiway bike and should be closely reviewed. Improper operation, or failure to confirm correct installation, compatibility, and maintenance of any component or accessory may result in serious injury or death. -
Page 21: Himiway E-Bike Use And Care
Himiway E-Bike Use and Care The following table of contents provides general guidance on Himiway e-bike variable power assist settings and their effects on both range and perfor- mance. This content will apply broadly to most riders, but multiple factors will affect individual results including rider fitness and weight, terrain, proper maintenance, etc. - Page 22 Display Screen ◆ Power Output Battery Level Pedal Assist Level Motor Power Speed Lighting Indicator Speed Unit Function List (Check form 1 down below) Range / Time Unit Text Display TRIP Single mileage (km) ERROR 21 Abnormal Current Total mileage (km) ERROR 22 Throttle Fault RIDETM...
- Page 23 Start-up Procedure ◆ Press and hold the power button “ ” on the control panel for two seconds until the display comes on. Press the information button “ ” on the control panel to cycle through the display settings: odometer, trip meter, max speed, and average speed. MILE MILE MILE...
- Page 24 NOTICE: If the motor power ever becomes too strong for riders’ preference or sense of safety, simply apply the handbrake to cut off motor power completely. If the throttle assist seems accidentally engaged too easily, causing unwanted acceleration, simply apply the handbrake or lower the Pedal Assist level to 0 to disengage the throttle.
- Page 25 Pedal - Assist Adjustment ◆ The e-bike ships with standard Pedal Assist settings ranging from 0 (no assist) to 5 (maximum assist). To adjust, hold both “ + ” and “ - ” together for two seconds, bringing you to the trip meter reset screen described above. Then, hold both “...
- Page 26 The e-bike ships with the throttle set to accelerate the e-bike to a maximum speed of 22 mph. This can be adjusted lower or higher, BUT please be mindful of local laws and regulations regarding maximum throttle speeds permitted. Himiway is not liable for any consequences of rider misuse of maximum throttle speed adjustments.
- Page 27 Security Passcode ◆ To prevent theft or unauthorized use of your e-bike, you may set a security passcode to prevent use of the motor/electronics (though still permitting manual pedalling). Hold “ + ” and “ - ” together for two seconds, first bringing you to the trip meter reset screen described above. Then, hold “...
- Page 28 Display will then show “ PSd-n ” (no), press “ + ” to change it to “ PSd-y ” (yes) to turn the security passcode on. Press “ ” to confirm. Then, choose a 4-digit passcode of your preference. Press “ + ” and “ - ” to adjust numbers up/down. •...
-
Page 29: Battery Charging
Battery Charging Charging Procedure for Off-bike Charging ◆ Step 1: Find the keys located on the handlebar (fig. 1) and remove them. If you cut them from the handlebars, be careful not to damage any of the wires. Figure 1 Figure 2 NOTICE: Please keep your key and its spare in a safe place. - Page 30 Step 2: Use the key to unlock the battery (fig. 3). While holding the battery with one hand, detach the battery by turning the release switch located on the underside of the frame (fig. 4). Figure 3 Figure 4...
- Page 31 Step 3: Press the light button to check the battery status. When all four bars are lit as shown in Figure 5, the battery is fully charged. When only the red bar is lit as shown in Figure 6, the battery is empty and needs to be charged before riding further. Light button Empty Full...
- Page 32 Step 4: Safest way to charge your battery- First, assemble the charger by inserting the plug (Plug 1) into the transformer. Then insert the DC plug (Plug 2) into the battery charging socket. Last, insert the power plug (Plug 3: 110/220 volt plug) to the power socket. This order helps extend the battery life and effectively reduces battery damage caused by improper charging.
- Page 33 Charging Procedure for On-bike Charging ◆ Step 1: Check the battery power indicator on your display. Step 2: Assemble the charger as shown in Figure 8 (page 30 ) by inserting the plug (Plug 1) into the transformer. Plug 2 Figure 9 Step 3: Remove the rubber cover on the charging socket and insert the DC plug (Plug 2) of the charger into the battery charging socket (fig.
- Page 34 14° Fahrenheit (-10° Celsius) and over 104° Fahrenheit (40° Celsius). • Do not cover the charger when charging. • Keep the battery away from children while charging. • Make sure to only use an approved Himiway Bike charger purchased directly from Himiway Bike for your specific bike serial number.
- Page 35 • The Himiway Bike can be safely ridden in light rain. However, riding through very heavy downpours or through flooded streets is not recommended, as the crank and/or motor can get wet, which may cause damage.
-
Page 36: Riding Modes
Himiway Escape can reach speeds of up to 22 miles per hour with throttle mode, which not only allows you to travel faster, but also reassures riders with extra power whenever needed, depending on traffic conditions and rider energy levels. If you are an adventurer who chases after speed and distance without... -
Page 37: Riding Limitations
◆ In this mode, the Himiway will perform like a normal bike, as you’ll be riding without any assistance from the motor. This mode is especially useful if you run out of battery, or are looking for more intensive resistance training. -
Page 38: Parking & Transport
• Make sure to not park, store or transport your Himiway Bike on a rack that is not designed for the size and weight of the bike. When storing or carrying your bike on a rack for transport, remove the battery to reduce the weight and make lifting or loading easier. -
Page 39: Safety And Care Instructions
The Himiway Bike can be safely ridden in light rain. However, riding through very heavy downpours or through flooded streets is not recommended, as the crank and/or motor can get wet, which may cause problems. -
Page 40: Motor Maintenance
We recommend using a front fork dust cover to protect the inner tube of your front fork. This prevents dust from entering as well as hard objects from hitting the inner tube. Warranty Himiway Bikes periodically updates our official Warranty Policy. Therefore, please review the latest policy on our website https://himiwaybike.com/pages/warranty... - Page 41 After-sales Mail: customers@himiwaybike.com...
- Page 42 www.himiwaybike.com...
