4
FREQUENCY SETTING

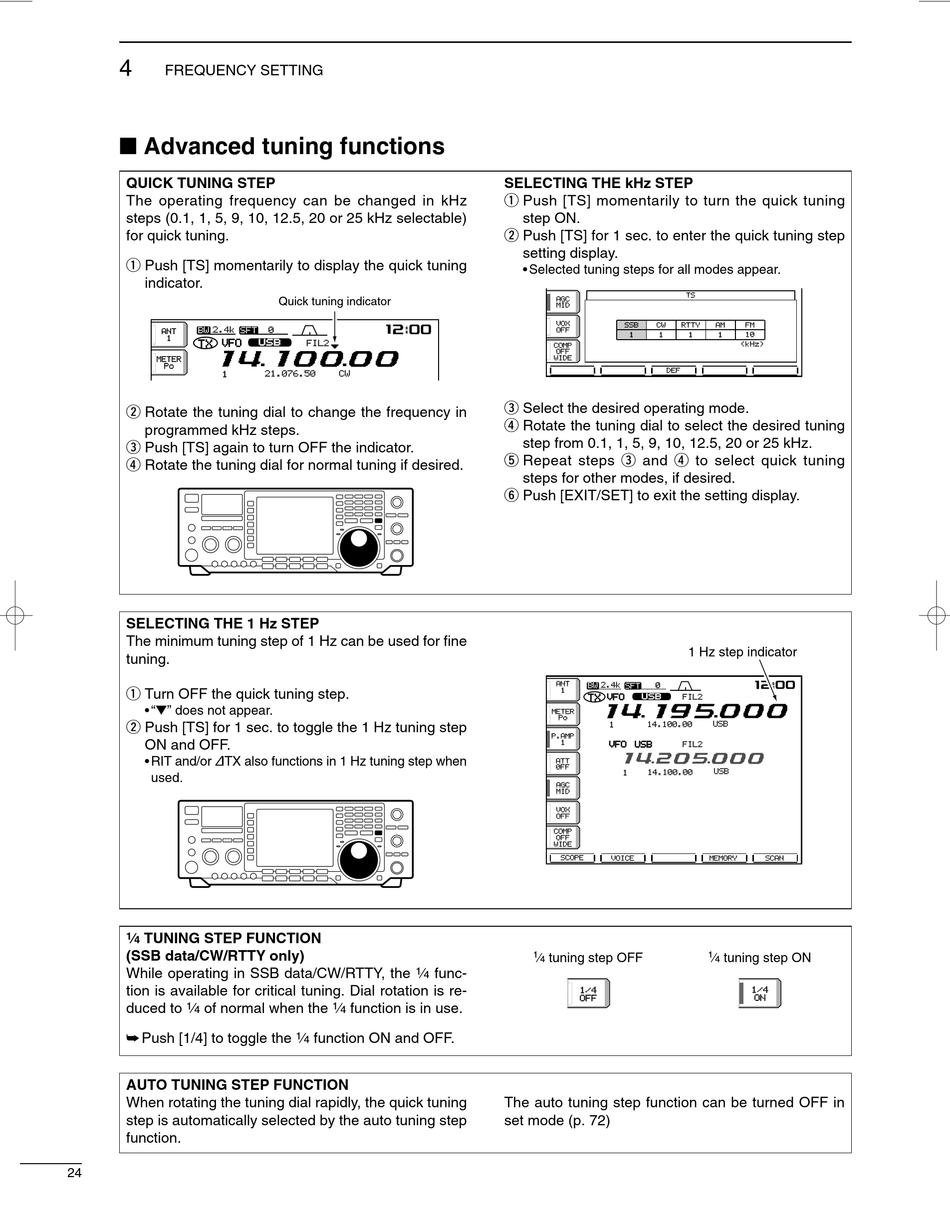

I Advanced tuning functions

QUICK TUNING STEP
The operating frequency can be changed in kHz
steps (0.1, 1, 5, 9, 10, 12.5, 20 or 25 kHz selectable)
for quick tuning.
q Push [TS] momentarily to display the quick tuning
indicator.
qr.qpp.pp
w Rotate the tuning dial to change the frequency in
programmed kHz steps.
e Push [TS] again to turn OFF the indicator.
r Rotate the tuning dial for normal tuning if desired.
SELECTING THE 1 Hz STEP
The minimum tuning step of 1 Hz can be used for fine
tuning.
q Turn OFF the quick tuning step.
• "M" does not appear.
w Push [TS] for 1 sec. to toggle the 1 Hz tuning step
ON and OFF.
• RIT and/or ∂TX also functions in 1 Hz tuning step when
used.
1
⁄ TUNING STEP FUNCTION
4
(SSB data/CW/RTTY only)
While operating in SSB data/CW/RTTY, the
tion is available for critical tuning. Dial rotation is re-
duced to 1 ⁄ of normal when the
4
➥ Push [1/4] to toggle the
AUTO TUNING STEP FUNCTION
When rotating the tuning dial rapidly, the quick tuning
step is automatically selected by the auto tuning step
function.
24
Quick tuning indicator
qw pp
1
⁄ func-
4
1 ⁄ function is in use.
4
1
⁄ function ON and OFF.
4
SELECTING THE kHz STEP
q Push [TS] momentarily to turn the quick tuning
step ON.
w Push [TS] for 1 sec. to enter the quick tuning step
setting display.
• Selected tuning steps for all modes appear.
e Select the desired operating mode.
r Rotate the tuning dial to select the desired tuning
step from 0.1, 1, 5, 9, 10, 12.5, 20 or 25 kHz.
t Repeat steps e and r to select quick tuning
steps for other modes, if desired.
y Push [EXIT/SET] to exit the setting display.
qr.qot.ppp
qr.wpt.ppp
1
⁄ tuning step OFF
4
The auto tuning step function can be turned OFF in
set mode (p. 72)
1 Hz step indicator
qw pp
1
⁄ tuning step ON
4
