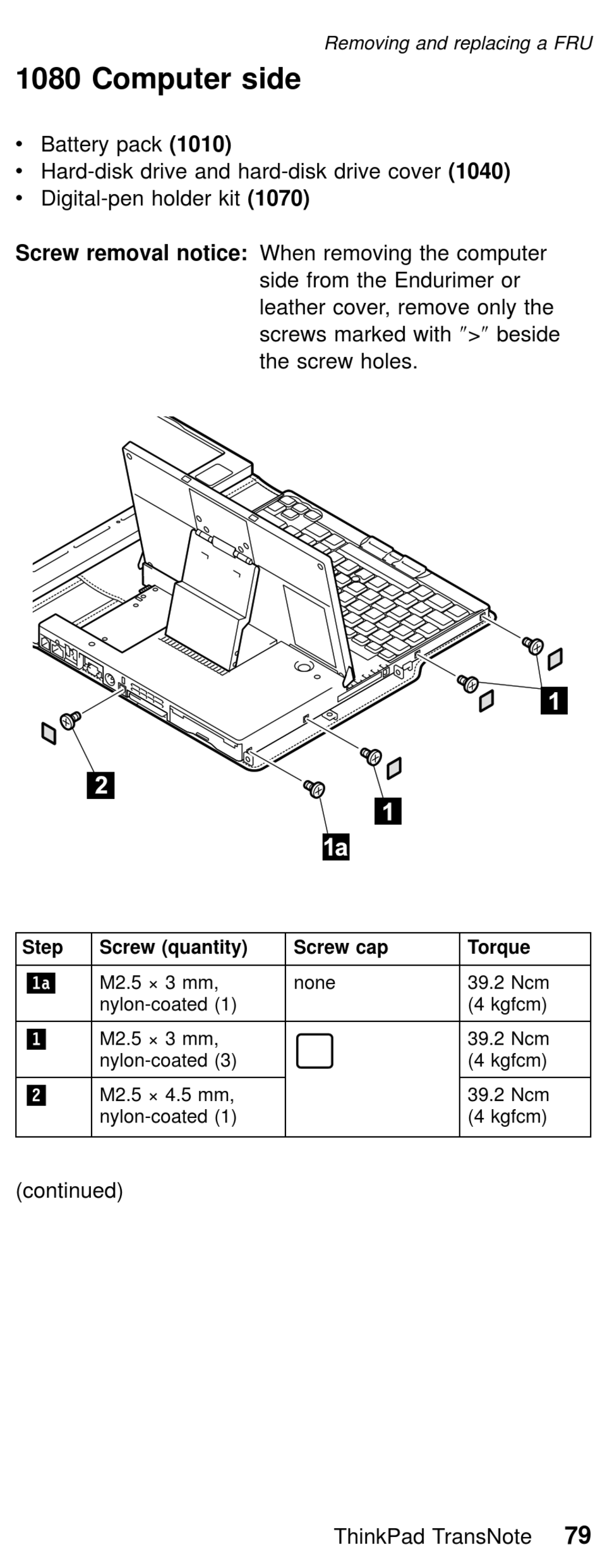

1080 Computer Side - IBM TransNote Hardware Maintenance Manual

1080 Computer side

v Battery pack (1010)
v Hard-disk drive and hard-disk drive cover (1040)
v Digital-pen holder kit (1070)
Screw removal notice: When removing the computer
Step Screw (quantity)
1a
M2.5 × 3 mm,
nylon-coated (1)
1
M2.5 × 3 mm,
nylon-coated (3)
2
M2.5 × 4.5 mm,
nylon-coated (1)
(continued)
Removing and replacing a FRU
side from the Endurimer or
leather cover, remove only the
screws marked with ">" beside
the screw holes.
Screw cap
none
ThinkPad TransNote
Torque
39.2 Ncm
(4 kgfcm)
39.2 Ncm
(4 kgfcm)
39.2 Ncm
(4 kgfcm)
79
