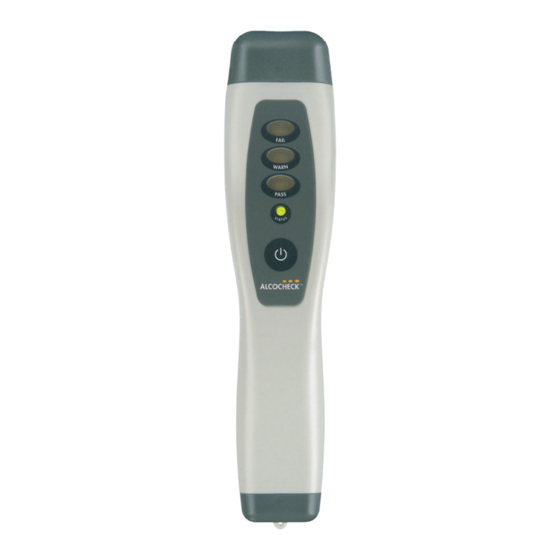

ACS ALCOCHECK Calibration Manual

ALCOCHECK: CALIBRATION GUIDE – A
P S
ROCEDURE TEPS
1. To calibrate, press and hold the
power button for 10 seconds.
If the green light goes on, it
means that the batteries have
sufficient life left.
If the yellow light turns on, the
batteries are low.
If the red light turns on, it means
the batteries need to be replaced.
2. Count the number of times one of
the LEDs flashes.
Once it stops flashing, press the
power button the same number
of times.
The yellow light will indicate that
the unit has been put into
calibration mode.
3. Put the mouthpiece of the 20%
simulator right up to the sensor
inlet.
Press the power button for it to
take a sample.
A green light indicates that the
calibration was successful.
A red light indicates that the
calibration failed.
22, 2010
UGUST
Hold for 10 seconds
Press same number as
LED flashes
Yellow indicates
calibration mode
