Summary of Contents for ACS Alcolock L OEM

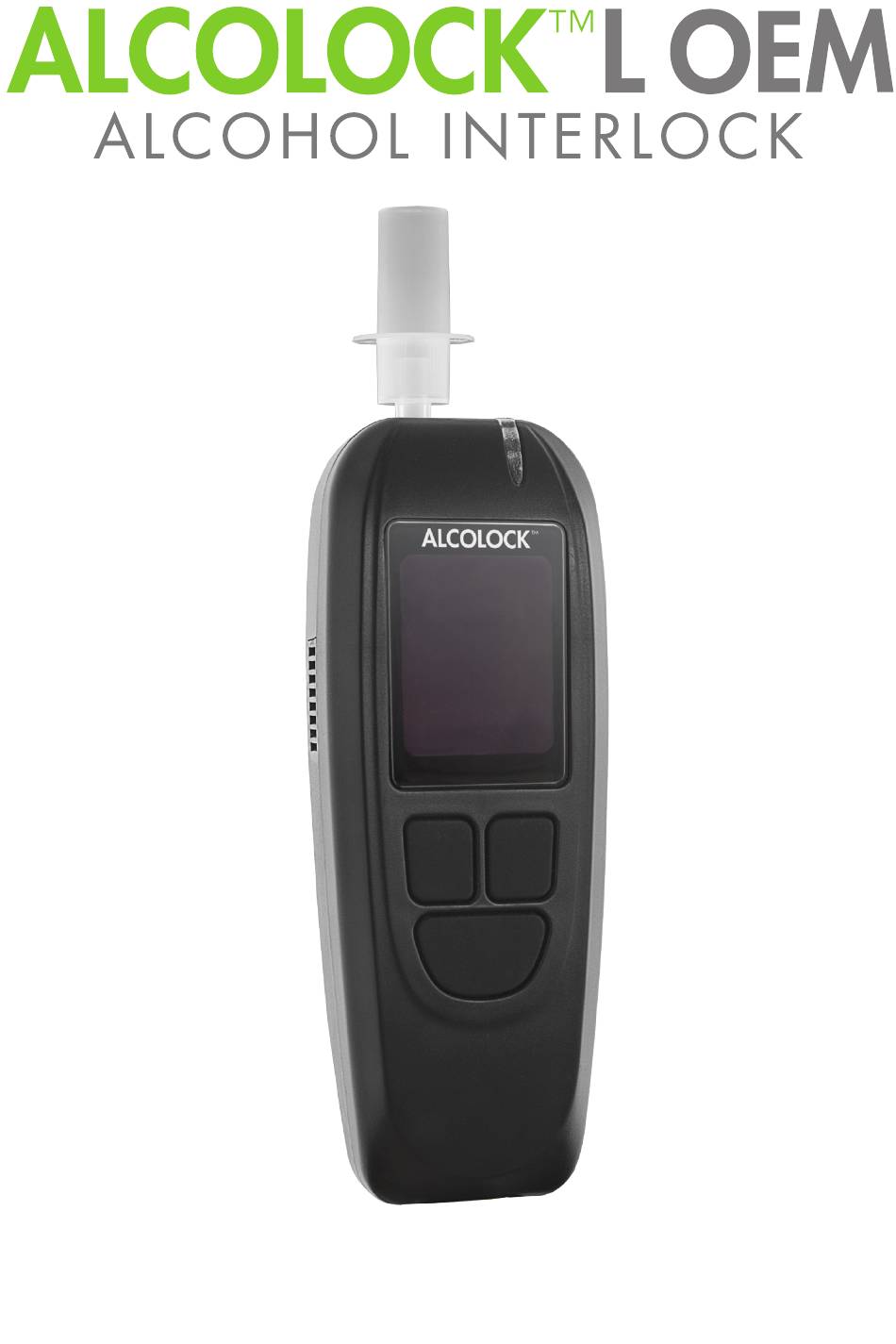

- Page 1 Instruction Manual...
- Page 2 F +1 416 619 3501 info@acs-corp.com acs-corp.com ACS, ALCOHOL COUNTERMEASURE SYSTEMS, ALCOLOCK and “The Molly” are trademarks of Alcohol Countermeasure Systems (International) Inc. and are used under license. Alcohol Countermeasure Systems is the trading style of Alcohol Countermeasure Systems Corp.

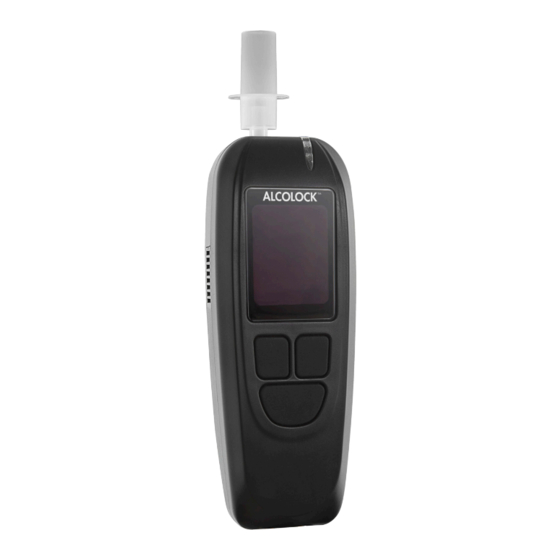

- Page 3 ALCOLOCK L OEM HANDSET COMPONENTS...
-
Page 4: Table Of Contents
TABLE OF CONTENTS ALCOLOCK L OEM HANDSET COMPONENTS .............iii PRODUCT PROFILE ....................2 SAFETY AND PRECAUTIONS ..................3 GETTING STARTED ....................4 Alcohol Influence on Testing ................4 Terms Used in This Manual .................4 Maintenance ......................5 Operating Temperature ..................5 Battery Voltage ....................5 Handset Cable.....................5 To Disconnect the Handset .................6... - Page 5 Troubleshooting Table ..................17 Error Messages ....................18 TECHNICAL FEATURES ..................19 Reset Codes......................19 Emergency Override ..................19 Dealer Service ....................19 Other .........................19 DISPOSAL OF DEVICE AT END OF SERVICE LIFE ..........19 ORDERING PARTS ....................19 INDEX........................20 SERVICE RECORD ....................21...
-
Page 6: Product Profile
(BrAC) below the preset limit. The ALCOLOCK L OEM alcohol interlock device will never cause the vehicle engine to stop. The ALCOLOCK L OEM device consists of a handset to conduct breath alcohol tests and to communicate with the driver, and an Electronic Control Unit (ECU) that is connected with the power and control circuits of the vehicle. -
Page 7: Safety And Precautions
ALCOLOCK L OEM device to minimize interference, particularly when performing a test • Do not attempt to tamper with or to circumvent the device NOTE: The ALCOLOCK L OEM device WILL NOT shut off your vehicle during operation. ALCOLOCK L OEM... -
Page 8: Getting Started
GETTING STARTED ALCOHOL INFLUENCE ON TESTING WARNING! Drinking alcohol and eating foods containing alcohol may cause a failed alcohol test. Some factors that may affect the results of a test (because of possible residual alcohol in the mouth) are consumption of medicines, drops, gum, smoking, and using mouthwash or mouth spray. -
Page 9: Maintenance
MAINTENANCE During field use, handle the ALCOLOCK L OEM device with care and keep it clean and dry at all times. Clean the handset with a damp cloth and mild soap. Do not use abrasive cleaners or solvents. OPERATING TEMPERATURE The ambient operational temperature range is -40°C and +85°C. -
Page 10: To Disconnect The Handset
TO DISCONNECT THE HANDSET 1. Make certain that the vehicle engine is off. 2. With the back of the handset facing you, hold the connector by the plug and press and hold the “PUSH” button. PUSH 3. Gently pull the handset connector to disengage the connection. WARNING! Disconnection of the cable when the engine is running is unsafe. -
Page 11: Inserting The Mouthpiece
Slide the mouthpiece into place and turn it slightly to secure. Do a visual check to make certain that the mouthpiece is fitting properly. WARNING! Using a contaminated mouthpiece may affect the results of the breath test. ALCOLOCK L OEM... -
Page 12: Performing A Test
PERFORMING A TEST Power up the device by pressing any navigation button. A Wait… message will remain on the display until the handset warms up. The indicator light will flash amber. The indicator light flashes green and the handset displays Blow for 5 seconds when it has reached its optimal temperature. -
Page 13: Results Displayed
WARNING! Do not attempt another breath test until you are certain that your alcohol level is under the preset limit. A second failed breath test may result in a longer lockout time. ALCOLOCK L OEM... -
Page 14: Restart Without A Breath Test
RESTART WITHOUT A BREATH TEST If the vehicle engine is turned off, you may restart it without providing another breath test, for 30 minutes (programmable value). This safety feature is helpful if the vehicle engine stalls or if you have to stop frequently. Before restarting the vehicle engine, observe one of the following messages on the display: RESTART AVAILABLE... -
Page 15: Drive Safely
Lockout provided. 0:59 WARNING! Do not attempt another breath test until you are certain that your alcohol level is under the preset limit. A second failed test may result in a longer lockout time. ALCOLOCK L OEM... -
Page 16: Sharing A Vehicle
SHARING A VEHICLE Drivers with their own handset can operate the same vehicle without reprogramming the ALCOLOCK L OEM device. All the custom settings are downloaded into the ECU when a new handset is connected. The handset can be changed with the motor on or off. -
Page 17: Overriding The Interlock
3. The handset beeps and displays Start Engine. A breath test will be required again the next time the engine is started. If the code is incorrect, the handset beeps and there is no action. Verify the code is correct and re-enter. Cancel (hold) ALCOLOCK L OEM... -
Page 18: Menu Options
3. Press the bottom button to save the setting and exit the Volume menu. WAKE-UP MODE (OPTIONAL) The ALCOLOCK L OEM handset may be set for up to three wake-up times per day. This helps to ensure that the handset is warmed up and ready before you enter the vehicle. -
Page 19: Sleep Mode
When Blow for 5 Seconds is displayed, press and hold the left and right buttons until the screen is blank. The ALCOLOCK L OEM device also allows you to set the time at which Sleep mode will automatically activate. 1. From the Blow for 5 seconds screen, press and hold the left button to access the Main Menu. -
Page 20: Time
3. Press the bottom button to save the time setting and exit the Time menu. LANGUAGE The ALCOLOCK L OEM handset is available in multiple languages. The selections are programmed at the factory. 1. Press and hold the left button to access the Main Menu. Press the left or right button to scroll to Language. -
Page 21: Exit
TROUBLESHOOTING AND SERVICE ACCESSING MAINTENANCE FUNCTIONS The ALCOLOCK L OEM system maintenance functions can only be accessed by your dealer using a System Code provided from ACS. This code is randomly generated and changes daily. The use of this function is stored in the log. -
Page 22: Error Messages
ERROR MESSAGES The ALCOLOCK L OEM device may not accept a breath test (and may display error messages instead). To minimize errors, make certain that the handset is connected properly, the vehicle battery is in good condition, and that mobile phones are not in use during breath tests. -
Page 23: Technical Features
DISPOSAL OF DEVICE AT END OF SERVICE LIFE Return to your dealer for removal of the ALCOLOCK L OEM device from your vehicle. Following the removal, proper disposal of the device (ECU, handset, or both) at the end of its service life will be done by the Manufacturer. -
Page 24: Index
INDEX Performing Test, 8 Accepted Breath Test, 8 Precautions, 3 Alcohol Influence, 3, 4 Reset Codes, 19 Battery Voltage, 5 Restart, 10 RF Interference, 3 Retests, 10 Dates, 14 Disposal, 19 Safety, 3 Service Dates, 17 Emergency Override, 13 Service Record, 21-23 Error Messages, 18 Sleep, 15 Start Engine, 9... -
Page 25: Service Record
SERVICE RECORD DATE SERVICE PERFORMED INITIALS ALCOLOCK L OEM... - Page 26 DATE SERVICE PERFORMED INITIALS INSTRUCTION MANUAL...
- Page 27 DATE SERVICE PERFORMED INITIALS ALCOLOCK L OEM...
- Page 28 IRM-ENG-60-000495-A © 2013...
