- Page 1 ALCOLOCK SERIES B-2 Calibration manual...
- Page 3 F +1 416 619 3501 info@acs-corp.com acs-corp.com ACS, ALCOHOL COUNTERMEASURE SYSTEMS, ALCOLOCK, ALCOSIM and the “Molly” are trademarks of Alcohol Countermeasure Systems (International) Inc. and are used under license. Alcohol Countermeasure Systems is the trading style of Alcohol Countermeasure Systems (International) Inc.

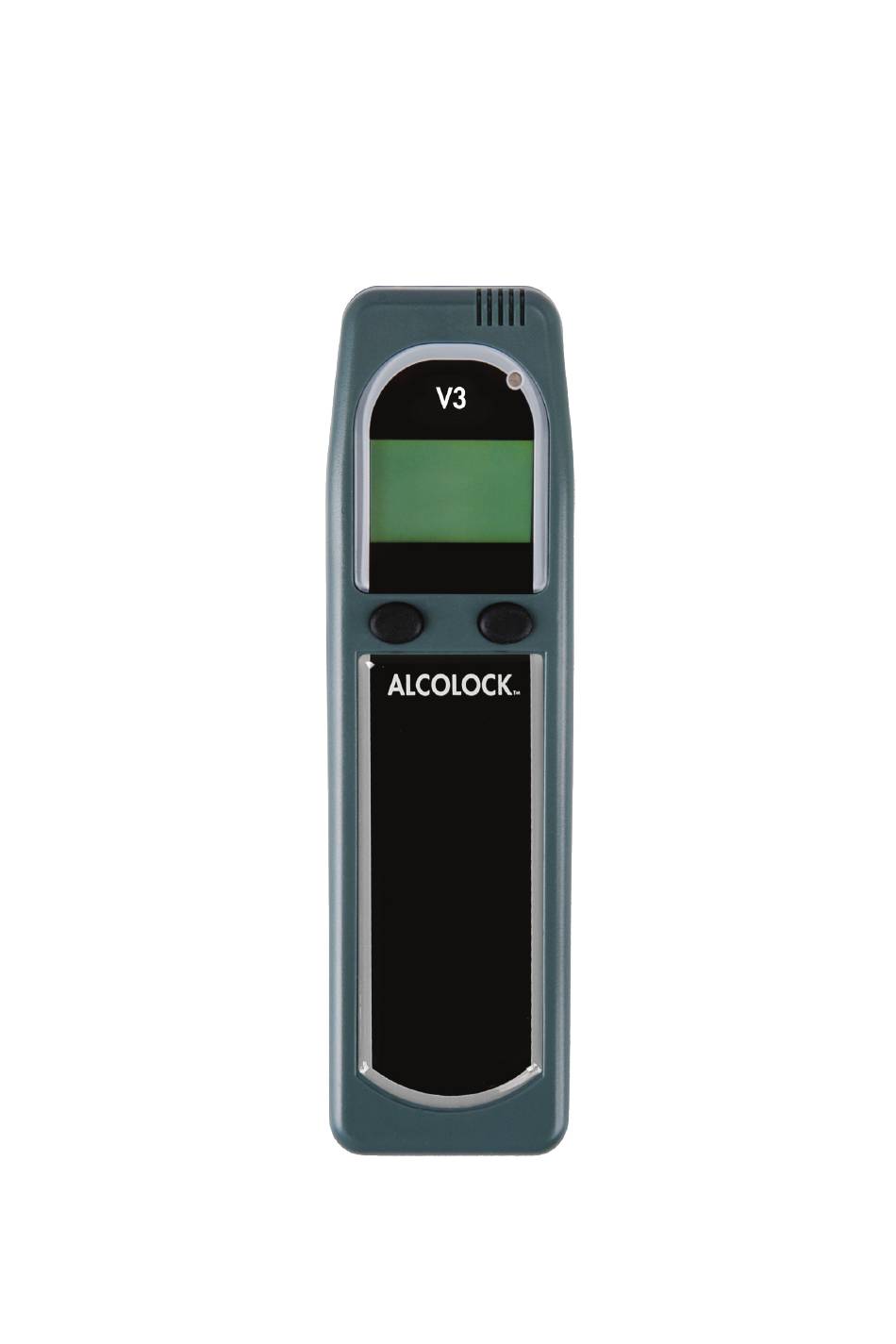

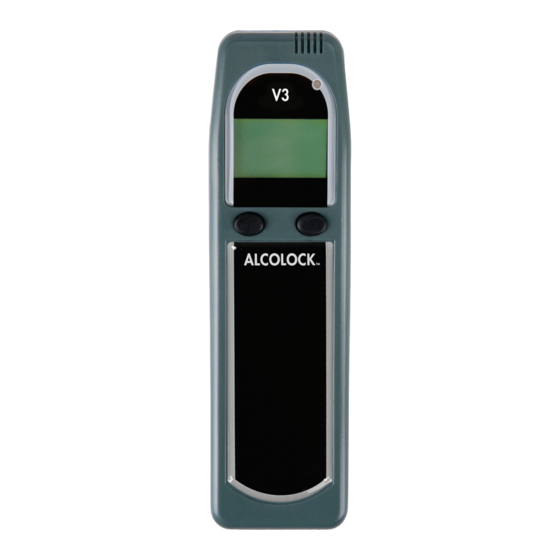

- Page 4 FRONT VIEW Mouthpiece SIDE VIEW Status LED Sampling port Display Left navigation Right navigation button button Air vent Cable input port *The navigation buttons permit the selection of options shown on the display.
-
Page 5: Table Of Contents
TABLE OF CONTENTS Safety and precautions ....................1 General........................1 Compressed gas safety....................1 ALCOSIM setup, usage and disassembly ..............1 Alcohol reference solution ..................2 Cleaning the ALCOSIM breath alcohol simulator .............3 Calibration types ......................3 Handset preparation......................3 A. With the ALCOLOCK V3 download station ............3 B. -
Page 6: Safety And Precautions
The ALCOSIM breath alcohol simulator is intended for authorized technicians only • Use the ALCOSIM simulator for its intended purpose only • Use parts specified by ACS only • Before use, check that the simulator power supply rating (24Vdc, 2.5A) conforms to local supply ratings •... -
Page 7: Alcohol Reference Solution
• Recommended: use the simulator within room temperature environments (23 °C ± 2 °C and approx. 50% RH) • The solution container, tubing and mouthpieces must be completely dry; even slight condensation may disrupt calibration • Fit tubing or mouthpieces on an aquarium air pump or a similar setup for drying •... -
Page 8: Cleaning The Alcosim Breath Alcohol Simulator
CLEANING THE ALCOSIM BREATH ALCOHOL SIMULATOR • Disconnect the ALCOSIM breath alcohol simulator power before cleaning • CAUTION! After disconnecting the ALCOSIM simulator power, allow 10 to 15 minutes for the heating element to cool off before detaching the top housing •... -
Page 9: By Maintenance Code (Without The Alcolock V3 Download Station)
If the date and time are correct, press OK – the Select method menu is displayed. If the date or time is incorrect, press Set to automatically synchronize handset time with download station time and press OK – the Select method menu is displayed. - Page 10 In the Date / Time screen, do I or II: If the date and time are correct, press OK – the Select type menu is displayed. If the date or time is incorrect, change as follows: NOTE: If a tachograph is installed, the date and time cannot be changed. a.
-
Page 11: Gas Standard
105 L, 70 F cylinder of alcohol gas standard 0.24 mg/L (50 mg/dL), ACS #95-000426 • Regulator valve assembly (6 L/min flow rate): ACS #94-000225 (trigger); ACS #94-000226 (push button) CYLINDER SETUP Remove the protective cap of the canister and screw on the regulator valve assembly. - Page 12 Wait is displayed followed by a 2 minute warm-up. The handset is ready for calibration when Turn on gas is displayed. Insert the rigid delivery tube from the regulator valve into the mouthpiece port of the handset. Hold the handset in place for the next step. Press and hold the regulator valve down to release the gas while still holding the handset.
-
Page 13: Alcohol Reference Standard (Ars)
ALCOHOL REFERENCE STANDARD (ARS) CALIBRATION MATERIALS • Alcohol Reference Solution, 50 mg% ACS #95-000305 • ALCOSIM kit (includes the ALCOSIM breath alcohol simulator and all accessories): • Australian kit ACS #94-001200 • UK kit ACS #94-001210 • European kit ACS #94-001220 •... -
Page 14: Alcosim Breath Alcohol Simulator - Overview
ALCOSIM BREATH ALCOHOL SIMULATOR – OVERVIEW The ALCOSIM simulator is used by technicians to calibrate and verify breath alcohol testing devices. The simulator is a wet-bath calibration / verification device. PARTS DIAGRAM Illuminated Air inlet tube ON/OFF switch Wide viewing angle 7-segment LCD Air outlet tube Baffle plate... -
Page 15: Alcohol Reference Solution - Overview
Supplied in 500 mL tamper-sealed bottles • Premixed and ready for immediate use with the ALCOSIM simulator • This calibration requires a bottle of 50 mg% solution For availability, pricing and ordering, contact your local authorized service provider or visit acs-corp.com. CALIBRATION MANUAL... -
Page 16: Alcosim Setup And Operation Steps
ALCOSIM SETUP AND OPERATION STEPS With the ALCOSIM breath alcohol simulator power disconnected, turn the top housing counter clockwise (to the left) and detach it from the container. Add the entire contents of the 500 mL bottle of 50 mg% alcohol reference solution into the ALCOSIM solution container. -
Page 17: Alcohol Reference Standard (Ars) Calibration
ALCOHOL REFERENCE STANDARD (ARS) CALIBRATION See the “Handset Preparation” section of this manual if you are using the ALCOLOCK V3 Download Station or a maintenance code. The Select value menu contains the Alcohol Reference Standard (ARS) options. Press Next to scroll to 50mg% and press Select. The display will count down 2 minutes and then show Ready with a solid green indicator light. -
Page 18: Troubleshooting
In the event of a calibration failure using the ALCOSIM simulator, consult the “Troubleshooting — Error Codes” section of the ALCOSIM Breath Alcohol Simulator Instruction Manual (ACS #60-000180). If a calibration fails while using an alcohol gas standard cylinder, it may be due to the following: •... - Page 20 CAM-ENG-60-000587-B © 2013 - 2014...
