7. While standing behind the laser, power up the system as normal.
8. Project a large white circle onto a laser safe surface. Use the least amount of power that enables all
the laser modules.
9. Using a hex key, reach down into the laser from above; adjust the alignment hex button screws on
the combining optics until all the beams overlay each other perfectly.
Take extra care to avoid interrupting the laser beam with any tools. Class 4 laser reflections
!
could result.

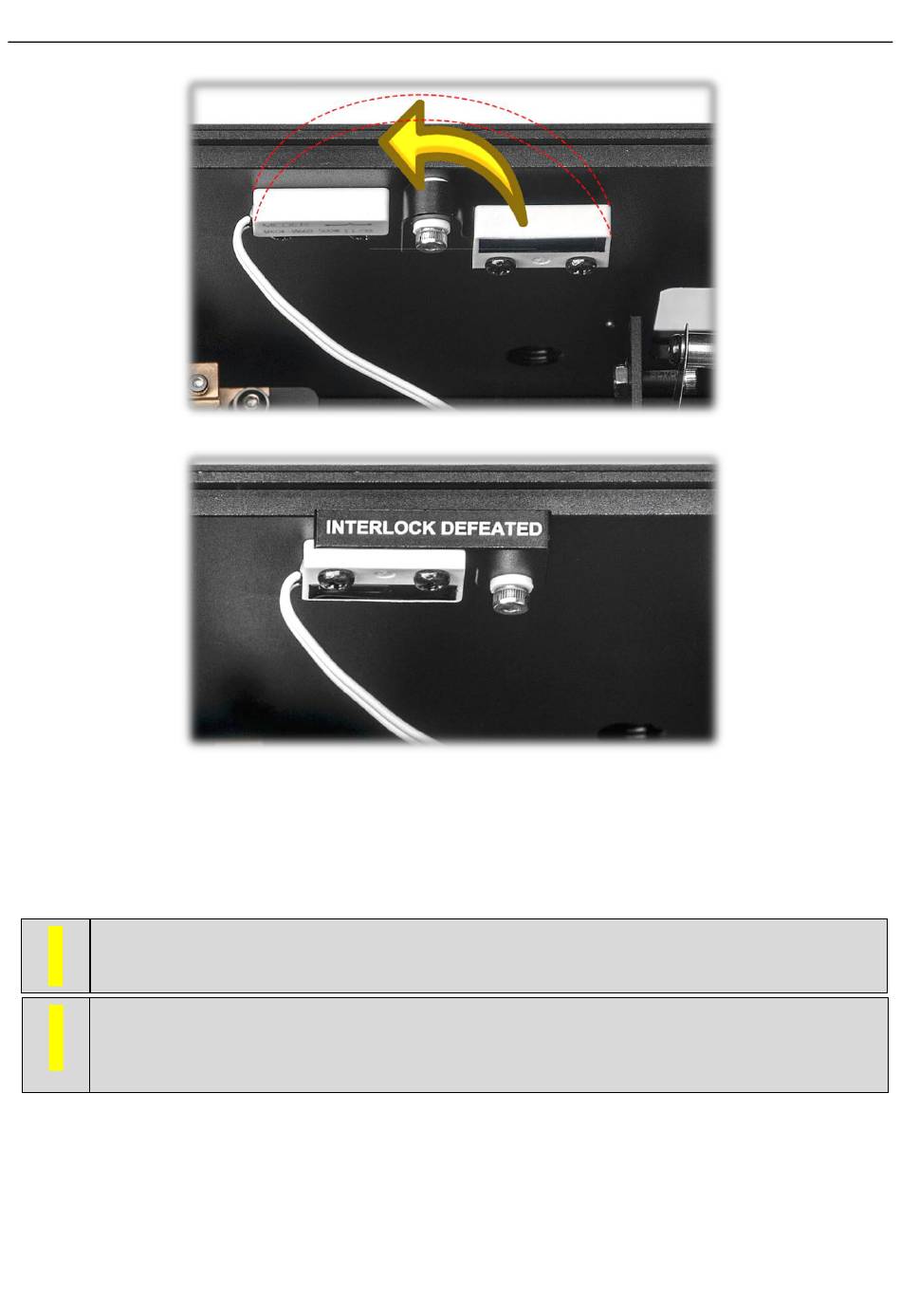

Danger – after defeating the interlock system and having the housing of the laser open,
!
certain laser reflections happen that can cause skin burn or damaging your eyes. Wear
safety goggles and avoid skin exposure while adjusting the modules alignment.
