By using a hex key, you can align the modules separately by hand. Be sure to not apply too much pressure
as it could damage the dichroic filters. Remove the bolts from the front panel and gently remove the front
panel to get a better angle for adjusting the filters.
1. Once the alignment is satisfactory then power down the system with the E-stop.
2. Flip the interlock defeats back to their normal position.
3. Replace the top panel and replace the hex button bolts.
Raw series Operation Manual (Revision 2020-7)

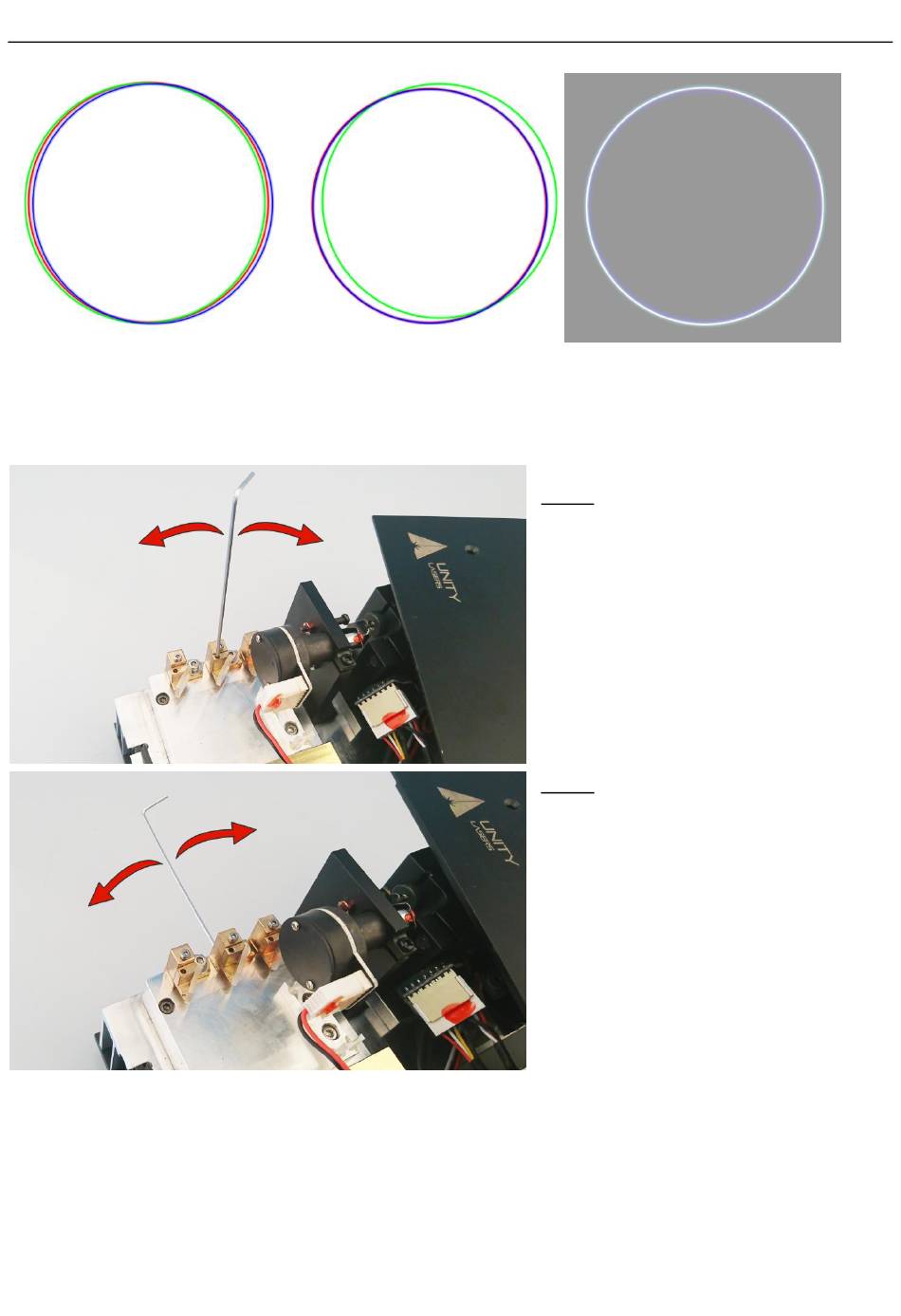

Y axis:
Following the picture on the left, use your
hex key that will fit the hole on the top of
the filter holder and apply pressure on the
dichroic filters while projecting the circle
to the desired position.
X axis:
Apply the same procedure as used while
adjusting the X axis – locate the hole in
the filter holder and by using your hex key,
apply gently pressure to get the best
aligning results.
