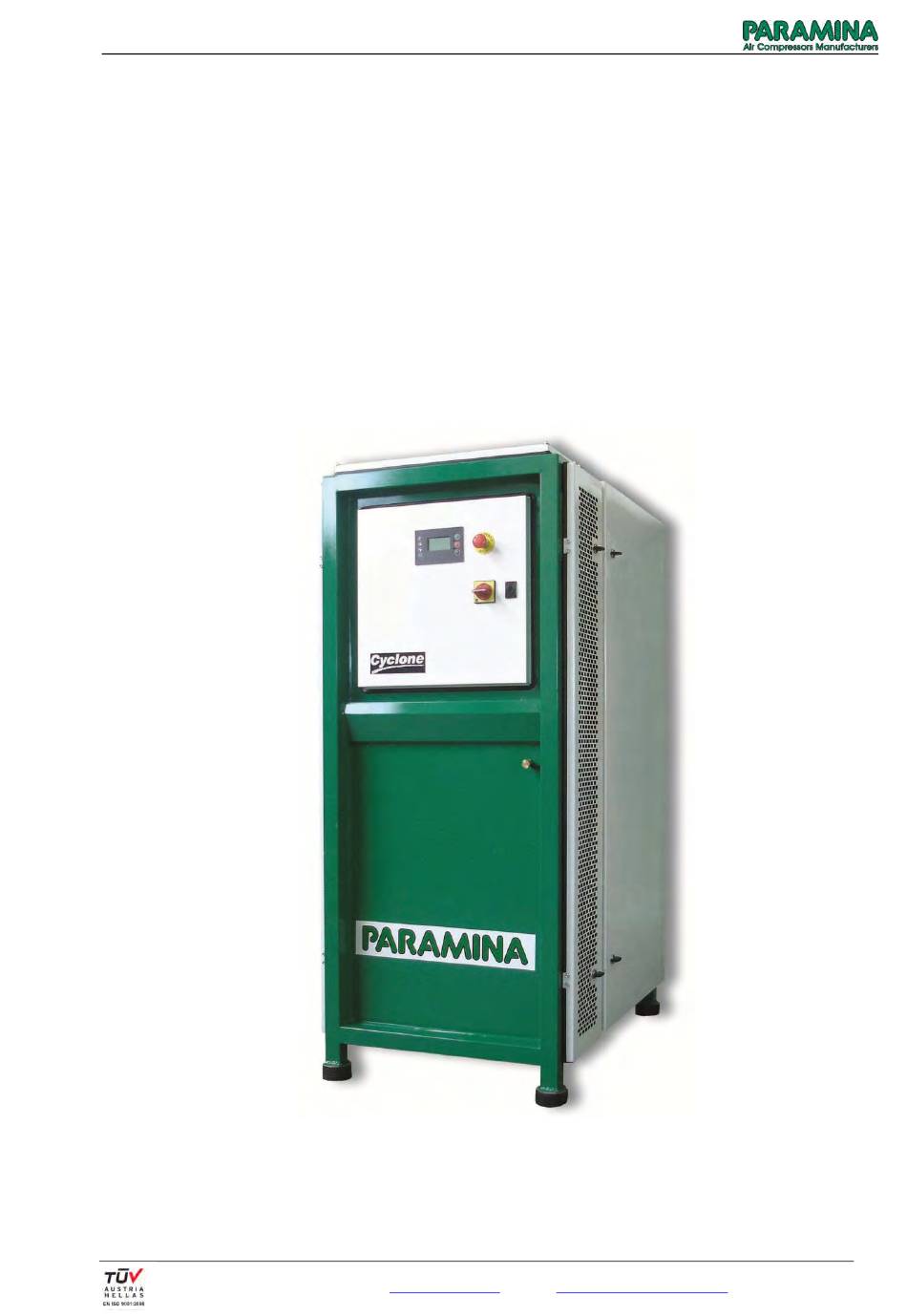

User Manual - Cyclone Silent -
1-2018 edition
USER MANUAL
CYCLONE
SILENT
PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1
1
Fax: 0030 210 5575868, email:
service@paramina.gr
- website:
www.paramina-compressors.com

Advertisement

Table of Contents
loading

Related Manuals for Paramina CYCLONE SILENT 24E

Summary of Contents for Paramina CYCLONE SILENT 24E

  • Page 1 User Manual - Cyclone Silent - 1-2018 edition USER MANUAL CYCLONE SILENT PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...

  • Page 2: Table Of Contents

    Long period storage of the compressor Operation of the compressor after a long period Air filter Belt adjustment PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
  • Page 3 7. Spare Parts Catalog 8. P&I Diagram 9. Cooling air inlet/outlet – Overall dimensions 10. Certificates 11. Electrical Drawing PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...

  • Page 4: General Instructions

    1. General Instructions CAUTION: High pressure pneumatic device The PARAMINA Cyclone compressor is a high pressure air-compressor offering high quality breathing air. It is designed according to EU directive 2006/42/EC for the safety of machinery. Noise complies with 2005/88/EC directive.

  • Page 5: Technical Data

    498 - 510 Kg 551 – 585 Kg 498 - 520 Kg 546 - 570 Kg 560 Kg PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...

  • Page 6: User Instructions

    Before any work, turn earplugs off mains supply RISK of rotating parts TECHNICAL REQUIREMENTS the operator must take into account PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...

  • Page 7: Basic Safety Recommendations

     Ensure safe and environmental friendly disposal of consumable materials and old spare parts. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr...

  • Page 8: Special Attention

     The compressor is not made for use by the sea. In such a case, spray the unit with anticorrosive material. 3.5. Safety Regulations The PARAMINA Cyclone compressor is a high pressure air-compressor and it is made according to EU directive 2006/42/EC for the safety of machinery. Noise complies with 2005/88/EC directive.

  • Page 9: Installation - Operation

    BA final filter at the final pressure (after fourth stage) which incorporate molecular sieve for dehumidification and activated carbon for air purification. All functions of Cyclone are completely automated through Paramina Controller (digital control panel). You simply adjust the desirable maximum operating pressure and press the start button.

  • Page 10: Ventilation

    User Manual - Cyclone Silent - 1-2018 edition 4.3. Ventilation   Natural ventilation  Forced ventilation (fan) PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...

  • Page 11: Transport And Lifting

    Exercise great caution when lifting and transporting the 2. Two support beams underneath compressor. 3. The lifting ropes must not squeeze the compressor casing! PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...

  • Page 12: Cylinder Filling Procedure

    2. Connect the cylinder, having turned off both filling hose lever valve (1) and the cylinder’s valve, and start the compressor by pressing the Start button. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr...

  • Page 13: Automatic Start / Stop

    By turning the key (1) on the left the user can fill at 225 bar max. pressure and by turning the same key on the right, the user fills at 350 bar max. pressure. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr...

  • Page 14: Condensate Drainage

    BA filter housing/cartridges. Open this drain every 5 continuous working hours and after compressor shut down. Auto drains (4pcs) Manual drains (4pcs) PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...

  • Page 15: Electronic Controller

    Stop Sequence Low Pressure High Pressure Start Seq Start Seq Time Start Button Start Button Start Button PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...

  • Page 16: Fully Automatic Mode

    PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...

  • Page 17: Display

    5.2.2. LED Indicators STATUS: Green, adjacent to Start and Stop buttons FAULT: Red, adjacent to Stop and Reset buttons PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website:...

  • Page 18: Display Index

    4 character numeric, 7 segment Item Unit: 3 character alphanumeric, 14 segment 14 Segment Display Character Set: 7 Segment Display Character Set: PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...

  • Page 19: Operational Display Symbols

    Excess pressure Motor Power failure Above set temperature limit Service due, maintenance Lubrication, oil, oil level Filter, filter service PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...

  • Page 20: Display Structure And Menu Navigation

    An invalid code will return the display to normal operational mode; page 0. ACCESS LEVEL CODE = 0100 PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...

  • Page 21: Menu Mode Navigation

    Item is view only (non adjustable) or in instances where the item cannot be adjusted while the compressor is in the operational STARTED state. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr...

  • Page 22: P00 - User Menu

    ** Minimum differential between load and unload set points is 5 bar for a 225/350 bar machine, and 0.5 bar for a 35 bar machine. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr...

  • Page 23: P02 - Error Log Menu

    Delivery pressure high level bar/psi 60.0 395.0 330 bar 59.5 * All values shown in display column are ONLY examples. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...

  • Page 24: Service Hours Reset Procedure

    After these procedures we press the reset button. The compressor is now ready to operate (the red led will switch off). PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...

  • Page 25: Fault Messages

    “3”. 0 0 0 0 fault type fault description number input number input location number fault category number PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
  • Page 26 Fault type fault type description shutdown trip error alarm (or service message alarm) start inhibit run inhibit load inhibit PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...

  • Page 27: Immediate Stop Shutdown Errors

    5.9 Special function service alarms Er:4814 A OIL service due alarm Er:4824 A final BA FILTER due alarm PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
  • Page 28 5.9 Special function service alarms Er:4814 A OIL service due alarm Er:4824 A final BA FILTER due alarm PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...

  • Page 29: Maintenance

    According to the environment it is recommended to change the air intake cartridge at the end of season. Air intake cartridge - code: 109460302 PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...

  • Page 30: Belt Adjustment

    100 hours. Pressing in the center of the belt’s length applying 5 Kg of force, it should not give way more than 20 mm. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...

  • Page 31: Oil Change

    Old Version up to serial numbers: 1424012 (CYCL.24) – 1430084 (CYCL.30) – 1324011 (CYCL.24) – 1430083 (CYCL.30) – 1436009 (CYCL.36) 1436008 (CYCL.36) PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...

  • Page 32: Filters Maintenance

    5. Clean the inside of the filter housing with a clean cloth. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr...

  • Page 33: Replacement Of Coalescing Cartridge And Active Carbon - Molecular Sieve

    11. Screw the cartridge connector & cover on the tube connector (on top of the coalescing cartridge). 12. Clean the inside of the filter housing with a clean cloth. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr...
  • Page 34 *Back-up o-ring head & base - BA filter Φ90x770 (only for s.n. till 1424012 – CYCL.24, 1430084 – CYCL.30 & 1436009 – CYCL.36) PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr...
  • Page 35 13. Screw the filter head carefully by hand with light pressure until it fits evenly to the filter housing. Do not screw really tight, while screwing cartridges or connectors inside filter’s housing. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr...
  • Page 36 19. Lay a small amount of silicone grease on the o-rings of the filter head. If there is a trace of damage on the o-rings, replace. 20. Install the spring in between the filter head and the cartridge. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
  • Page 37 BA Filter Φ110x495 head & base. Option 3 (optional version from begin of 2018): Replacement of active carbon – molecular sieve cartridge PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
  • Page 38 Replacement of coalescing cartridge & active carbon – molecular sieve cartridge 1. Unscrew the filter head counter clockwise. 2. Remove the filter head. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
  • Page 39 Tube connector 127566942 O-ring f.h. (filter head and base) 190000080 Manual drain complete with seat 190008112 Manual drain’s seat PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
  • Page 40 BA cartridge lifetime may change as humidity & temperature levels change. In summer a reduction in service hours is recommended, see above chart for examples relative to temperature. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr...
  • Page 41 User Manual - Cyclone Silent - 1-2018 edition Air Flow Diagram PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...

  • Page 42: General Service Instructions

    Never mix different types of oil.  The compressor unit is delivered filled with PARAMINA HPS OIL (Synthetic oil) with p.n.112001000. 3. After 12 months, you have to replace the coalescing cartridge and the air intake cartridge whether they have completed the required operating hours or not.

  • Page 43: Tightening Torque Value

    1-2018 edition 6.8 Tightening Torque Values The tables’ shows torques values for screw, bolts and fitting in general, please observe the PARAMINA ‘Assembly Methodology’ for the parts with the specific tightening torque, the parts with special tightening torque is marked with the proper value in PARAMINA ‘Assembly Methodology’.

  • Page 44: Maintenance Calendar

    2. Interstage & Final stage condensate separator lifetime is 20 years. Hydraulic Overpressure test, every 5 years. 3. BA Filter’s housing lifetime is 20 years. Hydraulic Overpressure test, every 5 years. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...

  • Page 45: Troubleshooting

    6.Solenoid valves stuck open 6.Clean - Replace 7.Unstable power supply - voltage 7. Check power supply fuse box PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
  • Page 46 5. Worn Cylinders 5. Check - Replace * Concerns only compressors equipped with separators part numbers 208501600, 208501610, 208501620 & 208704200. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website:...

  • Page 47: Spare Parts Catalog

    User Manual - Cyclone Silent - 1-2018 edition 7. Spare Parts Catalog Compressor Left Side View (1) PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
  • Page 48 * Cooling fan motor new complete sets (motor + fan + guard): p.n. 103369001 ** Installed externally in case of 2 BA filter towers order. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr...
  • Page 49 User Manual - Cyclone Silent - 1-2018 edition Compressor Right Side View (2) PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
  • Page 50 * See all BA filter’s parts and codes in pages 34, 37 & 39. 2pcs as an option. ** Go to page 65 for service kit installation instructions. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr...
  • Page 51 User Manual - Cyclone Silent - 1-2018 edition Compressor Back Side View (3) PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
  • Page 52 205300160 By pass pipe set when dryer are not connected * Go to page 65 for service kit installation instructions. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website:...
  • Page 53 User Manual - Cyclone Silent - 1-2018 edition Compressor Outside View (4) PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
  • Page 54 Cyclone Silent 24: 1524020, Cyclone Silent 30: 1530093, 1530094, 1530095, 1530096, 1530097, 1530098G, 1530099 Cyclone Silent 36: 1536021, 1536022, 1536023 PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website:...
  • Page 55 User Manual - Cyclone Silent - 1-2018 edition  Paramina DIN200/300 Connector Ends PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
  • Page 56 User Manual - Cyclone Silent - 1-2018 edition  Paramina Lever Operated Filling Valve PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
  • Page 57 User Manual - Cyclone Silent - 1-2018 edition  Compressor Block General PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
  • Page 58 User Manual - Cyclone Silent - 1-2018 edition Stages PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
  • Page 59 Pressure Valve Cap Low 511122004 Copper Washer 521122005 Cylinder Head 1 & 2 Stage 521157006 Valve Cover Gasket 521125005 Valve Cover PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
  • Page 60 Allen Screw M12x25 521157009 Gasket – side cylinder head 1 & 2 183700020 Flange 521136002 Flat Key – Wedge Crankshaft PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
  • Page 61 Hex Nut M16 * Supply / Order only as assembly - 4th stage piston complete = 141000031 (replaced 141000030) PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website:...
  • Page 62 User Manual - Cyclone Silent - 1-2018 edition PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
  • Page 63 User Manual - Cyclone Silent - 1-2018 edition Valid from serial numbers: Cyclone Silent 24E: 1624023, 30E: 1630101, 36E: 1636028 1682335 PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
  • Page 64 User Manual - Cyclone Silent - 1-2018 edition Valid from serial numbers: Cyclone Silent 24E: 1824029, 30E: 1830119, 36E: 1836044 PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website:...
  • Page 65 User Manual - Cyclone Silent - 1-2018 edition PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
  • Page 66 User Manual - Cyclone Silent - 1-2018 edition PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
  • Page 67 User Manual - Cyclone Silent - 1-2018 edition PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...

  • Page 68: P&I Diagram

    User Manual - Cyclone Silent - 1-2018 edition 8. P & I Diagram PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...

  • Page 69: Cooling Air Inlet/Outlet - Overall Dimensions

    User Manual - Cyclone Silent - 1-2018 edition 9. Cooling air – Dimensional Diagram PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...

  • Page 70: Certificates

    User Manual - Cyclone Silent - 1-2018 edition 10. Certificates PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
  • Page 71 User Manual - Cyclone Silent - 1-2018 edition PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
  • Page 72 User Manual - Cyclone Silent - 1-2018 edition PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
  • Page 73 User Manual - Cyclone Silent - 1-2018 edition PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
  • Page 74 User Manual - Cyclone Silent - 1-2018 edition PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...

This manual is also suitable for:

Cyclone silent 30eCyclone silent 36eCyclone silent 24e - 420bCyclone silent 30e - 420b
