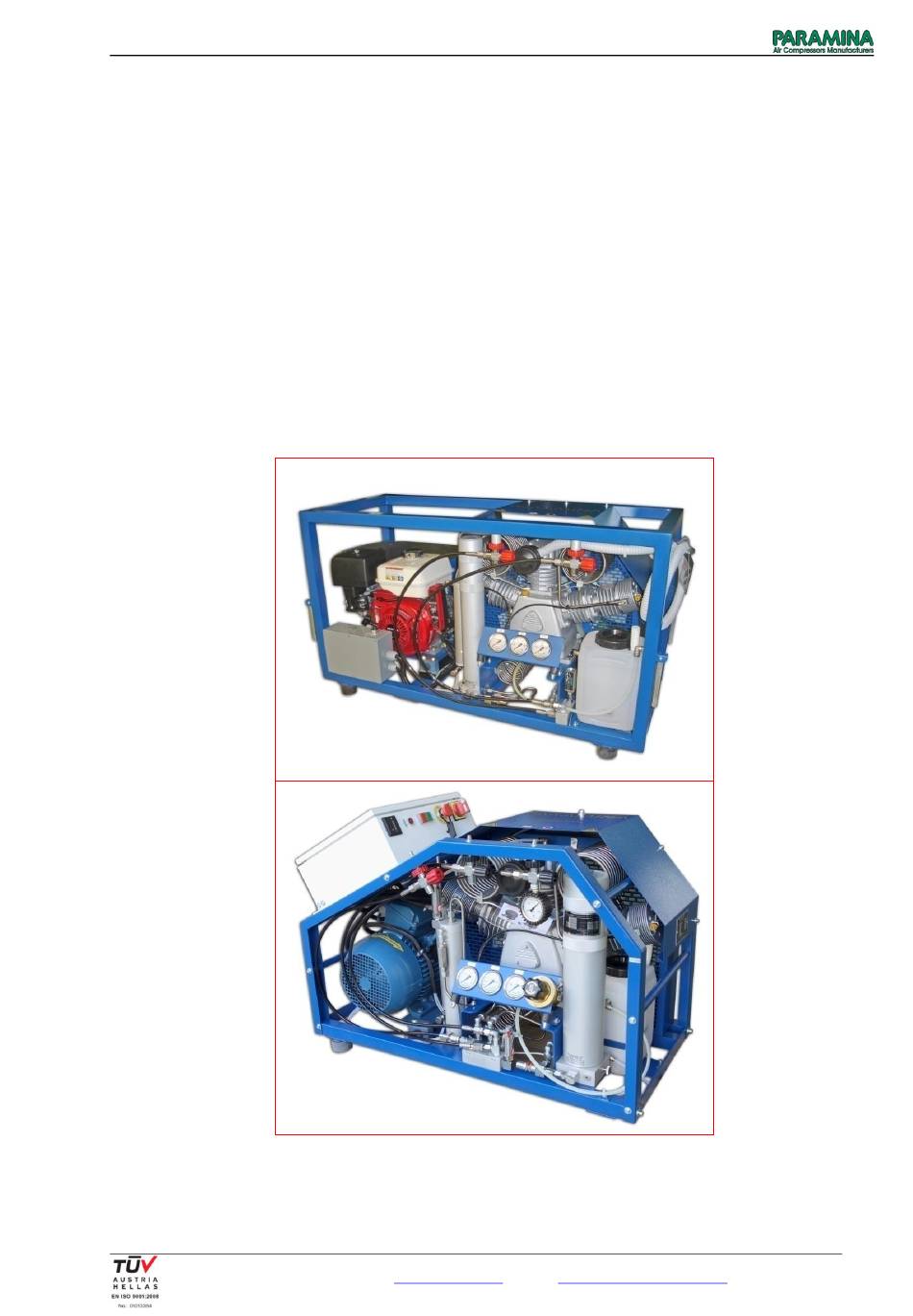

1. General Instructions CAUTION: High pressure pneumatic device The PARAMINA Typhoon Open compressor is a high pressure air-compressor offering high quality breathing air. It is made according to EU directives 2006/42/EC for the safety of machinery. Noise complies with 2005/88/EC directive.
185 - 191 Kg 185 - 191 Kg 187 - 211 Kg 171 Kg 189 Kg 198 Kg PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
Before any work, turn earplugs off mains supply RISK of rotating parts TECHNICAL REQUIREMENTS the operator must take into account PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
Portable compressors (if used on a boat/ship) must be stored under the deck after use. Safety Regulations The PARAMINA Typhoon Open compressor is a high pressure air-compressor and it is made according to EU directive 2006/42/EC for the safety of machinery. Noise complies with 2005/88/EC directive.
Smaller amount of oil means inadequate lubrication affecting the life duration of the compressor. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
Exercise great caution when lifting and transporting the 2. Two support beams underneath compressor. 3. The lifting ropes must not squeeze the compressor casing! PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
- Wrong direction of rotation will damage the compressor unit. - Check the direction of rotation every time the compressor is connected to the power supply. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr...
Do not disconnect the battery during compressor’s operation. Coils of solenoid valves (auto drains), will be destroyed (version with auto drains). PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr...
Start button. Then, first turn on the filling hose connector’s valve and then the one of the cylinder. 200bar filling PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
It controls the pressure through a pressure regulator (1) (0-345 bar outlet pressure) and gives the possibility to the user to fill 200 and 300 bar cylinders simultaneously. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr...
Page 15
Pressure switches adjustment: Auto Stop = Pressure switch 40-400 bar Auto Start / Stop = Pressure switch 30-500b dual PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website:...
(2) 1,5 sec = 10(%). Respectively the numerous at discharge time (1) are at a percentage of 15min, so 15min = 100(%) PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
Page 17
Pause Time = 20 min Signal Time = 2 – 3 seconds – set signal time first Important Note: Do not change manufacturer adjustments. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
Page 18
(low oil level in engine or on compressor, high pressure on final stage, engine protection activated, lack of fuel, or any other reason) DO NOT RUN THE COMPRESSOR WITH BATTERY DISCONNECTED PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
109460302 Protective cap for air intake filter of electric models. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
In order to adjust the belts, screw the bolt (1) so as to adjust the spring until the belt reaches proper tension as per drawing above. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr...
Pour new oil (2,2 lit.) inside the compressor block through the yellow plug (3) till the upper part of the oil sight glass (1). Screw the plug (3) at the same position again. Now you are ready to restart the compressor. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
A. Unscrew the bolts (1) from both sides of electric box. B. Cut the ties (2) from all cables to release. C. Now you can lift the electric box. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
8. Clean the inside of the filter housing with a clean cloth. 9. Screw the filter housing carefully until securely fastened onto the base. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr...
Page 25
12. Clean the inside of the filter housing with a clean cloth. 13. Screw the filter housing carefully until securely fastened onto the base. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr...
Do not screw really tight, while screwing cartridges or connectors inside filter’s housing. FILTER HEAD & FILTER HOUSING SHOULD BE ADJOINED ON TOP WHEN REINSTALLING. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr...
Page 29
Do not screw really tight, while screwing cartridges or connectors inside filter’s housing. FILTER HEAD & FILTER HOUSING SHOULD BE ADJOINED ON TOP WHEN REINSTALLING. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr...
Page 30
BA cartridge lifetime may change as humidity & temperature levels change. In summer a reduction in service hours is recommended, see above chart for examples relative to temperature. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr...
Page 31
User Manual - Typhoon Open – 01/2018 edition Air Flow Diagram PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
Do not screw really tight, while screwing cartridges or connectors inside filter’s housing. FILTER HEAD & FILTER HOUSING SHOULD BE ADJOINED ON TOP WHEN REINSTALLING. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr...
Page 33
20. Screw the filter head carefully by hand with light pressure until it fits evenly to the filter housing. Do not screw really tight, while screwing cartridges or connectors inside filter’s housing. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr...
BA Filter Φ110x495 head & base. Option 4 (optional equipment of Typhoon compressors – Ø110x495 BA Filter): Replacement of active carbon – molecular sieve cartridge PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
Page 35
4. Remove the A.C.-M.S. cartridge by pulling upwards with the special handle. Before throwing away the used cartridge, do not forget to remove the cartridge connector. 5. Unscrew and remove the filter housing from filter’s base. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
Page 36
Tube connector 127616882 O-ring filter head & base 190000080 Manual drain complete with seat 190008112 Manual drain’s seat PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
Page 37
BA cartridge lifetime may change as humidity & temperature levels change. In summer a reduction in service hours is recommended, see above chart for examples relative to temperature. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr...
Page 38
User Manual - Typhoon Open – 01/2018 edition Air Flow Diagram PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
Never mix different types of oil. The compressor unit is delivered filled with PARAMINA HPS OIL (Synthetic oil) with p.n.112001000. 3. After 12 months, you have to replace the coalescing cartridge and the air intake cartridge whether they have completed the required operating hours or not.
01/2018 edition Tightening Torque Values The tables’ shows torques values for screw, bolts and fitting in general, please observe the PARAMINA ‘Assembly Methodology’ for the parts with the specific tightening torque, the parts with special tightening torque is marked with the proper value in PARAMINA ‘Assembly Methodology’.
2. Interstage & Final stage condensate separator lifetime is 20 years. Hydraulic Overpressure test, every 5 years. 3. BA Filter’s housing lifetime is 20 years. Hydraulic Overpressure test, every 5 years. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
User Manual - Typhoon Open – 01/2018 edition 6. Spare Parts Catalog Electric Version PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
Page 45
** 2pcs in dual pressure option *** Go to page 62 for service kit installation instructions. **** Go to page 63 for service kit installation instructions. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
Page 47
User Manual - Typhoon Open – 01/2018 edition Petrol Version PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com Image 3...
Page 48
V-Belt * According to compressor’s serial number. 182451921 Cooling fan blades 3.26 136368001 Flywheel 105009002 Fan guard set PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
Page 49
** Open 15P: 1pc - Open 18P:2pcs *** Go to page 61 for service kit installation instructions **** Go to page 62 for service kit installation instructions PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
Page 50
User Manual - Typhoon Open – 01/2018 edition Diesel Version PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Image 4 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
Page 51
* See all BA filter’s part numbers in page 26,30, 34 & 36 ** Go to page 61 for service kit installation instructions *** Go to page 62 for service kit installation instructions PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
Page 52
Stage (go to page 63 for drawing) 219000022 Safety valve 2nd - 100bar series @45bar 137000040 BA filter cartridge 306049631 Coalescing pre-filter cartridge PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
Page 53
5,5 kW Electric box c/w Start/Stop button & motor thermal 181357212 overload protection * See all BA filter’s parts and codes in pages 26,30, 34 & 36. PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website:...
Page 54
Part Nr. Description 208704200 stage Condensate separator, max. 420 bar 127121422 O-ring 3 stage Condensate separator 142101199 Sintered Filter PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
Page 55
User Manual - Typhoon Open – 01/2018 edition Compressor Block Drawing 1a: Compressor block PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
Page 56
User Manual - Typhoon Open – 01/2018 edition Drawing 1b: Compressor block Stages PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1 Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com...
