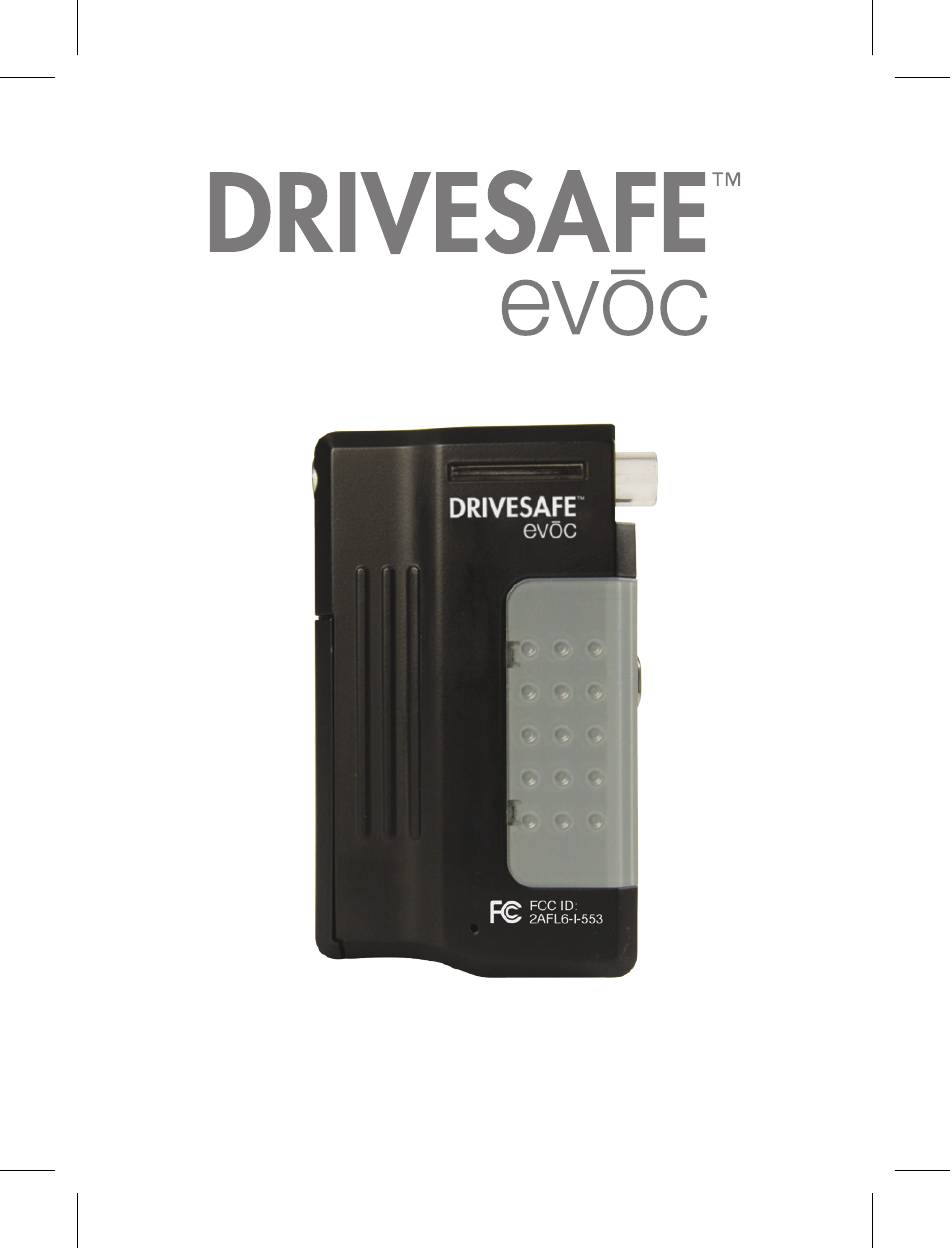

- Page 1 Instruction manual...
- Page 2 L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Certification The DRIVESAFE evōc and other breath alcohol testing products of Alcohol Countermeasure Systems (ACS) comply with international standards for function and safety. For more details, contact ACS.
- Page 3 Los Angeles, CA 90025 1-888-937-9646 customerservice@alcolockusa.com alcolockusa.com ACS, ALCOHOL COUNTERMEASURE SYSTEMS, DRIVESAFE and the “Molly” are trademarks of Alcohol Countermeasure Systems (International) Inc. and are used under license. Alcohol Countermeasure Systems is the trading style of Alcohol Countermeasure Systems (International) Inc.
-
Page 5: Table Of Contents
TABLE OF CONTENTS Safety and precautions ..........1 Breathalyzer summary ..........2 Smartphone application ..........3 Apple devices ............3 Android devices .............3 Alcohol limit and measuring unit settings ....4 Testing procedures .............5 Memory of previous results........9 Troubleshooting ............10 Wireless error on app ..........12 Specifications ............13 Warranty ..............14 Disclaimer ..............14... -
Page 6: Safety And Precautions
SAFETY AND PRECAUTIONS • Before performing a test, wait 15 to 20 minutes after your last drink or cigarette • Do not blow smoke or liquid into the sensor inlet, as this may damage the sensor • Do not place the breathalyzer in direct sunlight for extended periods of time •... -
Page 7: Breathalyzer Summary

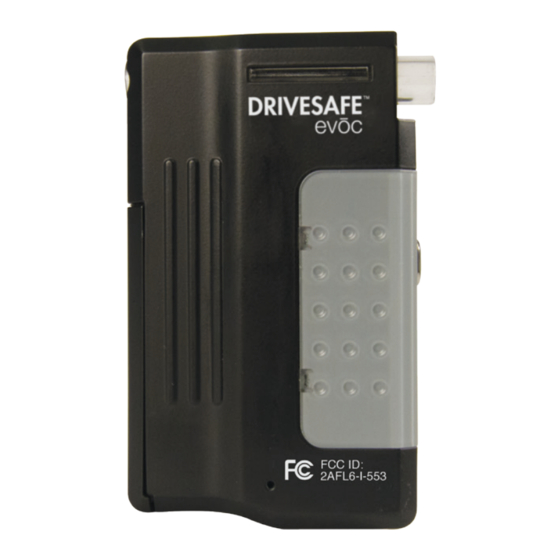

BREATHALYZER SUMMARY Congratulations on your purchase of the DRIVESAFE evōc, an innovative breathalyzer that will make your smartphone even smarter. • This breathalyzer has an electrochemical sensor, the same technology used by police • It can be connected to an Apple or Android smartphone or tablet through Bluetooth connection •... -
Page 8: Smartphone Application
SMARTPHONE APPLICATION APPLE DEVICES Go to the App Store and download the DRIVESAFE evōc app (for iOS 7 and above). ANDROID DEVICES Go to Google Play and search for the DRIVESAFE evōc app. DRIVESAFE EVŌC... -
Page 9: Alcohol Limit And Measuring Unit Settings
ALCOHOL LIMIT AND MEASURING UNIT SETTINGS This step must be performed only at the first use or in the event that changes have been made to your region or country. Insert a new AAA alkaline battery into the breathalyzer. Activate the Bluetooth feature on your smartphone. Open the DRIVESAFE evōc app. -
Page 10: Testing Procedures
Set the unit of measurement and the alcohol limit according to your region or country. For example, in Canada, United States and Australia, the alcohol measuring unit is expressed in %; in France, Japan and Taiwan, it is expressed in mg/L; in most European countries and Russia, the prevailing measure is ‰;... - Page 11 Wireless OK, Tests Counter, Wait and Blow will be displayed in succession. INSTRUCTION MANUAL...
- Page 12 Blow into the mouthpiece continuously for 5 seconds and stop when the device clicks. The Calculation icon is displayed. If the result is below the legal limit, OK and Below Limit with the numeric value is displayed. If the result is above the legal limit, Above Limit with the numeric value is displayed.
- Page 13 Sober Estimation is displayed and will indicate how long it will take to recover sobriety and be fit to drive a vehicle. Select the Text Message, Facebook or Twitter icon to share your results. At the end of the test cycle, the evōc will shut down automatically.
-
Page 14: Memory Of Previous Results
MEMORY OF PREVIOUS RESULTS The DRIVESAFE evōc stores the last 500 test results, each with date and time stamps. DRIVESAFE EVŌC... -
Page 15: Troubleshooting
TROUBLESHOOTING If a appears below an icon, a potential error may have occurred. Consult the table on the next page for detailed errors and steps on how to fix them. INSTRUCTION MANUAL... - Page 16 Low battery The battery needs to be replaced. Use 1 AAA alkaline battery only. Blow error The breath sample was intermittent, too hard or too soft. Try again. Calibration error The evōc needs to be calibrated. Contact your local dealer for details.
-
Page 17: Wireless Error On App
WIRELESS ERROR ON APP If the application continually displays a wireless error, do one of the following: • Take the proper steps before performing a breath test: i. Power on the breathalyzer ii. Pair the device with the smartphone via Bluetooth iii. -
Page 18: Specifications
SPECIFICATIONS Sensor: Electrochemical sensor Power: 1 AAA alkaline battery 1.5V Detection: 0.000 to 0400% BAC (4.00% or 2.00 mg/L) Accuracy: +/- 0.005% to 0.05% Operating temperature: Between 10 and 40 °C or 50 and 104 °F Storage temperature: Between 0 and 50 °C or 32 and 122 °F Blowing time: About 5 seconds... -
Page 19: Warranty
WARRANTY All ACS products are warranted to be free of defects in workmanship and materials for one year from the date of shipment. ACS agrees to replace or repair any defective DRIVESAFE evōc device, provided the defect was not caused by misuse or mishandling. - Page 20 IRM-ENG-60-000748-B © 2015 - 2016...
