  • Page 1 A1712 User Manual...

  • Page 2: Parts And Functions

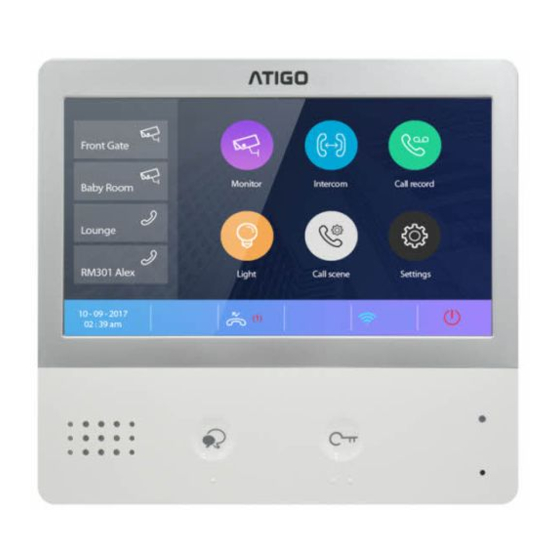

    Parts & Functions Mounting Key functions • Enables communication with the Speaker visitor • Press for hands free communication Talk/Mon button with the visitor • Press to view the camera in standby • LCD screen Display the image of the visitor Embed the mounting box into the •...

  • Page 3: Function Status

    Main Menu The Main Menu is the starting point for all To access the Main Menu, touch anywhere the applications on the monitor. on the monitor’s screen in standby mode. Function status Icon Function Description Visible when there is a new missed call. Missed call Touch this shortcut icon to review the missed called.

  • Page 4: Answering A Call

    Intercom mode with another monitor Answering a call 1. Touch Talk/Mon button to answer the call. To end the call, touch the button again. 2. If necessary, during the call, touch to display the audio/video settings. 3. Touch this button to record the image/video of your call. 4.

  • Page 5: Call Another Room Or Apartment (Intercom)

    Pan & Zoom the view If you want to see more details, you can move to the desired position by touching the UP, DOWN, LEFT, RIGHT arrows & the CIRCLE on the screen to PAN / TILT and ZOOM the camera view. Touch any of the buttons to activate the PAN / TILT or ZOOM function.
  • Page 6 You can also select Inner Call to open communication with another room in the same house Selecting the Guard Station will call the concierge unit If the system does display any room number to call in the Name list, you can enter the room number directly but choosing the Input Numbers option.

  • Page 7: Do Not Disturb

    View calls recorded Chose the Call Record function to view missed calls. Select Call Record to enter the call recording interface where a list of calls which includes missed calls, incoming & outgoing calls are displayed. Select any of the calls on the list to display it.

  • Page 8: Divert Calls

    Divert calls Calls from the Entry Panel can be diverted to a mobile phone. This function is only supported when Wi-Fi or SIP is used. Select Call Scene from Main Menu Choose one of the two Divert Call modes Divert Cal If No Answer Divert Call Always Divert Call If No Answer: If the call from the Entry Panel is not answered within 30...

  • Page 9: Ring Tone Setting

    Ring tone setting The ring call tone can be set individually to distinguish different calling sources. Select Call Tune to enter settings Select each individual setting as required Ring volume adjust the ringtone volume Ring time adjust the ringtone time Door 1~4 call tone for entry panels 1~4 Doorbell...

  • Page 10: Language Setting

    Language setting Shortcut setting The default language can be customised at any In this section you can create up to 4 quick time. actions that will appear on in the Main Menu called shortcuts. Select Language from General menu Select and touch to confirm the desired Select Shortcut setting to enter the language from the list interface...

  • Page 11: Restoring To Default Settings

    Screen on in divert setting Restoring to default settings When the monitors are set to Divert Call Always The restore to default setting allows the user to mode, when receiving a call, the monitors will set all settings back to factory default. not display the image.

  • Page 12: Installer Setting

    Installer setting DIP Switch addresses This section contains the device address and The DIP switches are used to set the user code system settings. for each monitor and maximum are 6 Bits. Select Installer option from the menu Bit-1 ~ Bit-5 are used for addressing. The value range is from 0 to 31, a total of 32 different codes for 32 monitors.

  • Page 13: Intercom Function

    Intercom function To enable or disable the intercom function, enter the Intercom setting and chose the option as required. Default setting is Enabled IPC setting This option is related to the IP cameras that can be added to the system. Add IP camera by searching Add IP camera manually Either option it is recommended to add the...

  • Page 14: Unlock Time Settings

    Monitors list This feature allows to keep and manage a list of monitors (where available) [X] – means function is available; [-] – means function is unavailable; Unlock time settings The unlock time can be changed at any time and this can be set between 01 and 99 seconds.
  • Page 15 Unlock mode setting There are two modes to unlock Normally open mode Normally closed mode Reboot This option allows Rebooting the system or program the Auto Reboot function.

  • Page 16: Wireless Settings

    Wireless settings Select Wireless from the menu Chose to activate the Wi-Fi function by switching it to ON Enter the Wlan setting interface Find and select your domestic home network to which you wish to connect Select and enter the Wi-Fi password for the network selected Chose OK to enable and return to the Wi-Fi interface screen...

  • Page 17: Sip Config

    SIP config This option enables the ability to divert the call to a mobile using a SIP server. In Call Scene interface Select one of the two options Divert Call if no answer Divert Call always In the Wireless settings interface Select and enter the SIP config Select to restore all settings on “SIP config”...
  • Page 18 SIP tools SIP tools are designed to help test the divert function. Select SIP tools to enter the menu Chose SIP call testing to access the testing page • SIP call testing count - this setting can be set between 1~99 and it means that the test will run automatically the set value •...
  • Page 19 Download and Setup 2Easy App Scan above code for iOS or Android, download and install the App. Alternatively search “2Easy” on your iOS or Android App store. Allow “2Easy” access to Internet connection & camera and on the monitor select SIP Server icon from the Main Menu Within the 2Easy App, press on the top-right corner [-] to scan QR code shown on the monitor...
  • Page 20 After the connection is made and the SIP account has login, you should see on the 2Easy app status bar a Registered message. You can manually register by pressing the register button.
  • Page 21 Preview door station via 2Easy App On the 2Easy App, press the Monitor option and wait a few seconds (due to 2-wire communication, it may take up to 20 seconds to receive the video feedback). A blue screen is normal, and it usually happens when the monitor is verifying the password and monitor code.

  • Page 22: Specification

    Divert mode – away from home with call divert ON SIP server and account are required (factory account is pre-set) Call Scenes (Do Not Disturb / Divert calls if no answer / Divert call always) diagram in away from home mode Specification Power supply 20~28V DC...
