Summary of Contents for ATIGO A901S
- Page 1 A901S 2 Wire Kit Installation Manual...

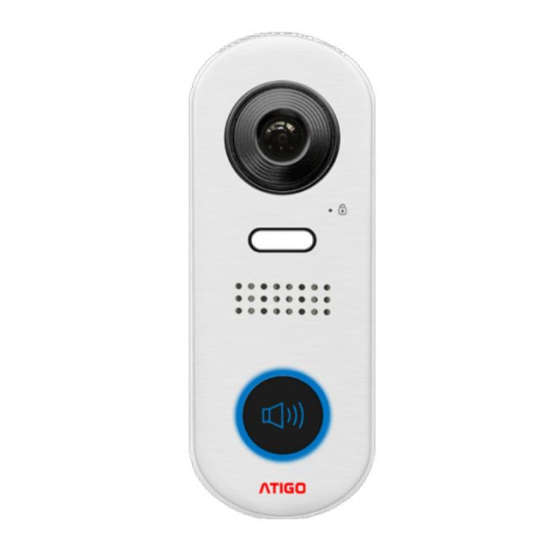

- Page 2 Door entry panel A501S Specification: Power supply: 26Vdc (supplied by A2100) Power consumption: 14mA standby, 122mA active Camera: Colour CMOS, 2 Mega pixels, 1/2.7” Fisheye, 155º Wide angle. Unlock power output: 12Vdc, 250mA Unlock time: 3, 5 or 10 seconds Working temperature: -15ºC ~ +55ºC Installation: Surface mounting Dimension: 160(H) x 60(W) x 31.5(D)mm...
- Page 3 Electric lock powered by door Electric lock powered by station lock output. additional power supply Note: Note: The jumper must be set correctly (fig. 2). The jumper must be set correctly (fig. 1). The power supply must be used accordingly The lock output is limited to 12Vdc, and a to lock specification.
- Page 4 Setting panel status indicators All status indicators are set to ON as default • door unlocked, LED + Voice • calling, LED + Voice Programming 1. Power OFF door panel 2. Set DIP switch 6 to ON position 3. Power back ON door station and press call button within 10 seconds to enable programming mode.
- Page 5 System layout Important notes: Maximum of 4 monitors can be connected in daisy chain configuration to a single button entry panel. Cable distances CABLE TYPE Twisted Cores CAT5e Twisted Cable 2 x 0.75 mm2 Twisted Cable 2 x 1.00 mm2 CAT5e UTP, cores twisted by colour code.
