Mini Animation Laser
Please read through this manual thoroughly before use, any damage
Caused by misuse of product will not be covered by warranty.

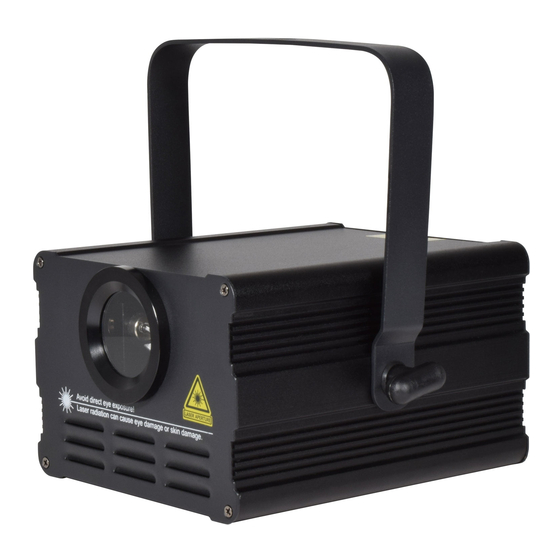

Thank you for choosing the QTX Crystalizer a compact, metal animation laser that produces a crystal clear
array of 51 colourful patterns and animations. 5 control modes including auto, sound to light and DMX512
make this versatile, robust unit perfect for any function or event.
In the box:
Your Crystalizer should arrive with you in a single carton in good condition. The carton should contain
1x main unit with bracket, 1x UK IEC mains lead, 1x laser key and 1x user guide.
Warning:
To prevent risk of fire or electric shock, do not expose the unit to rain or damp environments. In the event
of a spillage, disconnect the mains and allow the unit to dry out naturally. Qualified personnel should then
check the unit before continuing use.
Please do not open cover, contains high voltage. This
product is not serviceable or repairable by the end user.
Please refer to qualified personnel for service and repair.
www.avsl.com
152.747UK User Manual
Advertisement
Related Manuals for Qtx crystalizer
Summary of Contents for Qtx crystalizer
- Page 1 Caused by misuse of product will not be covered by warranty. Thank you for choosing the QTX Crystalizer a compact, metal animation laser that produces a crystal clear array of 51 colourful patterns and animations. 5 control modes including auto, sound to light and DMX512 make this versatile, robust unit perfect for any function or event.
-
Page 2: Rear Panel Controls
Caution: Laser radiation Avoid pointing directly towards eyes. Laser output can cause injury if viewed directly. This product is a Class 3B laser and should only be installed and used by persons who are trained in the management of laser radiation and are able to operate in accordance within the guidance given by the Health and Safety Executive (HSE) in HS(G)95: “The Radiation Safety of Lasers used for Display purposes”. -
Page 3: Menu Function
DMX modes: The Crystalizer can be controlled by DMX signal, simply connect the DMX signal source to the DMX input on the unit via a balanced XLR lead. Extra fixtures can be controlled by the same DMX signal by looping through the DMX out on the unit. - Page 4 No function Colour chase 10-127 Colour chase clockwise (slow to fast) speed 128-255 Colour chase anticlockwise (slow to fast) Pattern selection 0-255 Pattern selection from 5 groups in CH5 0-50 Inner patterns group 1 51-101 Inner patterns group 2 Pattern group 102-152 Inner patterns group 3 selection...
-
Page 5: Specifications
