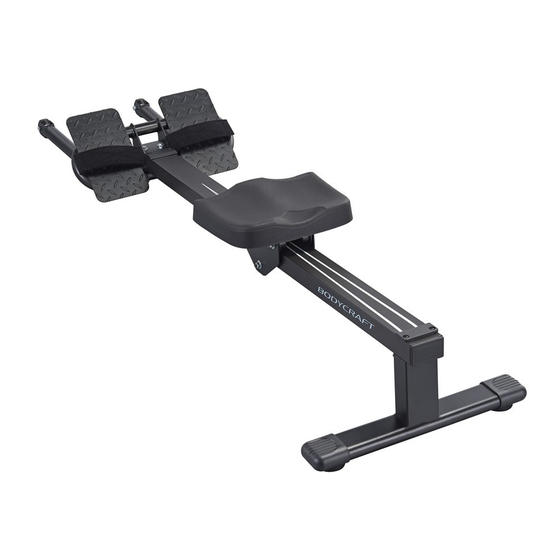

PRow - Power Row Option
for the BodyCraft XFT, RFT, PFT, HFT and all Multi-Gyms
To see in
FULL COLOR
Open your Camera
& additional information,
App and point it at
the QR Code
scan this QR code.
Base Serial Number: _ _ _ _ _ _ _ _ _ _ _ _ _
Purchased Date: ___ / ___ / ______
Dealer's Name:__________________________
Please register your products at:
https://www.bodycraft.com/product-registration/
Owner's Manual
PRow v1.2
1
Advertisement
Table of Contents
Related Manuals for BodyCraft PRow XFT
Summary of Contents for BodyCraft PRow XFT

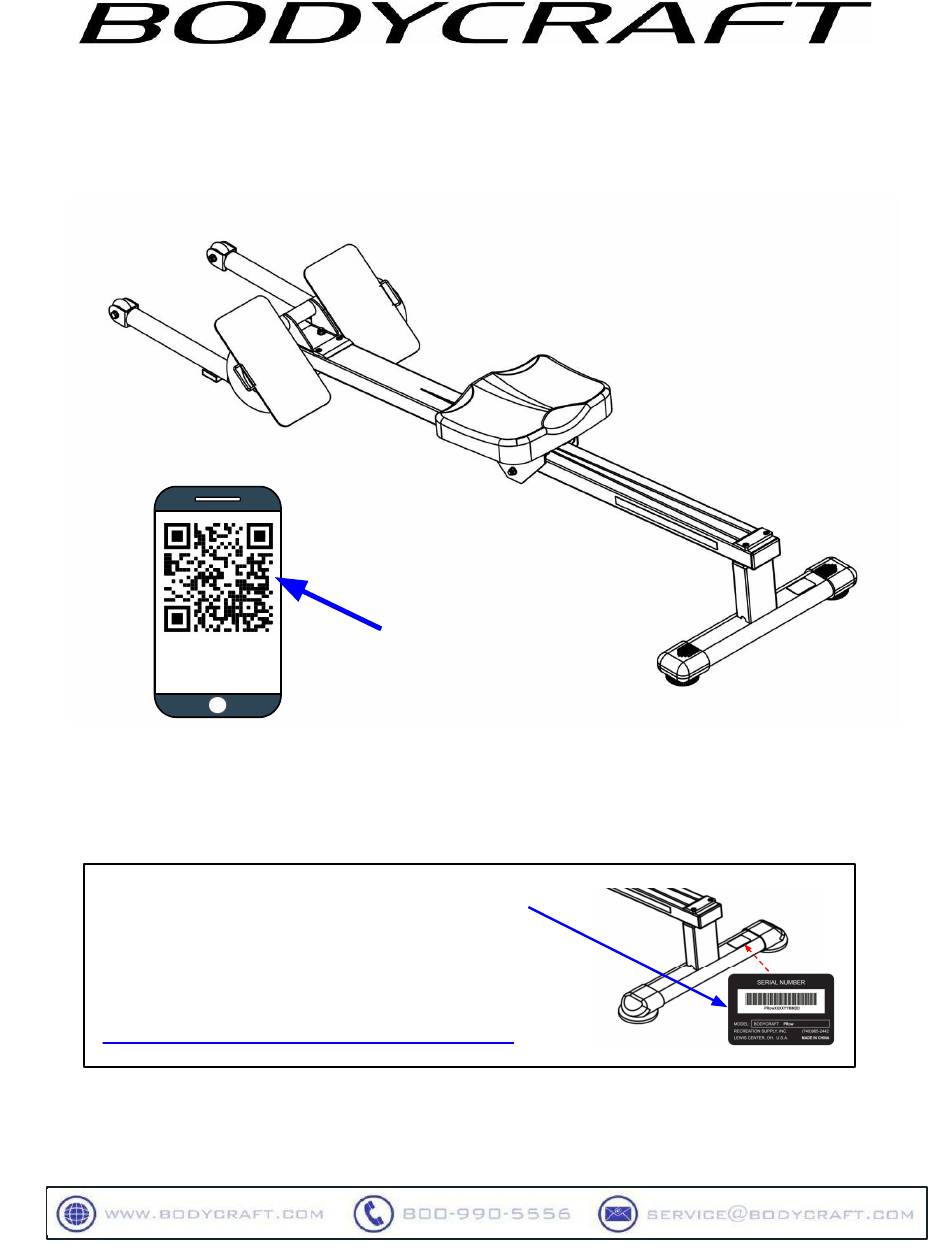

- Page 1 PRow - Power Row Option for the BodyCraft XFT, RFT, PFT, HFT and all Multi-Gyms To see in FULL COLOR Open your Camera & additional information, App and point it at the QR Code scan this QR code. Base Serial Number: _ _ _ _ _ _ _ _ _ _ _ _ _ Purchased Date: ___ / ___ / ______ Dealer’s Name:__________________________...
- Page 2 Your BODYCRAFT machine has all the quality and design elements to make your workout extremely efficient and comfortable. Your new unit is a serious strength training machine that will keep you motivated, challenged and within reach of your fitness goals.
-
Page 3: Table Of Contents
Table of Contents NOTE: When you have downloaded the Owner’s Manual into a PDF reader, go directly to the desired page by touching any words in this Table of Contents. Page Page Product Safety Information Product Safety ……………………………………………………………... Important Notes, Recommended Tools & Cleaners …………………….. Product Overview Machine Dimensions &... -
Page 4: Product Safety
It is imperative that you retain these Assembly Instructions and be sure all warning labels are legible and intact. Replacement Assembly Instructions and labels are available from BODYCRAFT. If you are unsure about the proper use of the BODYCRAFT strength machine call your local BODYCRAFT dealer or our Customer Service Department. Contact BODYCRAFT at 800-990-5556 or support@bodycraft.com... -
Page 5: Important Notes, Recommended Tools & Cleaners
Important Notes, Recommended Tools & Cleaners - PRow Important Notes and Tips: Before assembly, read all instructions thoroughly and preview diagrams to help make the installation easier. 2. Make sure all parts are accounted for and in proper condition before beginning assembly. See the parts list. -
Page 6: Machine Dimensions & Specs
Machine Dimensions & Specs Overall Dimensions 20.0" W x 69.6" D x 12.6" H... -
Page 7: Assembly Parts & Hardware Lists
Assembly Parts & Hardware List Part # Assembly Parts List PRow-001-ASM Frame, Front Stabilizer w/ Wheels - Assembly PRow-002-ASM Frame, Rear Stabilizer w/ Feet - Assembly PRow-003-ASM Frame, Monorail - Assembly PRow-004-ASM Frame, Foot Platform - Assembly PRow-005 Support Plate, Seat Pad PRow-006 Axle, Seat Rollers PRow-007... -
Page 8: Product Assembly Instructions, Steps 1 - Step 4
Product Assembly - STEP 1 TEP 1: Front Stabilizer, Foot Platform & Front Bumper Recommended Tools: Socket Wrench w/ Allen Wrench 5mm 13mm Socket Phillips Screwdriver #2 Fully tighten at this time to the Recommended Torque Specs 15 ft-lbs (+/- 2 lbs) Part # Assembly Parts PRow-001-ASM... - Page 9 Product Assembly - STEP 2 TEP 2: Seat Support Assembly Recommended Tools: 15 ft-lbs (+/- 2 lbs) Allen Wrenches Socket Wrench w/ 5mm & 4mm 13mm Socket Open / Closed Wrench 13mm Fully tighten at this time to the Recommended Torque Specs 15 ft-lbs 15 ft-lbs (+/- 2 lbs)
- Page 10 Product Assembly - STEP 3 & STEP 4 TEP 3 : Seat Pad Part # Assembly Part PRow-009 Seat Pad Recommended Tools: Phillips Screwdriver #2 Allen Wrench 5mm Fully tighten at this time to the Recommended Torque Specs TEP 4 : Rear Stabilizer & Rear Bumper 15 ft-lbs (+/- 2 lbs) Part #...
-
Page 11: Detailed Parts Lists
Detailed Parts List - PRow 1 of 1 Part # Detailed Parts list PRow-001 Frame, Front Stabilizer PRow-002 Frame, Rear Stabilizer PRow-003 Frame, Monorail PRow-004 Frame, Foot Platform PRow-005 Support Plate, Seat Pad PRow-006 Axle, Seat Rollers PRow-007 Bushing, Seat Rollers PRow-008 Bumper, Seat Stop PRow-009... -
Page 12: Parts Exploded View
Parts Exploded View Bottom View Top/Side View... -
Page 13: Information Needed Prior To Contacting Customer Support
Service Request Required Information BEFORE Initiating a Service Case The following information is needed to help expedite troubleshooting and to ensure the correct part(s) are sent if needed for a repair: What product / model # do you have? Unit serial number? Installed by a dealer or direct sale? Date of installation? Date of service issue? -
Page 14: Product Warranty
If the item exhibits such a defect, BODYCRAFT will, at its option, repair or replace it without cost for parts. Shipping and handling charges may apply. (BODYCRAFT may require return of the part(s) or photographic evidence of the damaged part(s) prior to replacement.) Serial number is required. -
Page 15: Product Warranty Registration
The information you provide will never be distributed to any other individuals or agencies for any purpose. If you prefer to mail your warranty card, have the owner of the product complete the information below and return it to BODYCRAFT within 30 days from the date of equipment installation.
