INSTALL WEIGHT STACK SHROUDS
ASSEMBLY IS COMPLETE! Tighten all bolts, starting with main frame bolts
on the base, and work way to top.

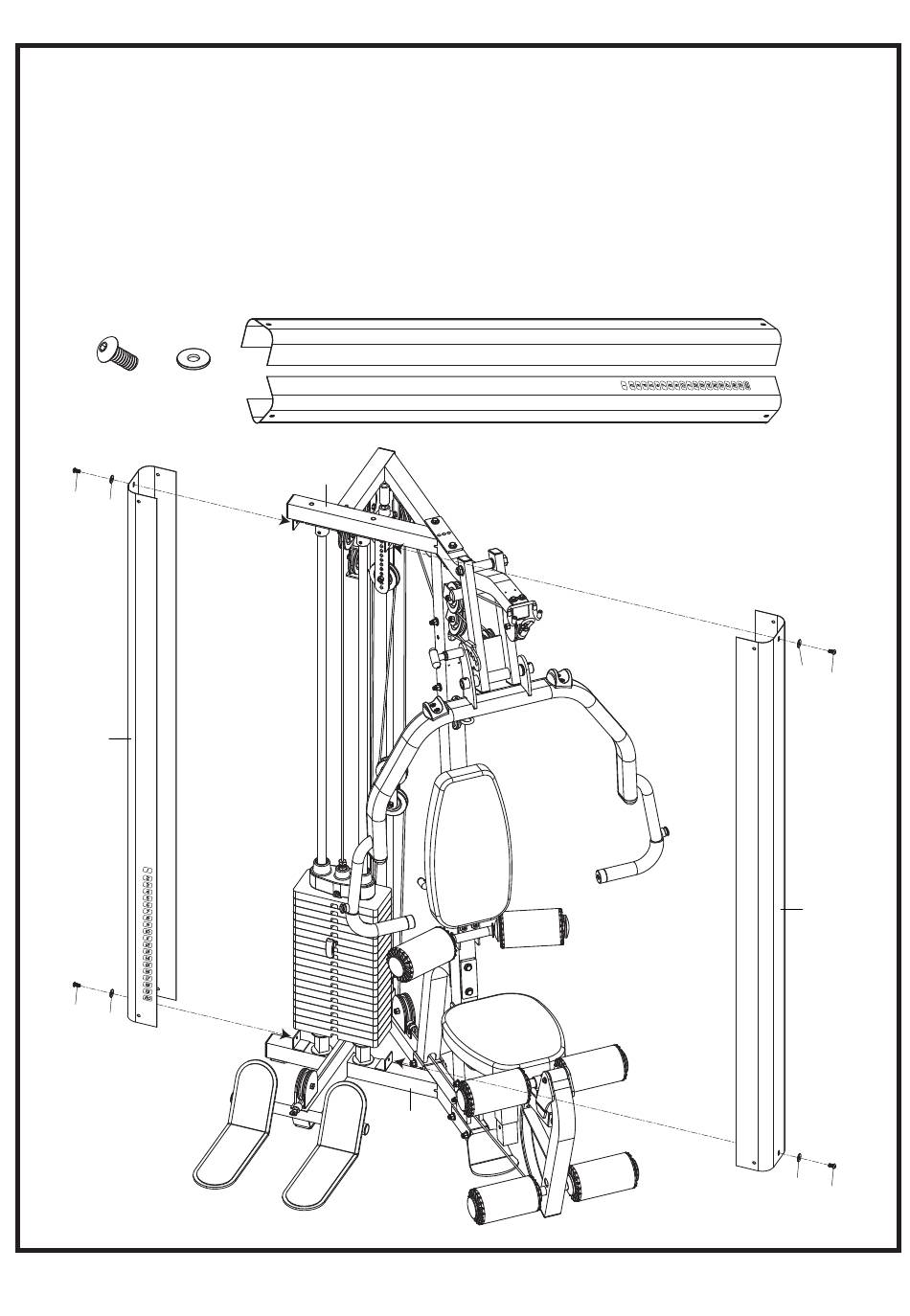

1. Attach Weight Stack Shroud (201) and Weight Stack Shroud with Number (202)
to the tabs welded on Base Frame (1) and Top Frame (2) as shown, using four
5/16" X 1/2" Round Bolts (89) and four 5/16" Washers (102).
(102)
(89)
89
102
202
89
102
2
1
1
(201)
(202)
102
89
201
102
89
