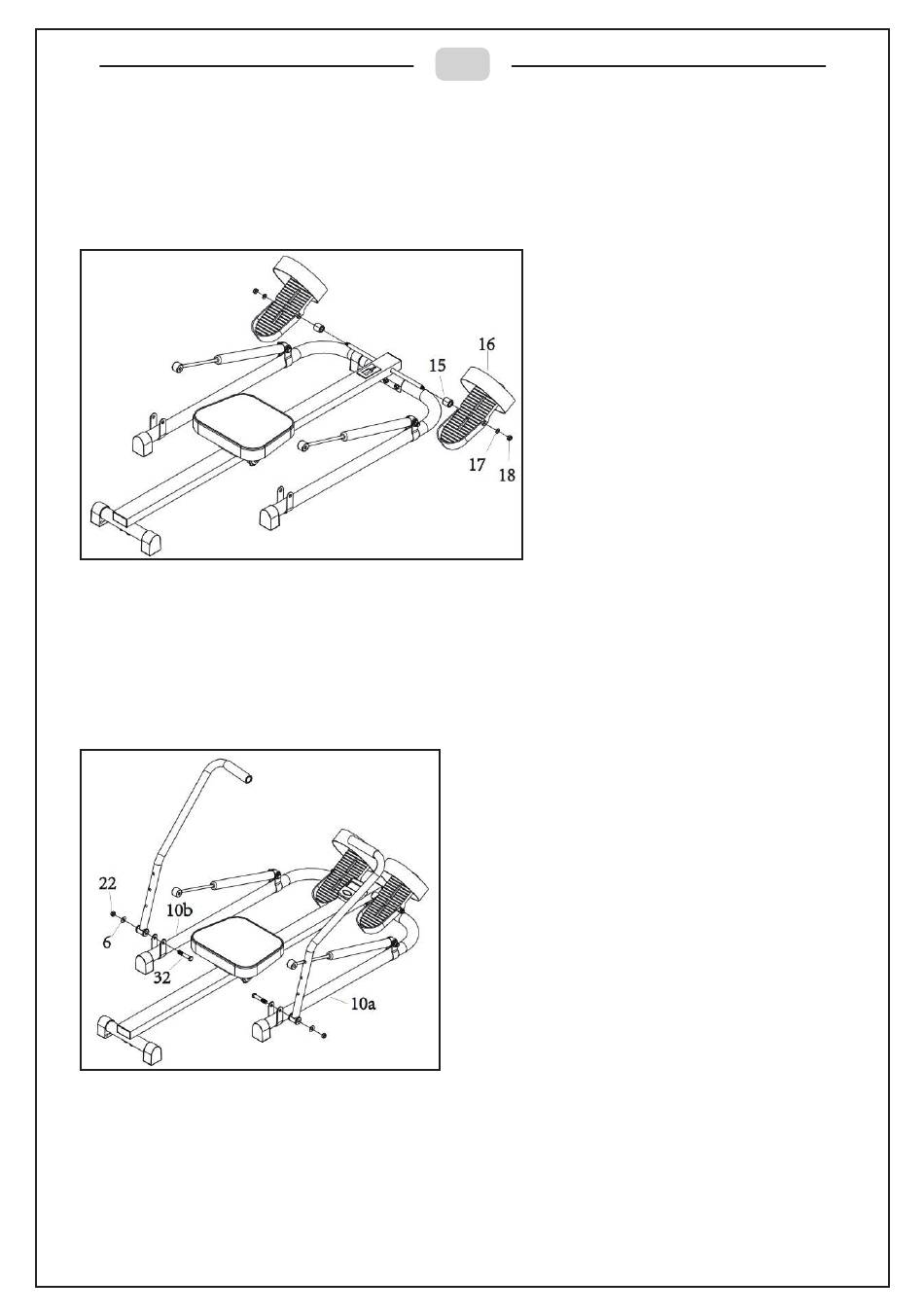

Step 3:
Push the pedal rod with the attached foot support through the holes in the main frame.
Then push a plastic bucket (Part 15), the second base (Part 16) and a rubber disc (Part
17) onto the spindle and screw it with the help of the second big nut (Part 18).
Step 4:
Connect the right rudder arm (part 19a) with the right side bracket (part 19a); Repeat these
steps for the left rudder. Make sure that the handles show inwards as shown after the
assembly and the bends are directed upwards into the bends.
