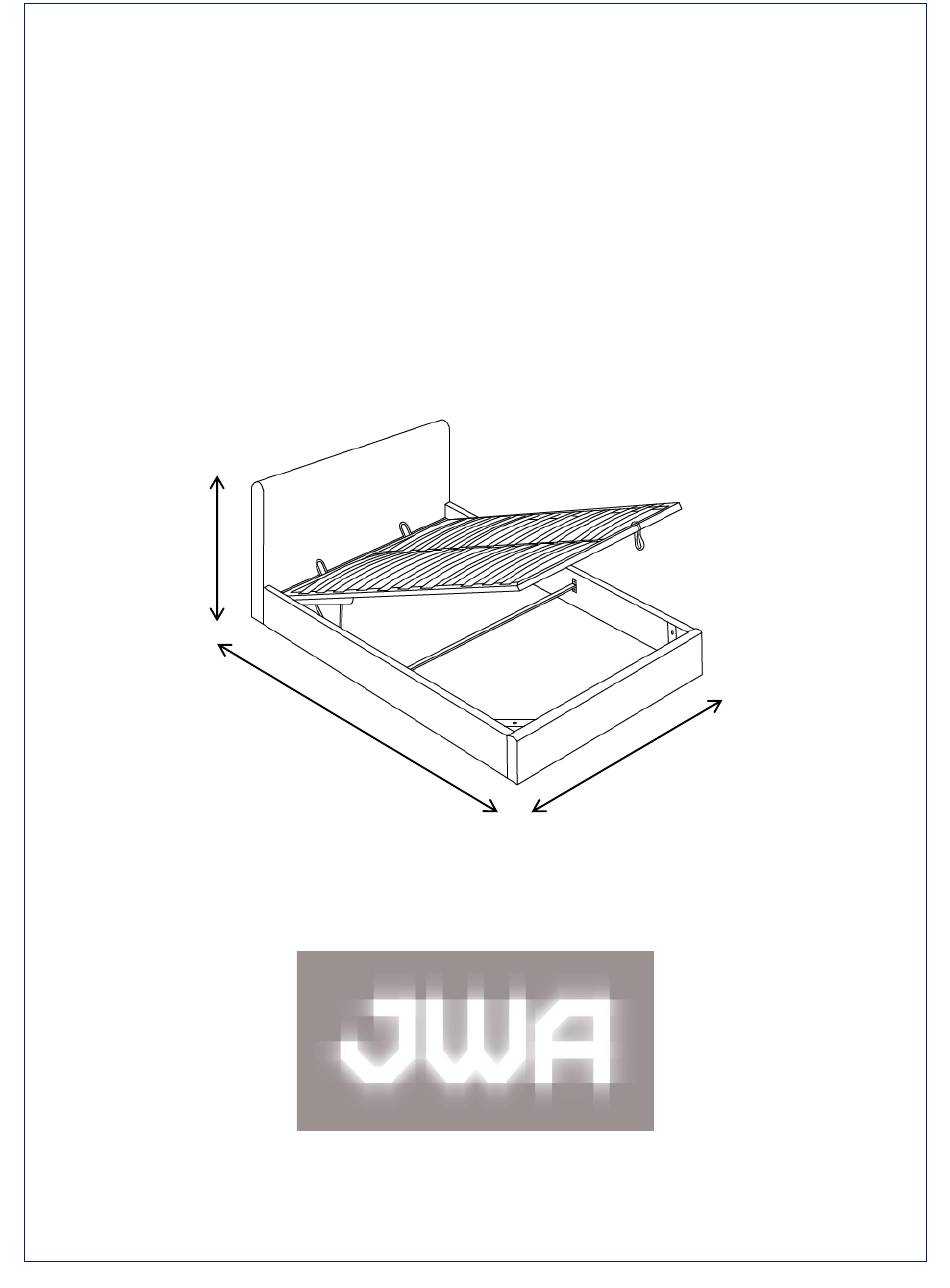

- Page 1 ASSEMBLY INSTRUCTION DIVINA QUEEN LIFT BED 74374 1185mm 2190mm 1590mm Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when lifting. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instructions carefully before beginning assembly. - Page 3 PARTS LIST...
- Page 4 PARTS LIST...
- Page 5 STEP 1: • Prepare a protected surface with a blanket or cardboard. • Attach the 4x feet(2) to the headboard(1) and footboard(3), as shown below. • Attach the base support(4) to the footboard(3), as shown below. Use 2x bolt(B) and washer(F) , Fasten with M8 allen key(M) . STEP 2: •...
- Page 6 STEP 3: • Attach the corner bracket(O) to the footboard(3) and siderail, as shown below. Use 4x bolt(C) per side, Fasten with M6 allen key(L) . STEP 4: • Attach the 2x base side bar(9) to the base front bar(7), as shown below.
- Page 7 STEP 5: • Attach the centre cross rail(11) to the bottom of base side bar and centre rail, as shown below. Thread 1x bolt(A) and 2x washer(F) per side from the top, and lock with nut(G). Fasten with M8 allen key(M) and hold the nut with a spanner(N). STEP 6: •...
- Page 8 STEP 7: • Attach the mattress support(12) to the base front bar(7), as shown below. Use 2x bolt(D) per side,.Fasten with M6 allen key(L) . • Attach 2x support leg(13) to middle bottom of base front bar(7) and centre rail(10), as shown below. Use 2x bolt(D) and washer(F) per leg.
- Page 9 STEP 9: • Attach the 2x base side bar(9) to the gas lift(16), as shown below. Use 3x bolt(D) and washer(F) per side. Fasten with M6 allen key(L). The first hole is on the left. The second and third holes are in the middle STEP 10: •...
-
Page 10: Product Care
PRODUCT CARE: FURNITURE / BED 1. When assembling your furniture / bed please ensure that you have checked the contents for all relevant parts. 2. When tightening bolts make sure that they are fully tightened but not forced. 3. When moving your fully assembled bed you must first remove the mattress and lift the frame into position, take care when lifting and always have two people handling the bed.
