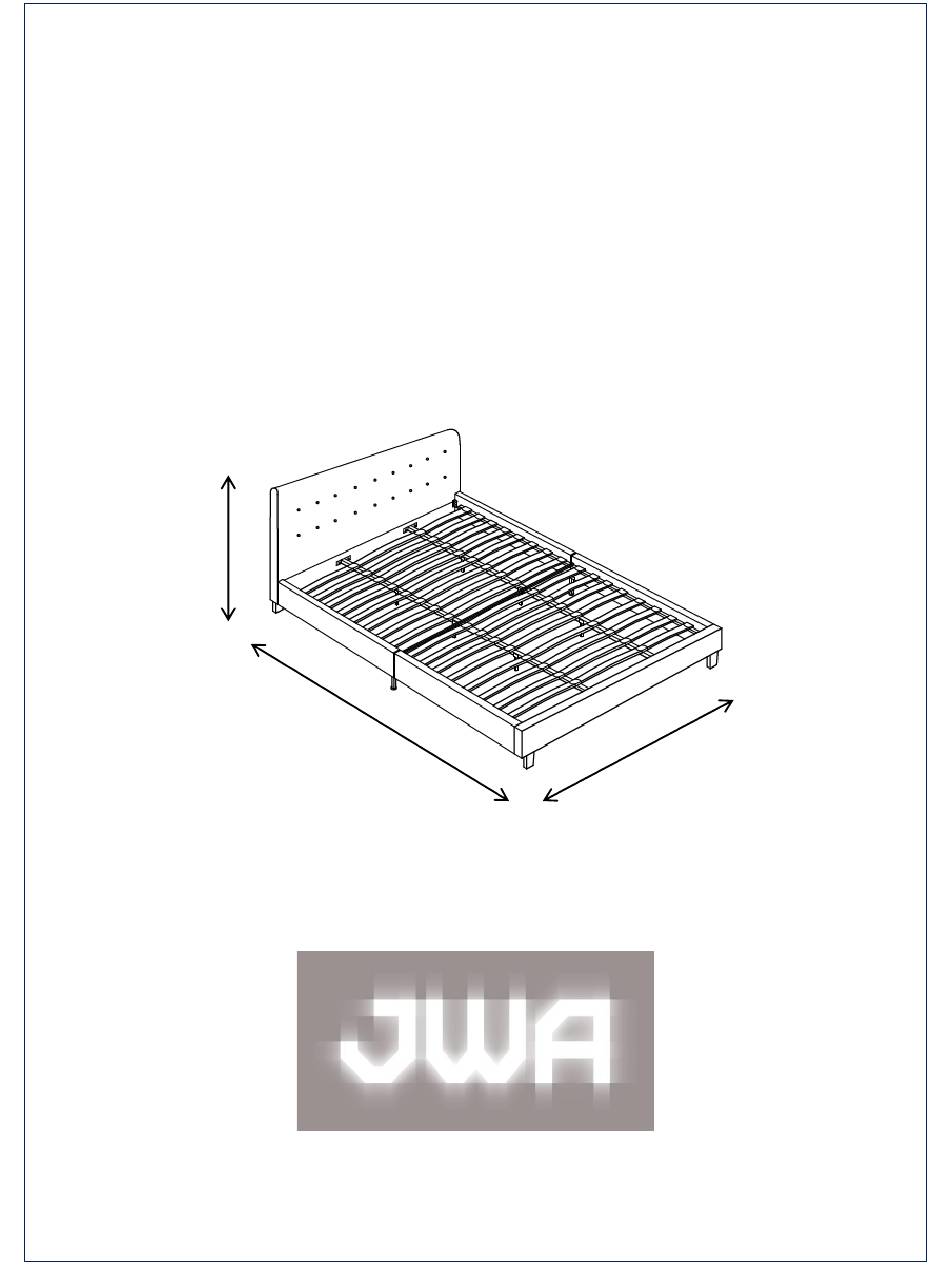

- Page 1 ASSEMBLY INSTRUCTION ROBINSON KING BED 74322 920mm 2170mm 1895mm Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when lifting. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instructions carefully before beginning assembly. -
Page 3: Parts List
PARTS LIST... - Page 4 PARTS LIST...
- Page 5 STEP 1: • Prepare a protected surface with a blanket or cardboard. • Attach the 4x feet(10) to the headboard(1) and footboard(2), as shown below. Use 1x bolt(C) and washer(F) per feet, Fasten with M8 allen key(J) . STEP 2: •...
- Page 6 STEP 3: • Align the siderail support leg (11) to the siderail panel, using 4x bolt (D) and fasten with M6 allen key (I). • Align the holes, using 2x bolt (L) and washer (F), Fully tighten with M6 allen key (I)
- Page 7 STEP 4: • Connect the siderail right(3) and siderail left (6) to the headboard / siderail right (4) and siderail left (5) to the footboard. Secure with 3x bolt(A), spring washer(H) and washer(F) per corner. Fasten with M8 allen key(J). •...
- Page 8 STEP 6: • Align the centre rail to the headboard and footboard, using 4x bolt (A),spring washer(H) and washer(F). Fasten with M8 allen key(J). • Attach the centre cross rail(9) to the sideral left & right, as shown below. Thread 1x bolt(C) and 2x washer(F) per side from the top, and lock with Hex nut(G) .
-
Page 9: Product Care
PRODUCT CARE: FURNITURE / BED 1. When assembling your furniture / bed please ensure that you have checked the contents for all relevant parts. 2. When tightening bolts make sure that they are fully tightened but not forced. 3. When moving your fully assembled bed you must first remove the mattress and lift the frame into position, take care when lifting and always have two people handling the bed.
