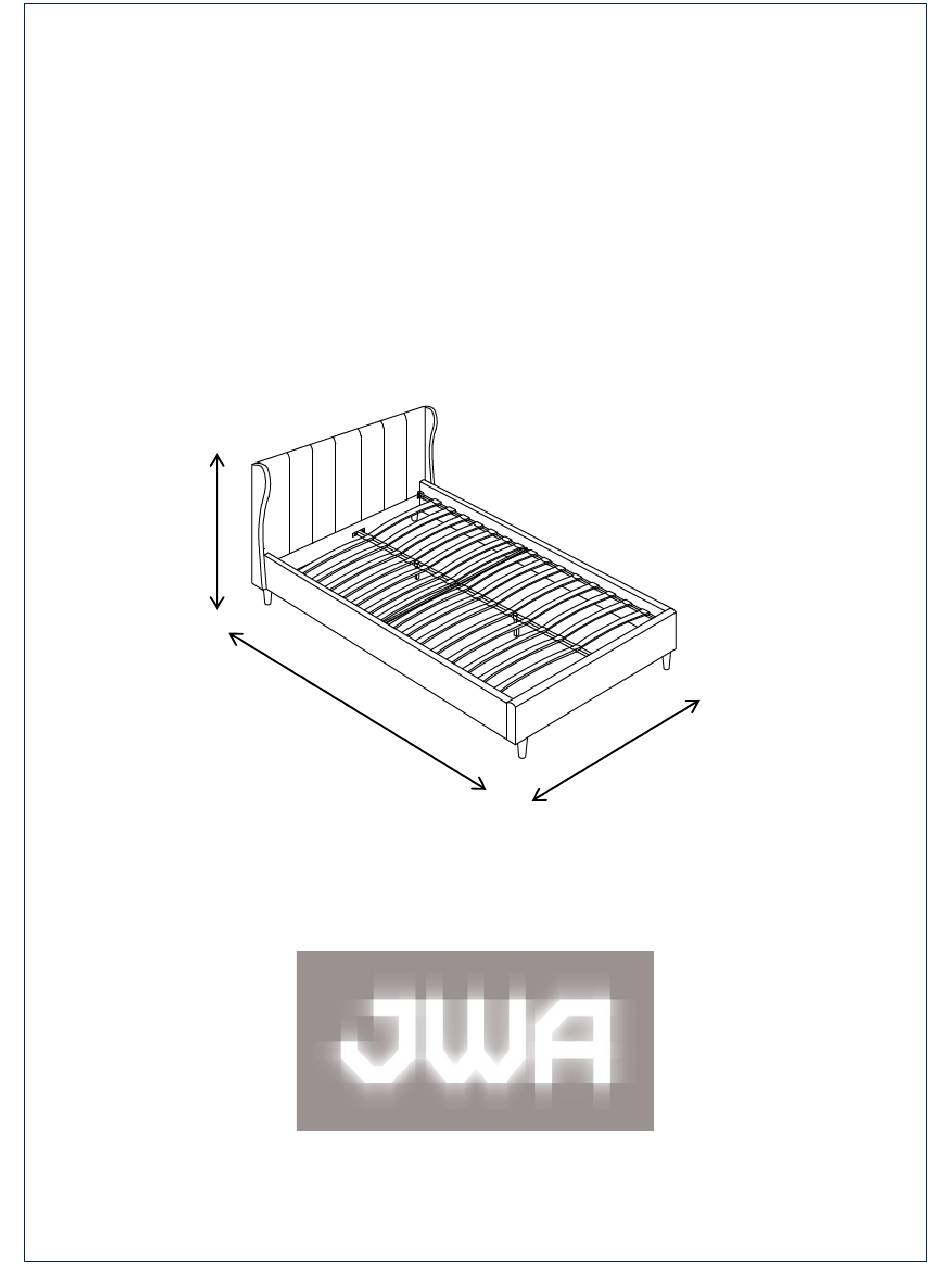

- Page 1 ASSEMBLY INSTRUCTION FRIEDMAN QUEEN BED 74336 1150mm 2250mm 1730mm Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 2 PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when lifting. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instructions carefully before beginning assembly.
- Page 3 PARTS LIST...
- Page 4 STEP 1: • Prepare a protected surface with a blanket or cardboard. • Attach the 4x feet(9) to the headboard(1) and footboard(2), as shown below. And tighten clockwise. STEP 2: • Connect the siderail(3) to the headboard(1) and footboard(2) . Secure with 2x bolt(A), spring washer(G) and washer(C) per corner.
- Page 5 STEP 3: • Attach 2x centre support leg (7) to the centre rail(6) as shown. Using 1x bolt (B), washer (C) and fasten with M8 allen key (E). STEP 4: • Align the centre rail(6) to the headboard and footboard, using 2x bolt (A),spring washer(G) and washer(C).
- Page 6 STEP 5: • Attach the left wing(5),right wing(4) to the headboard(1) use 2x bolt(B),washer(C) and fully tighten with allen key(E) • Attach an end cap(12) onto every slat, 1 per slat(10). • Take 2x slats and cup the non capped end into either side of the centre cap(11).
- Page 7 Assembly Is Complete...
- Page 8 PRODUCT CARE: FURNITURE / BED 1. When assembling your furniture / bed please ensure that you have checked the contents for all relevant parts. 2. When tightening bolts make sure that they are fully tightened but not forced. 3. When moving your fully assembled bed you must first remove the mattress and lift the frame into position, take care when lifting and always have two people handling the bed.
