JWA FRAZIER 74479 Assembly Instruction Manual

Double bed
Hide thumbs

Advertisement

Quick Links

Download this manual

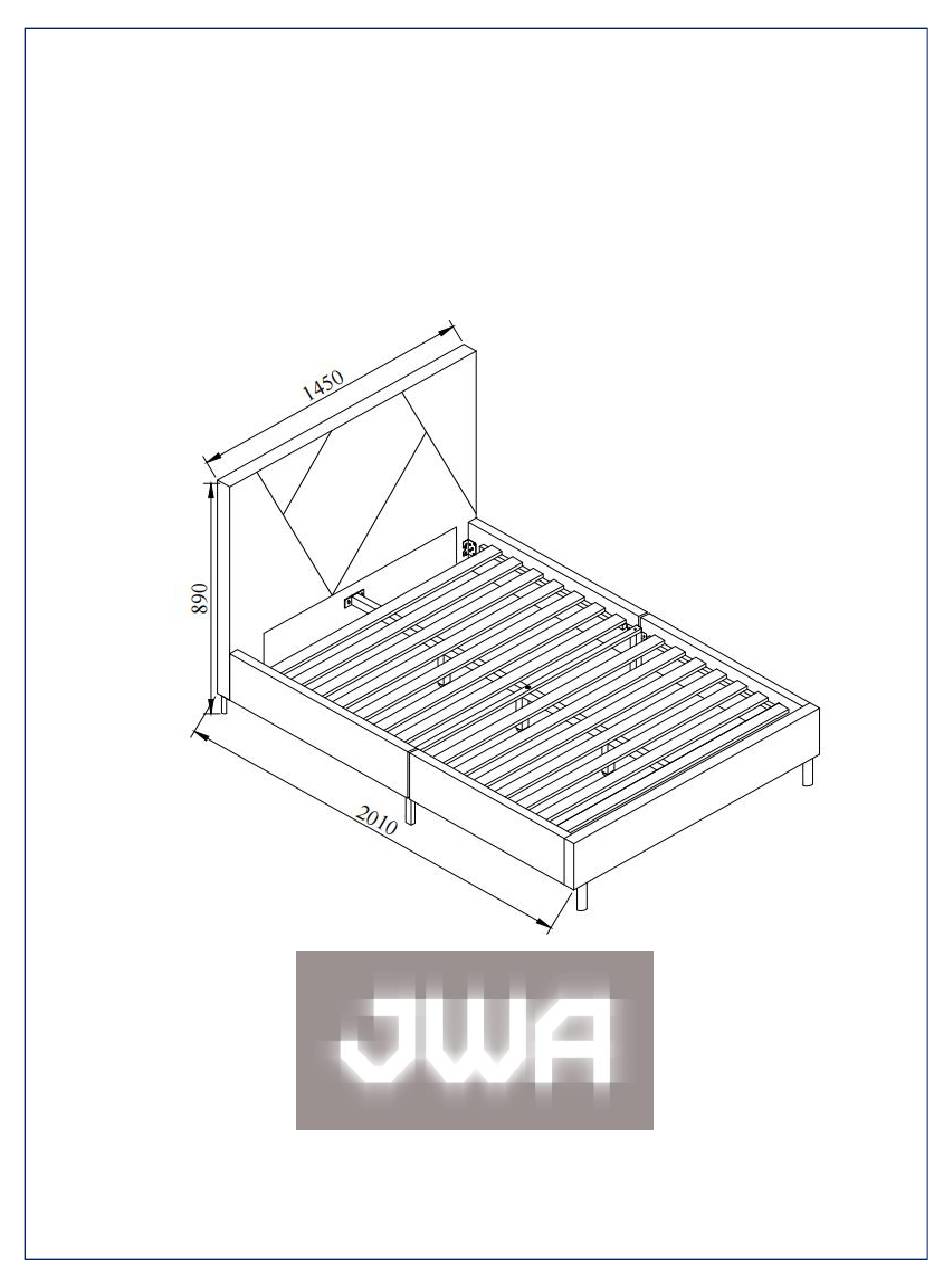

ASSEMBLY INSTRUCTION
FRAZIER
DOUBLE BED
74479
Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please refer to your receipt
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the FRAZIER 74479 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JWA FRAZIER 74479

Summary of Contents for JWA FRAZIER 74479

  • Page 1 ASSEMBLY INSTRUCTION FRAZIER DOUBLE BED 74479 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...

  • Page 2: Pre-Assembly Preparation

    PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when lifting. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instructions carefully before beginning assembly.

  • Page 3: Parts List

    PARTS LIST Head Board x 1pc Centre Support Leg x 2pcs Side Rail (L&r) x 4pcs Centre Support Leg x1pc Foot Board x 1pc Siderail Support Leg x 2pcs Centre Support Rail x 2pcs Center Cross Bar x 1pc HB/FB leg x 4pcs Wood Side Rail Bar x 4pcs Slat x 14pcs...
  • Page 4 STEP 1: • Prepare a protected surface with a blanket or cardboard. • Attach 2x HB/FB Legs(5) to the 1x Head Board(1) and 2x HB/FB Legs(5) to the 1x Foot Board(3), as shown below.
  • Page 5 STEP 2: • Attach the 4x Wood Side Rails Bars(11) to the 4x Left and Right Siderails(2), Use 3x Bolt(E) and 3x Flat Washer(G) per bar, threaded from the top and fasten with allen key(I). • Attach the 2x Side Rails Support Legs(9) to the 4x Left and Right Siderails(2), as shown below.
  • Page 6 STEP 3: • Connect a side rail to the Head Board and Foot Board. Secure with 2x bolt(A) and 2x Lock Washer(D) & 2x Flat Washer(F) per corner. Fasten with allen key(H). • Repeat for the other side rail.
  • Page 7 STEP 4: • Attach the Center support leg(8) to the 2x Centre Support Rail(4), as shown below. Use 2x bolt(A) with 2x Lock Washer(D) & 2x Flat Washer(F). Fasten with allen key(H). • Attach the 2x supports(7) to the Centre Support Rail(4), as shown below.
  • Page 8 STEP 5: • Attach the Centre Support Rail(4) to the Head Board(1) and the Foot Board(3), as shown as below. Thread bolt(A) with Lock Washer(D) & Flat Washer(F) from the top into the holes at the middle of the Head Board and Foot Board. Fasten with allen key(H).
  • Page 9 STEP 6: • Attach the Center Cross Bar(10) to the Centre Support Rail(4) on the middle, as shown below. Use 1x bolt(B) with Lock Washer(D) & Flat Washer(F). Fasten with allen key(H). • Attach either end of the center cross bar(10) to the side rails (2).
  • Page 10 STEP 7: • Flatten the 14x slats (6) on the bed frame. Assembly is finished.
  • Page 11 Assembly Is Complete...

  • Page 12: Product Care

    PRODUCT CARE: FURNITURE / BED 1. When assembling your bed please ensure that you have checked the contents for all relevant parts. 2. When tightening bolts make sure that they are fully tightened but not forced. 3. When moving your fully assembled bed you must first remove the mattress and lift the frame into position, take care when lifting and always have two people handling the bed.
