8FX Family
8-bit Microcontroller
BGM Adaptor MB2146-07-E Operation
Manual
Doc. # 002-05543 Rev. *A
Cypress Semiconductor
198 Champion Court
San Jose, CA 95134-1709
Phone (USA): 800.858.1810
Phone (Intnl): +1.408.943.2600
www.cypress.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MB2146-07-E and is the answer not in the manual?

Questions and answers

Related Manuals for Cypress MB2146-07-E

Summary of Contents for Cypress MB2146-07-E

  • Page 1 8FX Family 8-bit Microcontroller BGM Adaptor MB2146-07-E Operation Manual Doc. # 002-05543 Rev. *A Cypress Semiconductor 198 Champion Court San Jose, CA 95134-1709 Phone (USA): 800.858.1810 Phone (Intnl): +1.408.943.2600 www.cypress.com...
  • Page 2 Cypress is not liable, in whole or in part, and you shall and hereby do release Cypress from any claim, damage, or other liability arising from or related to all Unintended Uses of Cypress products.
  • Page 3 Preface Thank you for purchasing the 8FX Family All Series BGM adapter (model number: MB2146-07-E). The product is a development support tool for developing and evaluating applied products which use Cypress microcontrollers (hereafter MCU) that have a BDSU module. This manual describes how to handle the New 8FX Family All Series BGM adapter.
  • Page 4 Inappropriate operating or storage environments may cause a fault. Use the product within the ranges given in the specifications. Damage Operation over the specified ranges may cause a fault. 8FX Family BGM Adaptor MB2146-07-E Operation Manual, Doc. # 002-05543 Rev. *A...
  • Page 5 It is recommended that it be stored in the original packaging. Transporting the prod- Damage uct may cause a damage or fault. Therefore, keep the packaging materials and use them when re-shipping the product. 8FX Family BGM Adaptor MB2146-07-E Operation Manual, Doc. # 002-05543 Rev. *A...

  • Page 6: Table Of Contents

    6. Performance Description Debug Function ........................14 7. How to Upgrade BGMA FW (firmware) Use Softune Upgrade FW ....................20 FW Upgrade Using PC Helper Programmer ...............24 8. Additional Informations Revision History 8FX Family BGM Adaptor MB2146-07-E Operation Manual, Doc. # 002-05543 Rev. *A...

  • Page 7: Checking The Delivered Product

    Before using the product, make sure that the package contains the following items: BGM adaptor *: 1 ■ USB cable (1.0m): 1 ■ Interface cable: 1 ■ Hardcopy (China RoHS report: 1 ■ *: Referred to as the adaptor. 8FX Family BGM Adaptor MB2146-07-E Operation Manual, Doc. # 002-05543 Rev. *A...

  • Page 8: Introduction

    Introduction MB2146-07-E is a tool used for Cypress 8FX MCU. It is updated from MB2146-08-E and similar to MB2146-08-E in appearance. MB2146-07-E has inherited all functions of MB2146-08-E. It is updated to obtain a better performance and new functions. This operation manual is applicable to all series of Cypress 8-bit microcontroller except MB95200H/ 210H/220H.

  • Page 9: System Configuration

    Figure 3 -1 shows the system construction when used as the emulator system Figure 3-1. System Configuration. Gates circuit Debug PC USB Target USB socket interface interface MB2146-07-E 8FX Family BGM Adaptor MB2146-07-E Operation Manual, Doc. # 002-05543 Rev. *A...

  • Page 10: Interface Overview

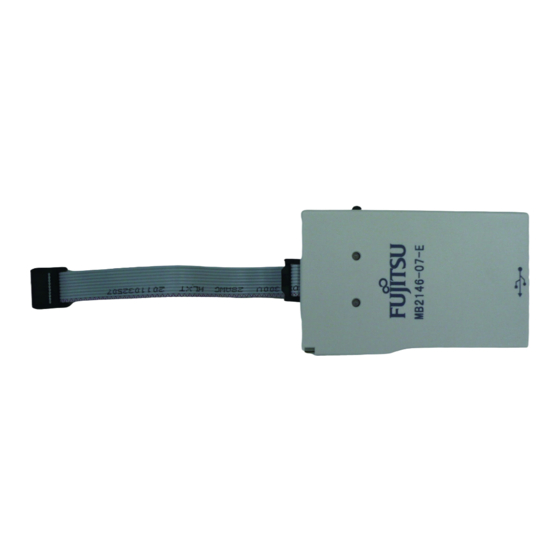

    This chapter describes the BGMA interface. MB2146-07-E Appearance Figure 4-1 shows the BGMA appearance Figure 4-1. BGMA Appearance User interface connector Mode key Interface Sta- Power supply Power supply USB connector 8FX Family BGM Adaptor MB2146-07-E Operation Manual, Doc. # 002-05543 Rev. *A...

  • Page 11: Bgma Uart Interface

    MCU When the adaptor interface connector is mounted on the user system, connect the MCU to the adap- tor interface connector according to the following specifications. 8FX Family BGM Adaptor MB2146-07-E Operation Manual, Doc. # 002-05543 Rev. *A...
  • Page 12 *2MCU means the evaluation MCU. Note: The MB2146-07-E pin assignment has no compatibility with the MB2146-09 and MB2146-09A-E pin assignments. It is impossible to use these two BGM adaptors for different MCUs. If used by mistake, there is a possibility that the debug system will not operate correctly or could be damaged.

  • Page 13: Feature List

    Feature list Function Description of BGMA ■ The MB2146-07-E BGMA is updated from MB2146-08-E. The updated features are described below. BGMA power supply is DC 5V (Power supply from the USB pin) ■ UART Baud rate Max speed improved: ■...
  • Page 14 Standalone programming, target CR trimming Program (standalone, USB programmer, Trimming) error, logging data write error Twinkling Reserved Logging will full soon Orange Logging data record time is over 255  (8kbyte-9) Twinkling 8FX Family BGM Adaptor MB2146-07-E Operation Manual, Doc. # 002-05543 Rev. *A...

  • Page 15: Performance Description

    If a user wants to update the internal program code for the BGMA when starting debugging, check Setup Wizard Dialog Box in Monitor Program Auto-load, as shown in Figure 3. Table 6-1. Figure 3 Monitor Program Auto-load 8FX Family BGM Adaptor MB2146-07-E Operation Manual, Doc. # 002-05543 Rev. *A...
  • Page 16 Performance Description 6.1.3 Device Type Select the device name to USB in Type Field, as shown in Figure 6-1 below. Figure 6-1. Device Type 8FX Family BGM Adaptor MB2146-07-E Operation Manual, Doc. # 002-05543 Rev. *A...
  • Page 17 Figure 6-3. Power Supply Note: If the user current is greater than the max current (200mA), the system will show the power error and stop the power supply. 8FX Family BGM Adaptor MB2146-07-E Operation Manual, Doc. # 002-05543 Rev. *A...
  • Page 18 This dialog box is used to select the Flash memory synchronous function when starting debug. If the dialog box is selected, the SOFTUNE will read all MCU flash data to SOFTUNE. 8FX Family BGM Adaptor MB2146-07-E Operation Manual, Doc. # 002-05543 Rev. *A...
  • Page 19 Right-click the blank area in the RAM Monitoring Window and select monitoring from the shortcut menu to enable the RAM Monitoring function, as shown in Figure 6-5. Figure 6-5. RAM Monitoring Function 8FX Family BGM Adaptor MB2146-07-E Operation Manual, Doc. # 002-05543 Rev. *A...
  • Page 20 After that, a user can monitor all selected RAMs in RAM Monitoring window, as shown in Figure 6-7. Figure 6-7. RAM Monitoring Status 8FX Family BGM Adaptor MB2146-07-E Operation Manual, Doc. # 002-05543 Rev. *A...

  • Page 21: How To Upgrade Bgma Fw (Firmware)

    1. Copy EmlCmnB_896.mhx file in the directry of "..\Softune\896" where Softune is installed. Figure 7-1. The examle of adding HEX file 1. Connect BGMA to PC. 2. Turn on the BGMA power. 8FX Family BGM Adaptor MB2146-07-E Operation Manual, Doc. # 002-05543 Rev. *A...
  • Page 22 3. Enable SOFTUNE Upgrade function. Select “Monitor program auto-loading” in SOFTUNE. For the detailed operation, see sector 6.1.2. Figure 7-3. Enable SOFTUNE Upgrade function 1. Right-click SOFTUNE “Debug” and select “start debug”. 8FX Family BGM Adaptor MB2146-07-E Operation Manual, Doc. # 002-05543 Rev. *A...
  • Page 23 How to Upgrade BGMA FW (firmware) Figure 7-4. Start Debug Icon 8FX Family BGM Adaptor MB2146-07-E Operation Manual, Doc. # 002-05543 Rev. *A...
  • Page 24 2. If the “Abort” button is not pressed, the SOFTUNE continues upgrading. 3. When 100% upgrade is finished, the BGMA FW upgrading is completed. When the version of the monitor program is the same, updating is not done. 8FX Family BGM Adaptor MB2146-07-E Operation Manual, Doc. # 002-05543 Rev. *A...

  • Page 25: Fw Upgrade Using Pc Helper Programmer

    1. If the BGMA item shows “Connected” and the color is green like the picture above, the BGMA and PC connect normally. 2. Press “Open” item to choose the BGMA HEX file, the following picture is a sample. 8FX Family BGM Adaptor MB2146-07-E Operation Manual, Doc. # 002-05543 Rev. *A...
  • Page 26 1. When the HEX file is chosen, press “Upgrade” item to upgrade BGMA FW. 2. When the sub-window pops up, select recommend item and “OK”. 3. When downloading is successfully completed, "Download Successful" is shown as follows. Figure 7-10. Successful Sample 8FX Family BGM Adaptor MB2146-07-E Operation Manual, Doc. # 002-05543 Rev. *A...

  • Page 27: Additional Informations

    Additional Informations For more informations please visit our websites: http://www.cypress.com/documentation/development-kitsboards/mb2146-08-e http://www.cypress.com/documentation/software-and-drivers/monitor-program Please contact your local support team for any technical question. 8FX Family BGM Adaptor MB2146-07-E Operation Manual, Doc. # 002-05543 Rev. *A...

  • Page 28: Revision History

    Document Title: 8FX Family 8-bit Microcontroller BGM Adaptor MB2146-07-E Operation Manual Document Number: 002-05543 Origin of Revision ECN# Issue Date Description of Change Change  05/24/2013 HUAL Initial release 5273060 05/19/2016 HUAL Migrated to Cypress format 8FX Family BGM Adaptor MB2146-07-E Operation Manual, Doc. # 002-05543 Rev. *A...
