µ-Dimension 1510 Assembly Instructions

Chair

Thank you for purchasing our fine product!

This package contains all tools necessary for assembly.

WARNING

: Failure to follow these directions and warnings can result in serious injury

and/or product damage.

Assistance is required to assemble this chair.

Never stand on the chair or use it as a ladder.

Do not tip the chair when seated.

Periodically re-tighten all bolts and legs.

Do not exceed 250 lbs. (113.4 kg) weight limit on the chair.

If any parts become missing, damaged or worn, discontinue use until they are replaced with identical parts.

Always seek assistance before moving furniture.

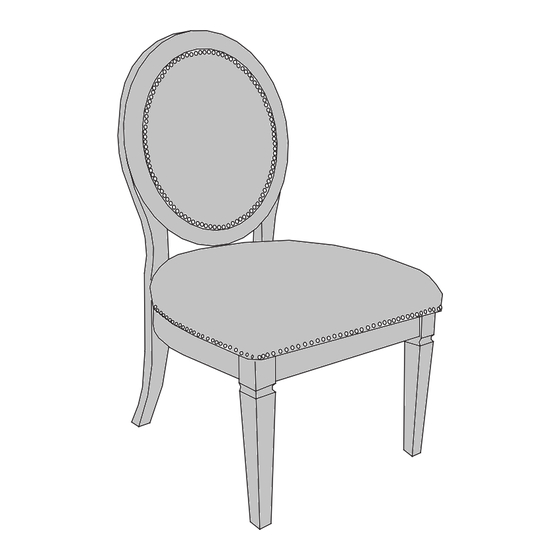

#1510 Chair

Assembly Instructions

Give us a chance to make it right.

Do not return this item to the store. Contact our friendly customer

service department with any

for missing or damaged parts are normally shipped the same day!

TOLL FREE: 1-866-528-8364

Monday - Friday, 8am-5pm, ET. After business hours, leave a message.

We will return your call the next business day.

#1510 Chair

problems or comments

. Replacements

Page 1

Table of Contents

Need help?

Do you have a question about the 1510 and is the answer not in the manual?

Page 1 #1510 Chair Assembly Instructions Thank you for purchasing our fine product! This package contains all tools necessary for assembly. Give us a chance to make it right. Do not return this item to the store. Contact our friendly customer service department with any problems or comments .
Page 2 #1510 Chair Assembly Instructions PARTS LIST Part Drawing Part Name Qty. Part Drawing Part Name Qty. Long Bolt Back with Washers Short Bolt Seat with Washers Front Leg Allen Wrench Step 1 - Remove all parts from their packaging and confirm that the quantities match those listed above.
Page 3 #1510 Chair Assembly Instructions Step 2 - Lay the Seat (Part B) on a flat surface. Align the bolt holes in the front corner of the Seat with the corresponding bolt holes in the Front Legs (Part C). Hand thread four Long Bolts with Washers (Part D) through the Seat and into the Front Legs.
Page 4 #1510 Chair Assembly Instructions Step 4 - Align the bolt holes in the rear corners of the Seat (Part B) with the corresponding bolt holes on the Back (Part A). Insert clockwise 4 Long Bolts with Washers (Part D) through the Seat and into the Back.
