µ-Dimension Raleigh 9010 Assembly Instructions

µ-Dimension Raleigh 9010 Assembly Instructions

Writing desk

Advertisement

Thank you for purchasing our fine product!
This package contains all tools necessary for assembly.
WARNING
: Failure to follow these directions and warnings can result in serious injury
and/or product damage.
Assistance is required to assemble this desk.
!
Never stand on the desk or use it as a ladder.
!
Do not place any hot items directly on the desk.
!
Periodically re-tighten all bolts and legs.
!
Do not exceed 100lbs. (45.36 kg) weight limit on the desk.
!
If any parts become missing, damaged or worn, discontinue use until they are replaced with identical parts.
!
Always seek assistance before moving furniture.
!

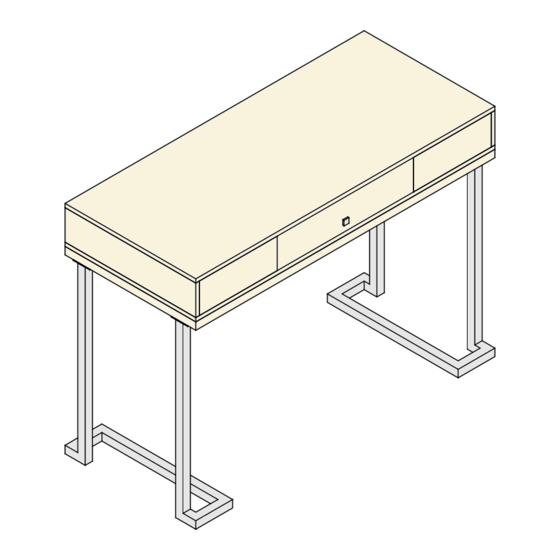

#9010 Raleigh Writing Desk
Assembly Instructions
Give us a chance to make it right.
Do not return this item to the store. Contact our friendly customer
service department with any
for missing or damaged parts are normally shipped the same day!
TOLL FREE: 1-866-528-8364
Monday - Friday, 8am-5pm, ET. After business hours, leave a message.
We will return your call the next business day.
#9010 Raleigh Writing Desk
problems or comments
. Replacements
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Raleigh 9010 and is the answer not in the manual?

Questions and answers

Summary of Contents for µ-Dimension Raleigh 9010

  • Page 1 #9010 Raleigh Writing Desk Assembly Instructions Thank you for purchasing our fine product! This package contains all tools necessary for assembly. Give us a chance to make it right. Do not return this item to the store. Contact our friendly customer service department with any problems or comments .
  • Page 2 #9010 Raleigh Writing Desk Assembly Instructions PARTS LIST Part Drawing Part Name Qty. Part Drawing Part Name Qty. Bolt with Top Frame Washers Legs Allen Wrench Adjustable Foot Glides Step 1 - Remove all parts from their packaging and confirm that the quantities match those listed above.
  • Page 3 #9010 Raleigh Writing Desk Assembly Instructions Step 2 - Lay the Top Frame (Part A) up-side down on a flat surface. Align the Legs (Part B) with the Top Frame like shown below. Insert three Bolts with Washers (Part D) through the holes in each tab at the top of the legs and into the corresponding threaded inserts in the...
