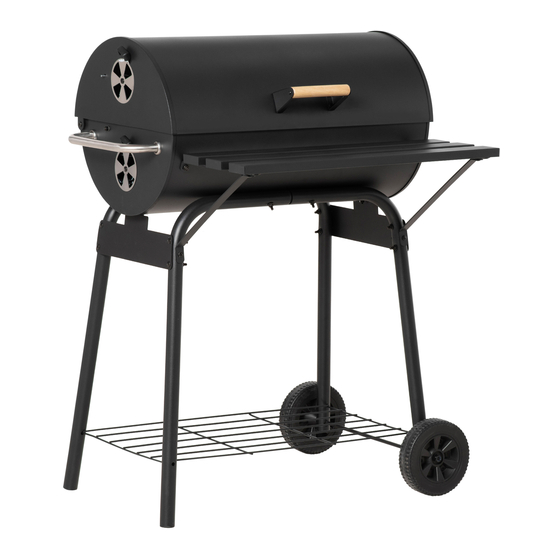

- Page 1 INb1a008_US 846-081 CHARCOAL GRILL IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY ASSEMBLY & INSTRUCTION MANUAL...
- Page 3 WARNINGS • Out door use only. DO NOT use t he grill indoors or in an enclosed or non-vent ilat ed area. • Keep a fire ext inguisher near t his product at all t imes. • For household use only. DO NOT operat e t his grill for ot her t han it s int ended use. •...
- Page 4 Parts List Desc. Pic. Desc. Pic. Back leg LH Front leg RH Bottom grate Air rent Back leg RH Handle bracket Wheel shaft Wood handle Wheel Warming grate Front tabel Warming grate hook Tabel support 28+2 Cooking grate M6*12 screw (spare) Ash pan M6*16 screw...
- Page 5 Assembly Note: Please do not tight the screws and nuts till all assembly steps completed. 1. Legs (15, 16, 17&18) are fixed together. Bottom grate (2) are fixed to the leg holes. Side plates (14) are fixed to the legs by 8pcs M6*12 screws (A).
- Page 6 Assembly 2. Wheel shaft (19) and wheels (20) are fixed on the RH legs by 2pcs M10 nuts (D).
- Page 7 Assembly 3. Firebox is fixed to legs by 6pcs M6*12 screws (A) and 2pcs M6 nuts(C).
- Page 8 Assembly 4. Air vents (3) are fixed to firebox by 2pcs M6*12 screws (A) and M6 nuts (C).
- Page 9 Assembly 5. Handle (12) and handle washers (11) are fixed to firebox by 2pcs M6*16 screws (B).
- Page 10 Assembly 6. Front tabel supports (22) are fixed to the front legs by 2pcs M6*12 screws (A).
- Page 11 Assembly 7. Front tabel (21) is fixed to the firebox and supports by 4pcs M6*12 screws (A) and 2pcs M6 nuts (C).
- Page 12 Assembly 8. Lid (1) is fixed to the firebox by 2pcs M6*20 step screws (E).
- Page 13 Assembly 9. Air vents (3) are fixed to the lid by 2pcs M6*12 screws (A).
- Page 14 Assembly 10. Wood handle (5) is fixed to the handle brackets (4) by 2pcs M5*12 self-tap screws (E). Then wood handle is fixed to the lid by 4pcs M6*12 screws (A) and M6 nuts (C).
- Page 15 Assembly 11. Warming grate (6) and warming grate hook (7) are fixed togegther.
- Page 16 Assembly 12. Warming grate is fixed to the lid, then to the firebox by 2pcs M6*20 step screws (F).
- Page 17 Assembly 13. Ash pan (9) and ash pan hooks (10) are fixed to the firebox.
- Page 18 Assembly 14. Cooking grates (8) are fixed on the firebox. TIGHT ALL SCREWS ASSEMBLY FINISHED...
