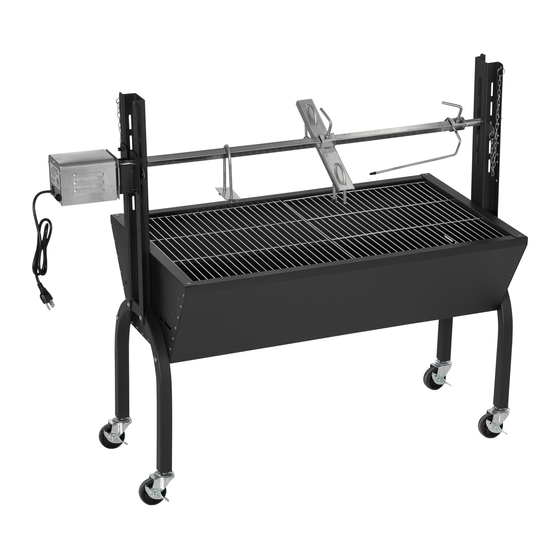

- Page 1 INb1a006_US_UK 846-078_846-078V70 MINI ROTISSERIE GRILL IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY ASSEMBLY & INSTRUCTION MANUAL...
- Page 3 WARNINGS IMPORTANT INFORMATION 1. The grill should always be used with caution. 2. DO NOT touch or move the grill while it is hot or in use. 3. Never lean over the cooking area while using the grill. 4. Do not leave the grill unattached while cooking. 5.
- Page 4 8+2(spare) 8+2(spare) 12+2(spare)
- Page 5 Assembly Note: Please do not tight the screws and nuts till all assembly steps completed. l i a 1 * 6 4 * 6 1. Casters (Wheels) are assmebled to the legs, tighted by tool.
- Page 6 Assembly 2. Right leg is fixed on body by 2pcs M6*40 screws and M6 nuts.
- Page 7 Assembly 3. Left leg is fixed on body by 2pcs M6*40 screws and M6 nuts.
- Page 8 Assembly 4. Left and Right brackets are fixed onto the body by 2 pcs M6*12 screws and nuts on top, 2 pcs M6*40 screws and nuts on bottom. Each end is same.
- Page 9 Assembly 5. Motor Bracket is fixed on LH of bracket by 4 pcs M6*12 screws.
- Page 10 Assembly 6. Charcoal tray is fixed into the body directly.
- Page 11 Assembly 7. Two grids are fixed onto the body.
- Page 12 Assembly 8. Spit (skewer) sharp head is screwd tightly. Then mount the meat spikes, tail clamp, and/or leg clamp to the spit (skewer).
- Page 13 Assembly 9. Spit (skewer) is fixed into brakcet and lay on holding plates.
- Page 14 Assembly 10. Motor is fixed on the motor bracket by 4 pcs M4 screws. Note: Release the 4pcs M6*12 screws for motor bracket before cooking height adjustment. And retight the 4pcs M6*12pcs screws after height fixed. TIGHT ALL SCREWS FINALLY BEFORE USE THE GRILL THE ROTISSERIE GRILL ASSEMBLY IS COMPLETED...
