UM2112
1

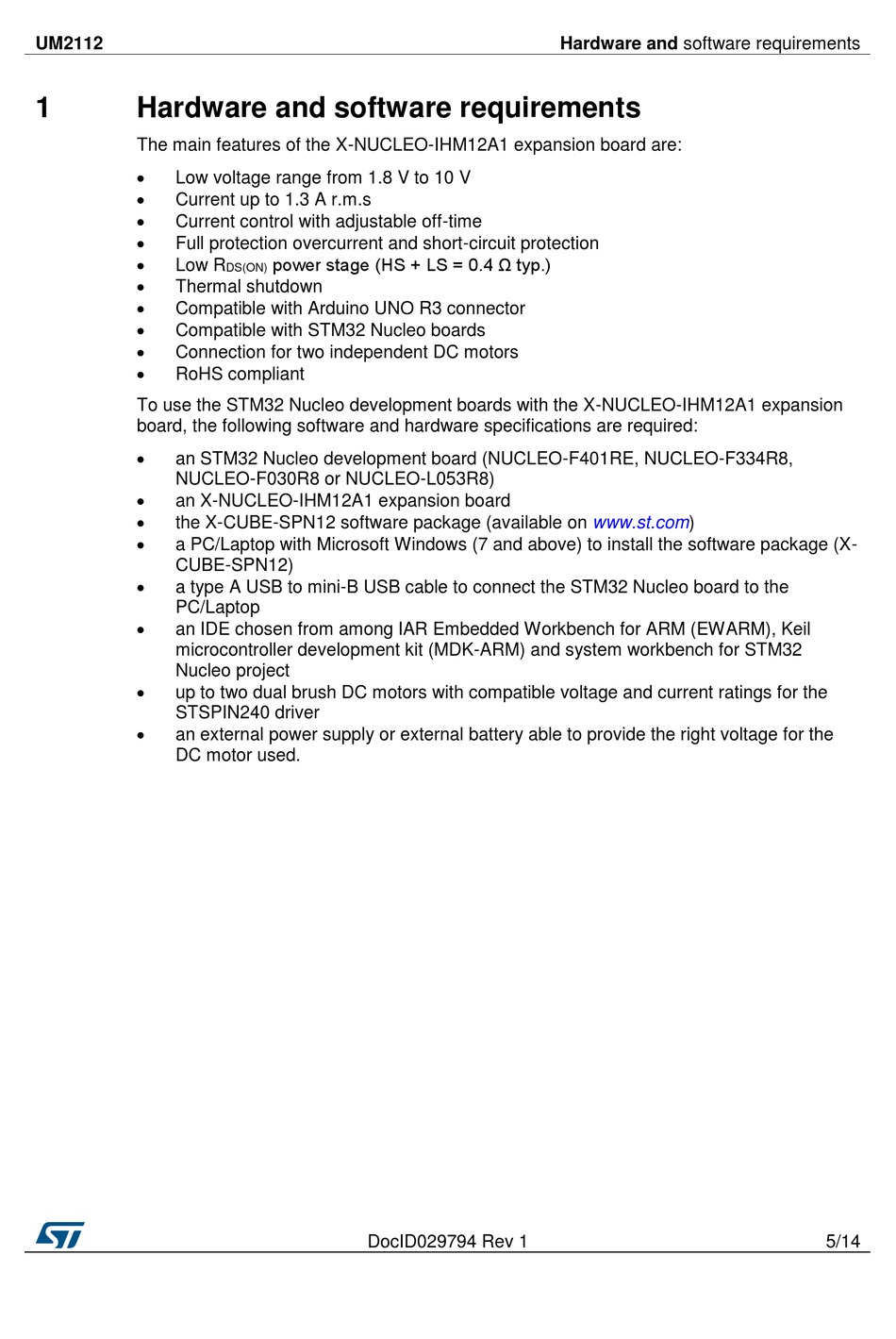

Hardware and software requirements

The main features of the X-NUCLEO-IHM12A1 expansion board are:

Low voltage range from 1.8 V to 10 V

Current up to 1.3 A r.m.s

Current control with adjustable off-time

Full protection overcurrent and short-circuit protection

Low R

Thermal shutdown

Compatible with Arduino UNO R3 connector

Compatible with STM32 Nucleo boards

Connection for two independent DC motors

RoHS compliant
To use the STM32 Nucleo development boards with the X-NUCLEO-IHM12A1 expansion
board, the following software and hardware specifications are required:

an STM32 Nucleo development board (NUCLEO-F401RE, NUCLEO-F334R8,
NUCLEO-F030R8 or NUCLEO-L053R8)

an X-NUCLEO-IHM12A1 expansion board

the X-CUBE-SPN12 software package (available on www.st.com)

a PC/Laptop with Microsoft Windows (7 and above) to install the software package (X-
CUBE-SPN12)

a type A USB to mini-B USB cable to connect the STM32 Nucleo board to the
PC/Laptop

an IDE chosen from among IAR Embedded Workbench for ARM (EWARM), Keil
microcontroller development kit (MDK-ARM) and system workbench for STM32
Nucleo project

up to two dual brush DC motors with compatible voltage and current ratings for the
STSPIN240 driver

an external power supply or external battery able to provide the right voltage for the
DC motor used.
power stage (HS + LS = 0.4 Ω typ.)
DS(ON)
DocID029794 Rev 1
Hardware and software requirements
5/14
