Vanner LSC12-2000 Owner's Manual

True sinewave inverter/charger
Hide thumbs
Table of Contents

Advertisement

Quick Links

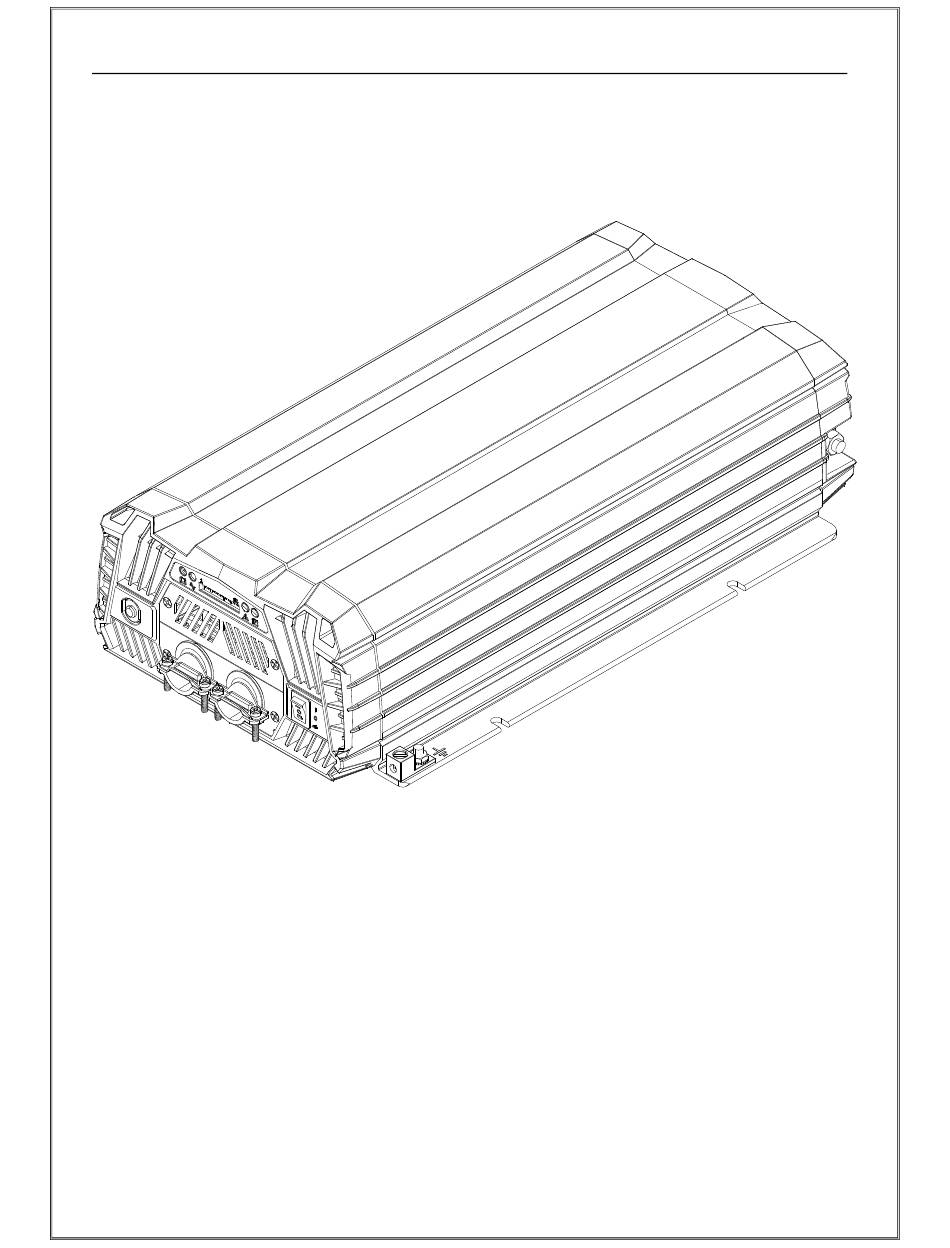

VANNER
Owner's Manual
Incorporated
True Sinewave
Inverter/Charger
Model LSC12-2000
LifeSine LSC12-2000 - Owner's Manual
1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LSC12-2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Vanner LSC12-2000

Summary of Contents for Vanner LSC12-2000

  • Page 1 VANNER Owner’s Manual Incorporated True Sinewave Inverter/Charger Model LSC12-2000 LifeSine LSC12-2000 - Owner’s Manual...

  • Page 2: Table Of Contents

    2-1. System overview 2-2. Electrical specification 2-3. Mechanical drawings INSTALLATION AND MAINTENANCE 3-1. Unpacking the product 3-2. Front Panel 3-3. Rear panel SYSTEM FUNCTION INTRODUCTION 4-1. Battery charger introduction 4-2. Operation mode introduction 5. TROUBLE SHOOTING LifeSine LSC12-2000 - Owner’s Manual...

  • Page 3: Safety Instructions

    1. Safety Instructions 1-1. Warnings and symbols Safety instructions and warnings are marked in this manual by the following pictograms： Supplementary information on operating the device. CAUTION Safety instruction: Failure to observe this instruction can cause material damage and impair the function of the device. CAUTION Safety instruction relating to a danger from an electrical current or voltage.

  • Page 4: Warning Regarding The Use Of Batteries

     Do not open or disassemble the unit, warranty may be voided.  The DC and AC side connections should be firm and tight.  Grounding：Reliable grounding of rack-mounted equipment should be maintained.  Do not drop a metal tool on the battery. The resulting sparks or short-circuit on the battery or on the other electrical part may cause an explosion.

  • Page 5: Function Characteristics Introduction

    2. Function Characteristics Introduction 2-1. System overview The LSC12-2000 is an inverter / charger system, designed with advanced power electronic and digital signal processor technology offering the following features：  Bi-directional All-in-One Design.  Certified by UL ( UL458 Vehicle & Supplement SA ).

  • Page 6: Electrical Specification

    2-2. Electrical specification Specification Model No. Electrical Item LSC12-2000 Nominal Voltage 12 VDC Input Voltage 10.5 ~ 16.5 VDC Range (±0.5V) Input Over-Voltage 16.5 VDC Protection (±0.5V) Input Over-Voltage 15.5 VDC Warning (±0.5V) Input Under- Input Voltage Protection 10.5 VDC Characteristics (±0.5V)
  • Page 7 1. Max Inverter output define inverter 100% load output at Vac =100V / 200V 2. Max AC input current Limit by the Breaker 3. LSC12-2000 is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

  • Page 8: Mechanical Drawings

    De-rating Curve ： Fig. 2 LSC12-2000 De-rating Curve 2-3. Mechanical drawings ： Unit : mm[inch] Fig. 3 LSC12-2000 Mechanical drawings...

  • Page 9: Installation And Maintenance

    3-2. Front Panel ： Fig. 4 LSC12-2000 front panel introduction Front panel Two 3/4 inch knockouts provided with cable-clamp strain reliefs to allow and hold the AC input and output field wiring. AC Output...
  • Page 10 Model No. AC IN AWG AC OUT AWG GROUNDING AWG LSC12-2000 30A/10AWG 30A/10AWG 30A/10AWG This connection is used to tie the exposed chassis of the inverter to the DC grounding system.
  • Page 11 3-2-1. DIP(Function) switch： ： ： ： 3-2-1-1 Output Voltage switch Function (S1,S2)： ： ： ： Default : 120VAC Output Voltage 100V 110V 115V 120V ： Table 5 Output voltage function definition 3-2-1-2 Output Frequency switch Function (S3)： ： ： ： Default : 60HZ Frequency 50HZ 60HZ...
  • Page 12 3-2-1-5 Charger current Select Function(S9,S10)： ： ： ： Default : 100% Charger Current (%) 100% ： Table 9 Charger current select function definition 3-2-1-6 DC Source Output On/Off Function (S11)： ： ： ： Default : ON ESB function ： Table 10 DC source output On/Off function definition 3-2-1-7 Saving Function Switch On/Off Function (S12)：...

  • Page 13: Rear Panel

    (24V: >31.0V) Battery Under Slow Blink Voltage Protection (12V: < 10.5V) (24V: < 21.0V) Battery Over Fast Blink Voltage Protection (12V: >16.5V) (24V: >33.0V) ： Table 13 Status LED indicator 3-3. Rear panel ： Fig. 5 LSC12-2000 Rear panel introduction...
  • Page 14 External Fuse LSC12-2000 #2/0 400A >400A Auxiliary DC Second charger limit current protection. output Fuse Auxiliary DC LSC12-2000 has a second charger output connector can be used to give a maintenance of output a small battery. Maximum current is 20A.
  • Page 15 Remote control terminal may be connected to a Form C relay for “FAULT” indication. When “FAULT” occurs, the relay switches. conditions include Input under/over voltage, Output Short Circuit, Over Temperature, Over load and, Fan Failure. ： Fig. 7 Remote control terminal Item Description Item...
  • Page 16 The fan turned on by Load(%) or Temp(°C) as below chart: Fan speed control Note: the fan full speed(100%) turned when the status of over temperature, the circuit short, and the over load occur...

  • Page 17: System Function Introduction

    4. System Function Introduction The LSC12-2000 is a battery charger, a pure sine wave inverter and an AC transfer system in one compact enclosure. 1. The three-step charging function guarantees that the batteries are always charged 100% (User-selectable). 2. The pure sine wave inverter assures that the AC output voltage is perfectly reliable even when limited external AC power is available.

  • Page 18: Operation Mode Introduction

    4-2. Operation mode introduction The LSC12-2000 is not just a combination of an inverter and a battery charger. There are many additional features which can be used to increase the total available AC power, even when external AC power is limited.
  • Page 19 AC power. The batteries are recharged now. 4-2-2. Power Support function With the adjustable AC input current limit function, Power Support function of the LSC12-2000 inverter will trigger OLP (over-load protection) when the output power is over loaded. It can protect the input AC power device such as the utility or generator power system.

  • Page 20: Trouble Shooting

    1. Reduce load in case of restart failed. Over Load Solid 2. Re-turn on the unit manually. (>115%) / Short Circuit Protection Vanner Incorporated 4282 Reynolds Drive Hilliard, Ohio 43026 Ph: 800-AC POWER Ph: 614-771-2718 Fax: 614-771-4904 www.vanner.com Manual P/N: D920563-A...
