3.0) Unpacking the Equipment

The equipment is shipped in a sturdy plywood crate
specifically designed to transport and store the
RHGSE. The crate is designed to be opened by
removing ONLY the screws that are marked "R"
on the front and side panels and using the front
cover as a ramp.
➢ Remove the screws that hold the wheel
chock blocks.
➢ Cut the zip tie and pull the pin, then using the
handle pull the RHGSE out of the crate and
down the ramp. Check to ensure the wheel
locks are unlocked as soon as the
swiveling wheels clear the box.
➢ Unlock the swivel locks in order to freely
move the RHGSE around.
➢ Remove and unpack the parts stored in the
Rotatub.
Lubridryer Pads
(spares)
Cable
Reel
Extension
Lubridryer
This manual contains proprietary information and is not to be copied or disclosed without written permission from Zephyr International LLC
Load Indicator Holder

Figure 4 Loose components

Copyright 2002-2015
Old style Load
Indicator with 9-volt
battery
Tub plugs (spares)
New style
load indicator
with AA
Batteries
600 lb. Hook
Checkpoint

Figure 5 Misc. Components

ZOM-11000-2 v2 Rev G

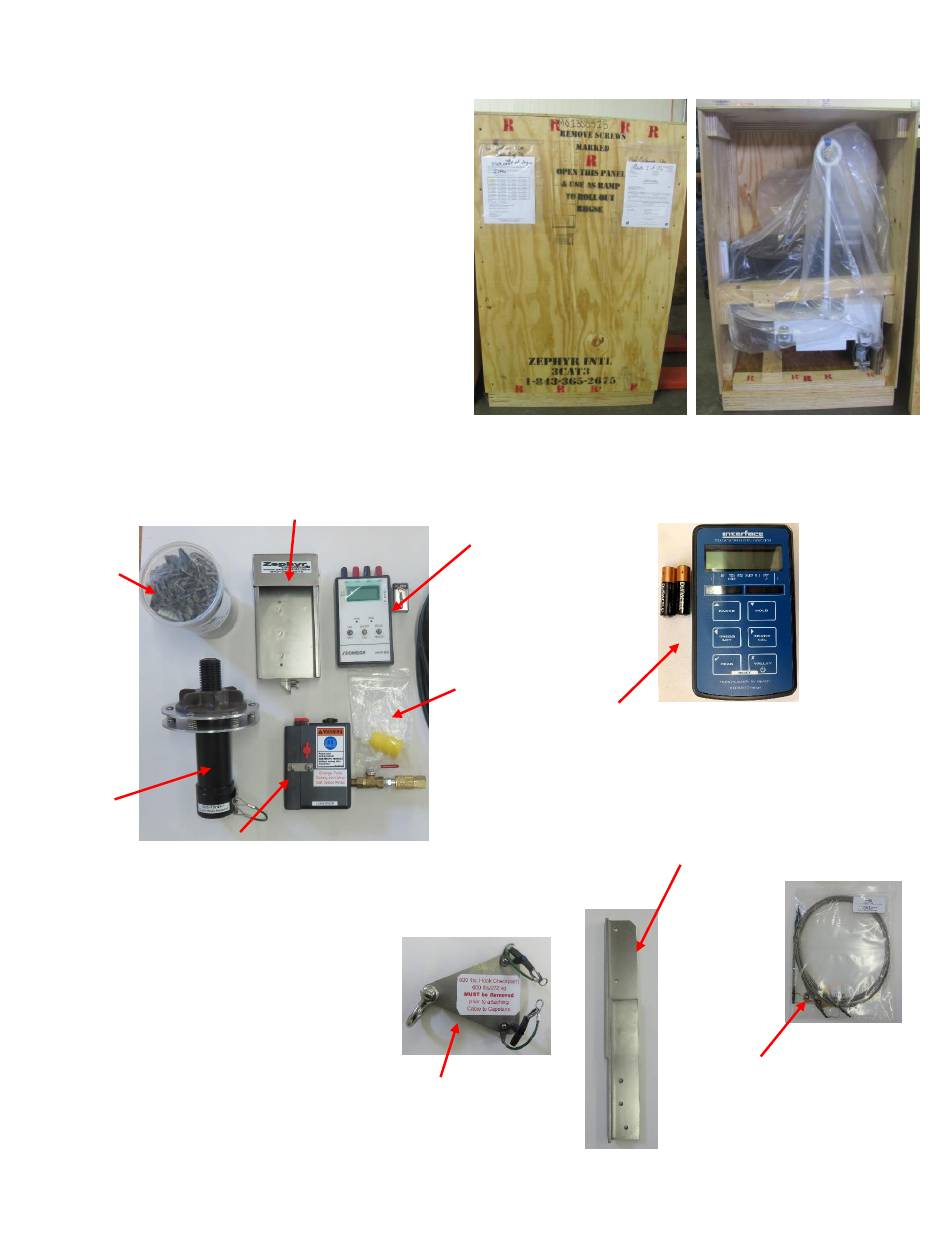

Figure 3 Shipping crate
