6.19) Hook Attachment Check
A hook check is available to attach the rescue hook to in order to
perform the hook load test. When the wheels of the RHGSE
come off the ground there will be a 600 lb. load on the hook and
cable end.
ZGS-11443-1 Manual GSE Lifting Assembly MUST BE
removed from Upper Upright Bracket prior to wrapping the
cable around the capstans.
Connect the rescue hoist hook to the Manual GSE Lifting
Assembly.
Retract cable, lifting Manual RHGSE off the ground.
Extend cable, lowering the Manual RHGSE to the ground.
7.0)

Maintenance of the RHGSE

Periodicity
Daily
Perform a Quick Check on
Rotatub Slip Clutch
Visually Check the Capstans
Change the Lubridryer Pads
Monthly
Lubricate the Capstan Drive chain
Measure the Capstans
Measure the Rotatub Slip
Check and adjust the Brake
Handle pivot bolt tightness
Check Limit Switch Operations
Lubricate the drive chain
On-Condition
Adjust the Rotatub Slip
Replace the Capstans
Replace the Exit Roller
Replace the Brake Band
Annually
Check the load display Scaling
Lubricate the Wheel bearings
This manual contains proprietary information and is not to be copied or disclosed without written permission from Zephyr International LLC
CAUTION
Conditions
Scheduled
As needed
Scheduled
Copyright 2002-2015
ZOM-11000-2 v2 Rev G

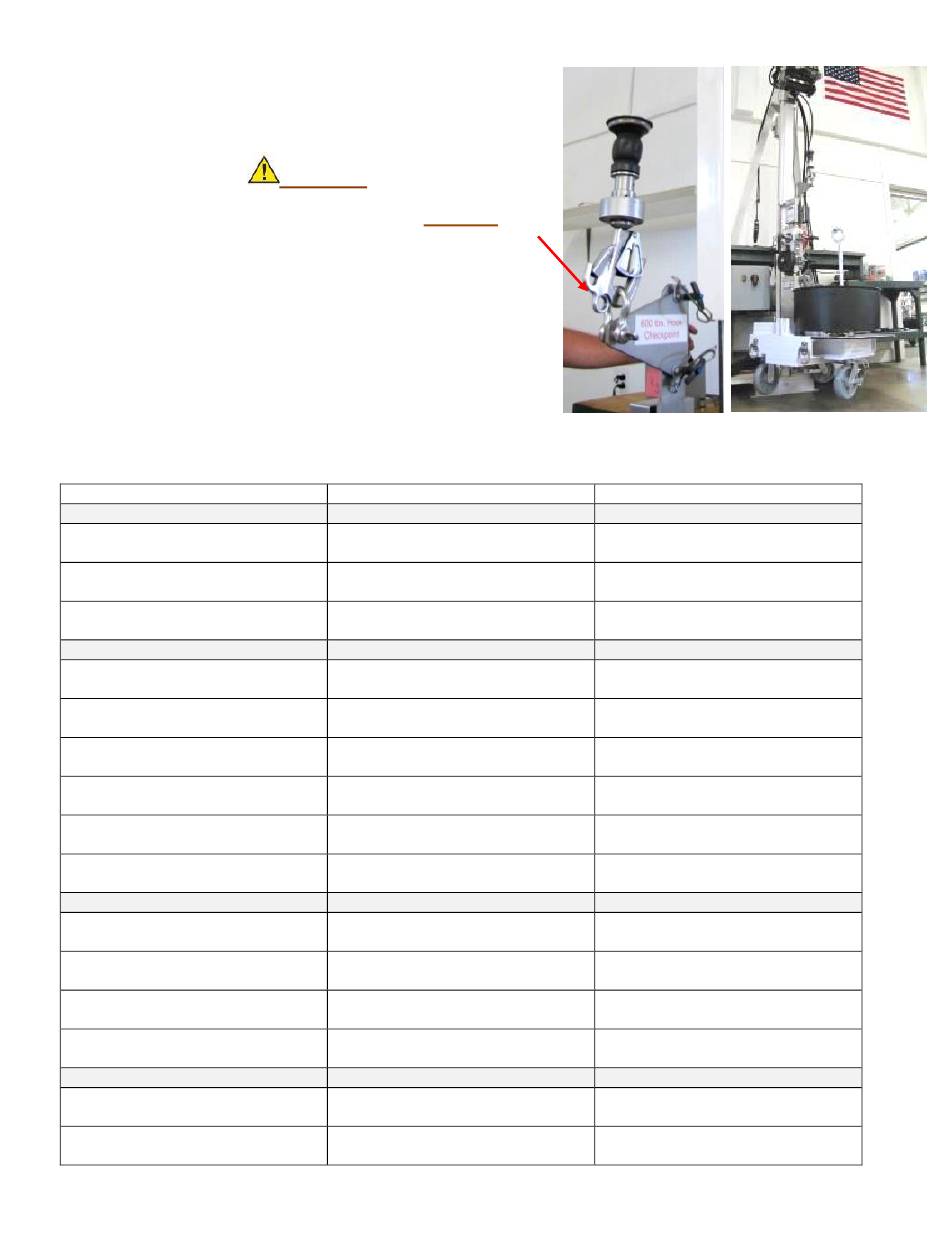

Figure 35 600 lb. Load Check Assembly
Paragraph #
Error! Reference source not
found.
Error! Reference source not
found.
Error! Reference source not
found.
Error! Reference source not
found.
Error! Reference source not
found.
Error! Reference source not
found.
Error! Reference source not
found.
Error! Reference source not
found.
Error! Reference source not
found.
Error! Reference source not
found.
Error! Reference source not
found.
Error! Reference source not
found.
Error! Reference source not
found.
Error! Reference source not
found.
Error! Reference source not
found.
Page 23 of 38
.
