Manual RHGSE Operation and Maintenance Manual
For the old-style indicator, thread the load cell wire through the cap for the load indicator holder and press the
small grommet into the hole in the cap.
Install the 9 volt battery.
Attach the wires to the load cell indicator as follows:
Red wire = + Ex on meter
Black wire = - Ex on meter
Green wire = + In on meter
White wire = - In
Insert the load cell indicator into the holder. Wrap the excess wires up and stow them under the cover and install
the two screws.
This manual contains proprietary information and is not to be copied or disclosed without written permission from Zephyr International LLC
Grommet
Load
Indicator

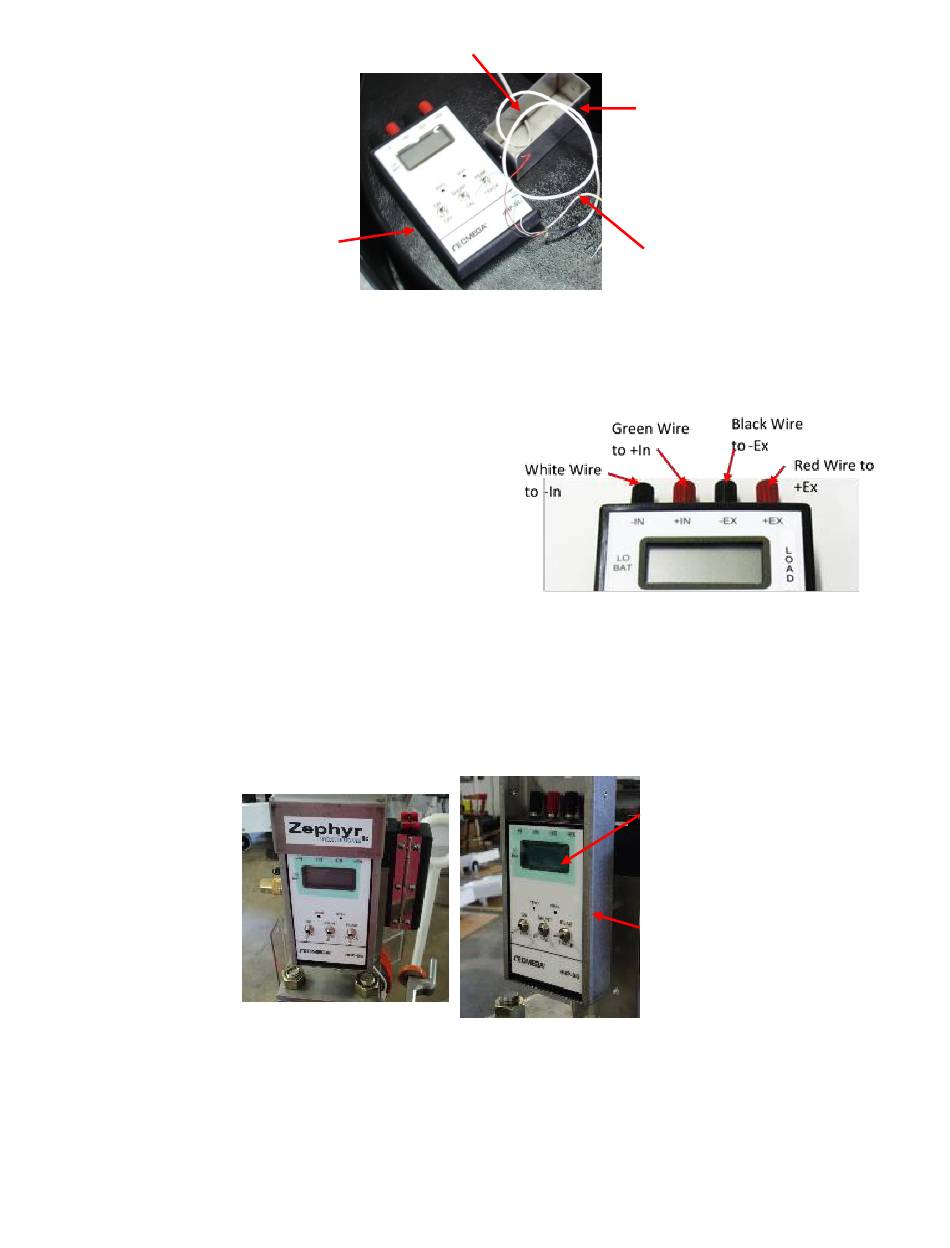

Figure 9 Attaching the Load Cell to the Display
on meter
Figure 11 Old Style Load Indicator Holder
Copyright 2002-2015
ZOM-11000-2 v2 Rev G
Load
Indicator
Holder Cap
Load Cell Wire
Figure 10 Load cell display terminals
Load
Indicator
Load Indicator
Holder
.
Page 8 of 38
