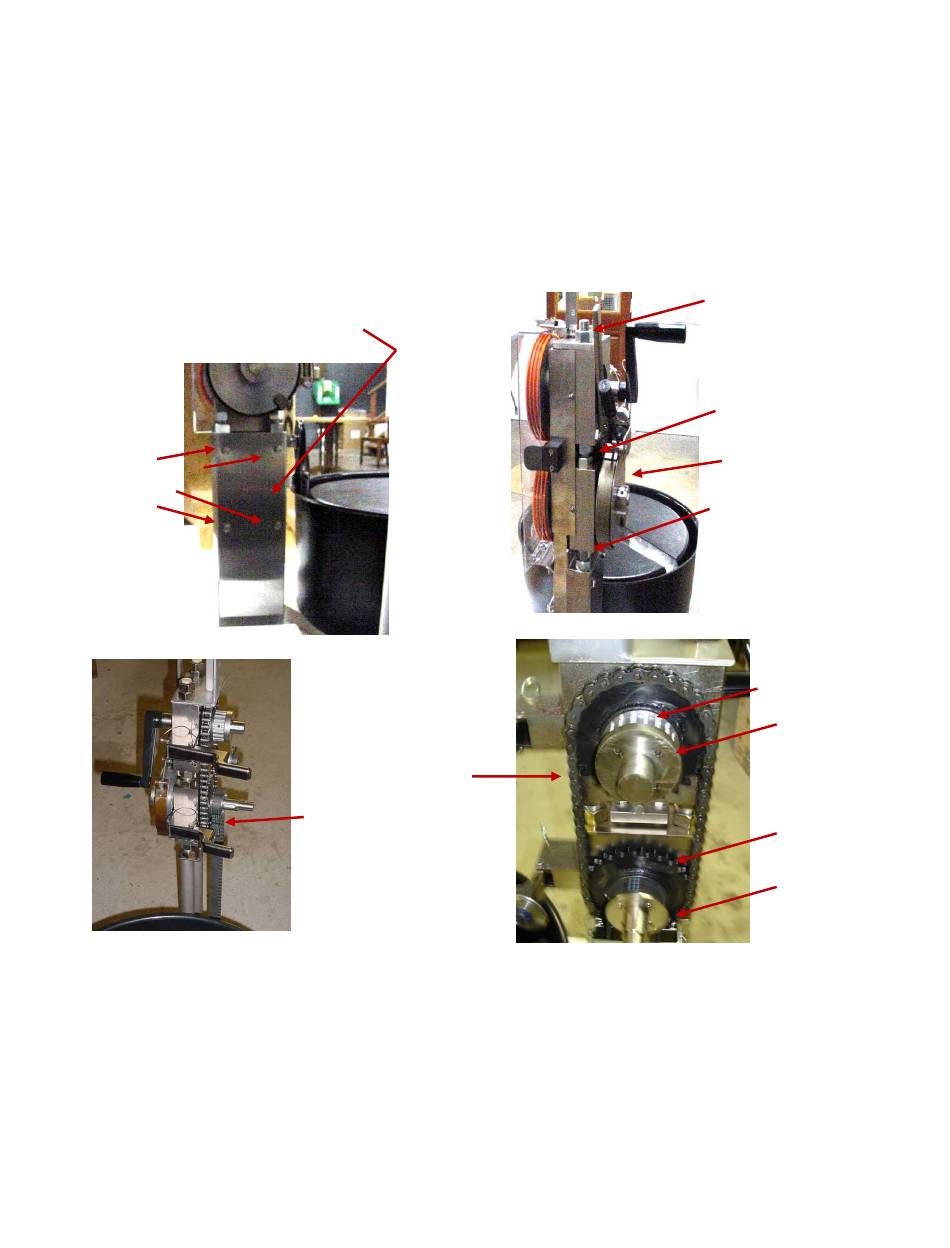

7.7) Chain and belt adjustments
Before making any adjustments remove the cover, for the vertical belt and chain, by removing the four screws
and remove the load clutch assembly.
the two bolts holding the load brake reaction plate to the heads. The capstan heads are coupled by a capstan
chain. The heads are adjustable on two threaded rods. To make any adjustments to the chain or vertical drive
belt, it requires the loosening and adjusting all of the ten (10) nuts from the top of the upright assembly down.
When making adjustments always loosen the large nuts on the threaded rod from the top down and then tighten
from the bottom up while checking the belt or chain for proper tension. Ensure the upright components are
square to each other and the base when completely tight.
Screws (4)
7.8) Capstan drive chain adjustment
The upper capstan chain should be adjusted every 6 months to a year depending on usage. Check for
excessive chain looseness by removing the capstans, removing the chain cover to expose the chain. Check the
chain by pressing on the chain. The chain should be tight with a small deflection of 1/32 of an inch with
moderate hand force. While the chain cover is off check the torque on the setscrews of the chain sprockets and
capstan drive pulleys.
7.9) Vertical drive belt adjustment
Remove the lower vertical belt cover. Adjust the lower capstan head upwards to obtain approximately 1/8 inch
deflection with a light hand force.
This manual contains proprietary information and is not to be copied or disclosed without written permission from Zephyr International LLC
(See section 7.4)
Vertical belt and
chain cover
Chain
Vertical
Drive Belt
Copyright 2002-2015
Remove the load cell and clevis assembly by removing
Large nuts for threaded
rod
ZOM-11000-2 v2 Rev G
(2) nuts to be
adjusted
(4) nuts to be
adjusted
Load clutch
assembly
(2) nuts to be
adjusted
(only the
2 top nuts)
Setscrews
Capstan drive
pulley upper
Chain sprocket
Capstan drive
pulley lower
.
