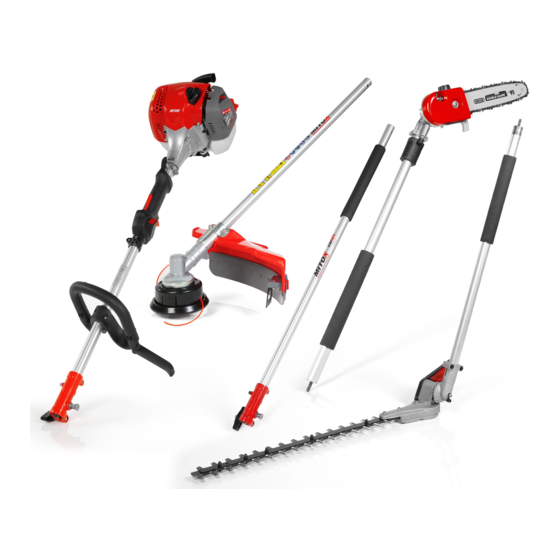

28MT Multi-Tool

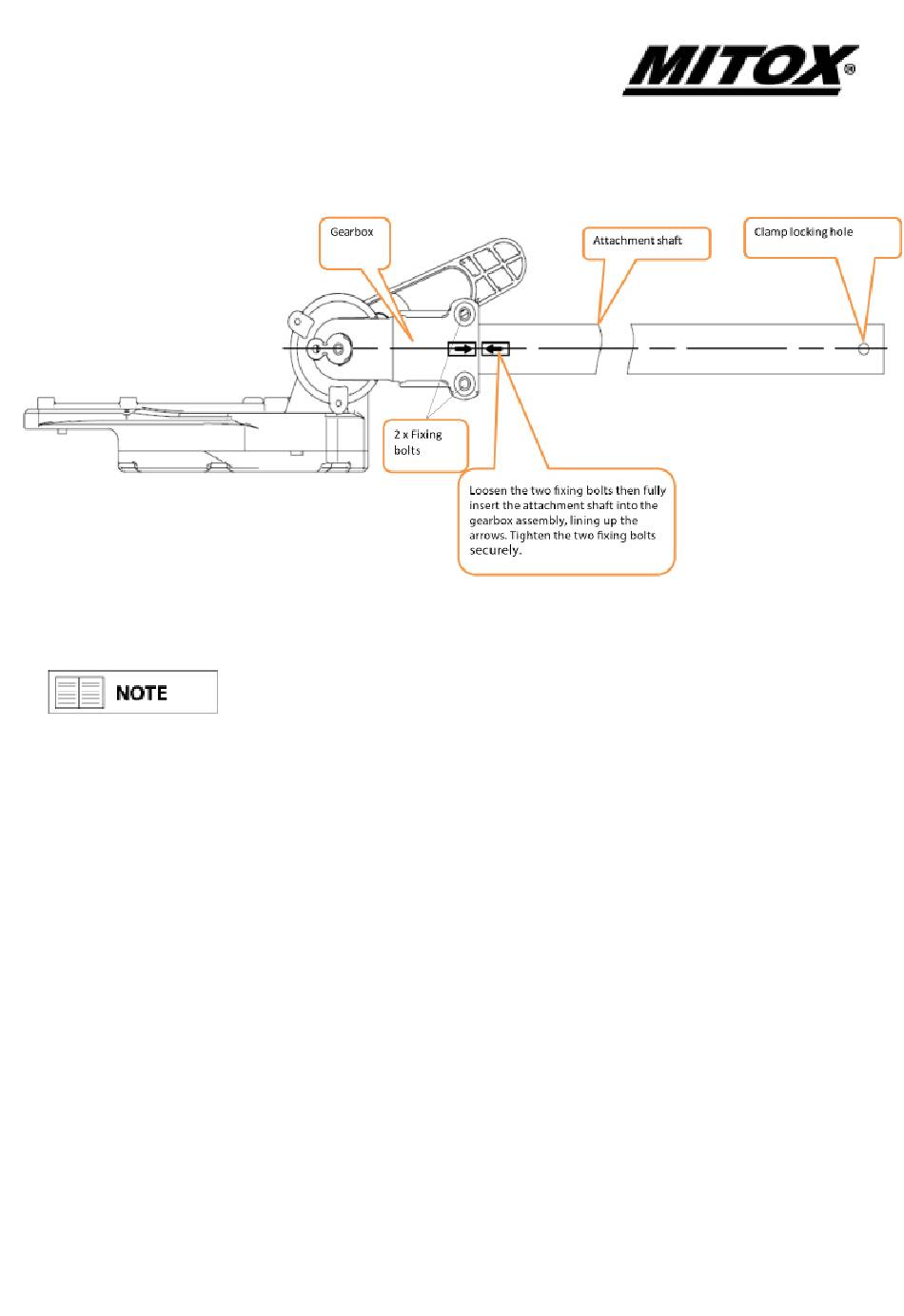

Assembly of the Hedgetrimmer
The thickness of fresh growth (green branches), which may be cut using this
hedgetrimmer, is limited to up to approximately 10mm. Never try to cut branches
thicker than this, as doing so may result in damage to the hedgetrimmer.
Blade information
• Never cut hedges thicker than 10mm and only fresh growth.
• If wire is caught by the blades, damage can occur which is not covered by the warranty.
• When sharpening, removing, or reattaching the blades, be sure to wear thick, sturdy gloves
and use only appropriate tools and equipment to prevent injury.
• After you have finished using the hedgetrimmer, clean the blades and apply clean light grade
lubricating oil to the entire length of the blades, including the blade bolts.
Original Instructions Version December 15
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 28MT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mitox 28MT

Summary of Contents for Mitox 28MT

  • Page 1 28MT Multi-Tool Assembly of the Hedgetrimmer The thickness of fresh growth (green branches), which may be cut using this hedgetrimmer, is limited to up to approximately 10mm. Never try to cut branches thicker than this, as doing so may result in damage to the hedgetrimmer.
  • Page 2 28MT Multi-Tool Operation Adjusting the angle of the cutting blades 1. Stop the engine. 2. Always wear gloves when adjusting the blades. 3. Lay the hedgetrimmer flat on the ground and set the guard (1) to the trimmer blade .
  • Page 3 28MT Multi-Tool Installing the Attachments to the Power Unit (or Optional Extension Shaft) Attachment Locking Clamp Locking pin shaft hole • Pull out the locking pin (1) and twist (2) to lock in the outer position (3). • Loosen the clamp by turning the handle (4).

  • Page 4: Gearbox Lubricant

    28MT Multi-Tool Hedgetrimmer Blades • After each session of operation, oil the cutting blades with light oil. Gearbox Lubricant • DO NOT force grease into the gear boxes, apply 2 or 3 pumps of grease every 15 hours of operation.
  • Page 5 28MT Multi-Tool Parts Diagram - Hedgetrimmer Original Instructions Version December 15...
  • Page 6 28MT Multi-Tool Parts List - Hedgetrimmer ID No. Part Number escription MIC26.1615.0100 RIGHT GEAR BOX ASSEMBLY MIC26.1615.0103 POSITIONAL PLATE MIGB/T97 M5 FLAT WASHER M5 MIGB/T93 M5 SPRING WASHER M5 MIGB/T2671.2 M5X16 SCREW M5X16 MIGB/T3452.1 34.5X1.8 O-RING 34.5X1.8 MIC26.1615.0201 LEFT GEAR BOX...
  • Page 7 28MT Multi-Tool Parts List - Hedgetrimmer ID No. Part Number escription MIGB/T2672 M5X25 SCREW M5X25 MIGB/T2671.2 M5X25 SCREW M5X25 MIGB/T2671.2 M5X18 SCREW M5X18 MIC26.1615.0302 MOUNTED PLATE MIC26.1615.0301 BLADE MIC26.1615.0303 BUSHING MIGB/T889.1 M5 NUT M5 MIB25.0119.0002 BLADE STRIP MIC43.1212.0001 LIMIT SLEEVE MIC43.0212.0001...
  • Page 8 The manufacturer undertakes to replace, any spare parts that are classified as defective by an appointed Mitox service dealer. The manufacturer will not accept liability for the replacement of the machine, either partially or wholly, and /or consequential damages and /or interest charges either directly or indirectly.
