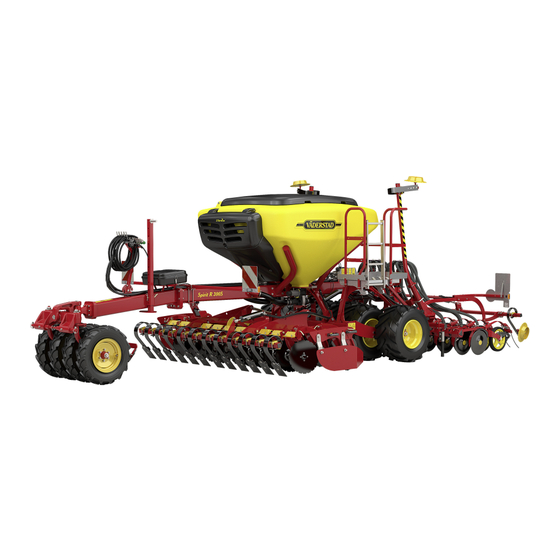

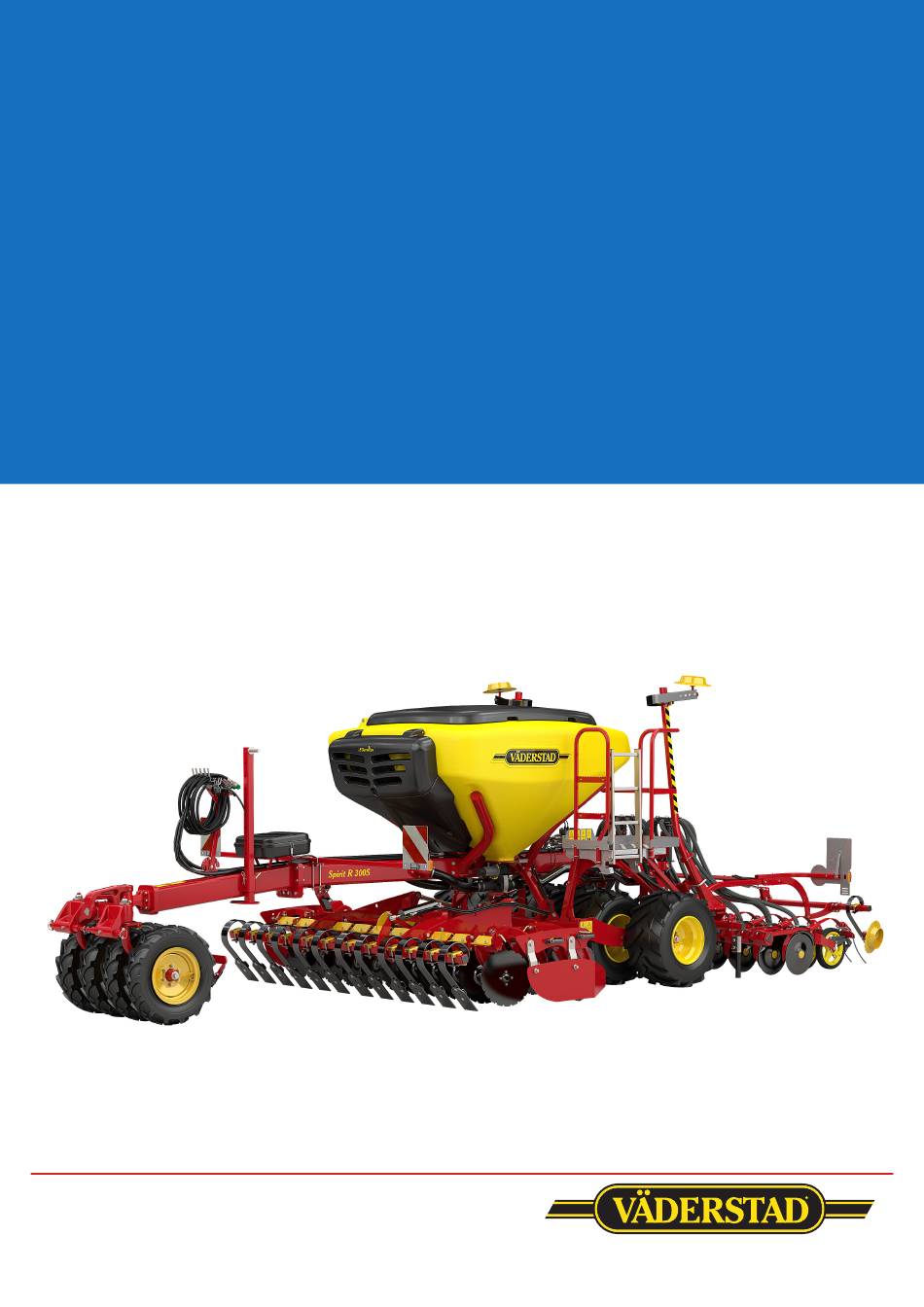

- Page 1 Spirit R Quick Start 903173-en 01.03.2017-1 STR 300S S/N STR0000101 -...
-
Page 2: Table Of Contents
This QuickStart does NOT replace the instruction manual that contains much more detailed information! Table of contents Installation of electrics and hydraulics Settings E-Control Attachments Sowing seed Seed table Loading new software This Quickstart does not replace the instruction manual! -
Page 3: Installation Of Electrics And Hydraulics
STR 300S 1. Electrical installation in tractors Connect the GateWay cable if the tractor has an ISOBUS terminal. Lock the terminal using the locking bolt (A). If the tractor is not equipped with an ISOBUS switch, tractor cabling is available (Accessories, parts no. 172447). -
Page 4: Settings
STR 300S Settings NOTE: The frame must be parallel with the ground when the basic settings are entered! 1. Front tool System Disc If the front and rear discs have different distances to the ground, adjust the push rods (A) in order to bring the front and rear discs to the same distance to the ground. - Page 5 STR 300S 3. Track eradicator If the machine is equipped with CrossBoard and a track eradicator there will be two control plates by the arm attachments. When the relationship between CB and SD has been changed, the track eradicators must also be changed in or- der to achieve the correct angle of attack.
- Page 6 STR 300S 5. Radar ± 35░° 1° The radar angle must be adjusted. The angle must be 35° ± 1° in relation to the soil surface. The angle of the radar is optimal when the surface (A) is parallel to the soil surface. Remove the screws and adjust the bracket along the oblong holes (B).
- Page 7 STR 300S 7. Light soil kit (accessory) Adjust the rubber rods so that they are away from the bank that can form between the repacking wheels on light soils. 8a. Following harrow - “Heavy” model The weight of the “heavy” following harrow is relived from E-Control. The following harrow can also be set with different angles of attack to the soil: Hard conditions/no straw Light conditions/a lot of straw...
- Page 8 STR 300S 8b. Following harrow - “Light” model Tighten the nut in order to give the following Tighten the nut to achieve a more aggressive harrow more weight. angle for the following harrow. 9. Bout marker arms The scribed line from the bout marker arm must be 3 metres from the centre of the machine or 1/5 metres...
-
Page 9: E-Control
STR 300S 9. Scraper > 5 mm E-Control Before each season, you should connect your iPad to the Internet and open E-Control to check whether any new updates have been released. See attachment 2. Home screen (Drive menu) Setup, see next page. Drive checks (page 15). - Page 10 Which seed box roller is suitable for the crop that is to be sewn (Refer to the calibration table)? Spirit R i supplied with three different rollers for the seed feed housing as standard: Grain roller 400 cc (e.g. wheat, etc.) , grass roller 120 cc (grassland, flaxseed, etc.) and an oil plant roller (rape, etc.).
- Page 11 STR 300S Contd. from previous page. Selection of which side you would like to calibrate on (Left/Right). If you know that both of the output boxes produce the same number of pulses per kilo, you can choose to conduct a calibration on one side (Väderstad rec- ommends always calibrating both).
- Page 12 STR 300S Basic settings front tools - Begin by configuring the scale values for the front tool. Lower the front tool so that the discs exactly touch the ground. Press: Current scale 0.50 value. and enter the current scale value. Fully raise the front tool, press: and enter the current scale value.
- Page 13 STR 300S After the configuration has been complet- ed, the ground level will be equal to 0, above ground will be minus and below will be positive (in the example next to this SystemDisc is therefore approx. 1 cm above the ground). Current scale value.
- Page 14 STR 300S Basic Settings Sequence control With the sequence control active the whole seed drill does not need to be up on the headland before lifting and when it is lowered the front tool will be lowered first, followed by the seed coulter. Option to deactivate seed coulters and front tool so that they stop upon lowering.
- Page 15 STR 300S Drive checks Manual feed output. If you want to start feed output from a stationary position, e.g. in a corner, or during output verification, press and hold the button marked in green. Speed can be pre-selected in Setup/General/Manual start. Lift stop.
- Page 16 STR 300S Depth setting for SystemDisc Two of the buttons in the monitoring display are optional: - Choose to display the symbol for the current depth front tool. - Press (D in Drive checks). Current cultivation depth. - Raise or lower using the lifting circuit (Yellow circuit). - Press in order to deactivate the option.
- Page 17 STR 300S Tramlining cycle Actual driven pass in the Refer to the instruction manual for how tramlining cycle. to change the tramlining program and the track width. Selected tramlining programme The green tractor pattern is (18 m in this case). displayed when tramlining is taking place.
-
Page 18: Attachments
STR 300S Attachment 1. Sowing seed The following should be considered when setting the drilling depth: • Soil type? • Moisture? • Plant residues that could cause resistance? • Quality of seedbed? There are three settings that together affect the drilling depth: 1. -
Page 19: Loading New Software
STR 300S Attachment 2 Updating Ipad Info on how to start up E-Control for the first time is available in the instruction manual. Before the season Connect the iPad to the Internet and select the E-Control app. Select Search for updates. If there are any available updates, these will be downloaded. - Page 20 Väderstad AB SE-590 21 VÄDERSTAD Sweden www.vaderstad.com Phone: +46 142 820 00...
