Summary of Contents for Vaderstad Spirit ST 600

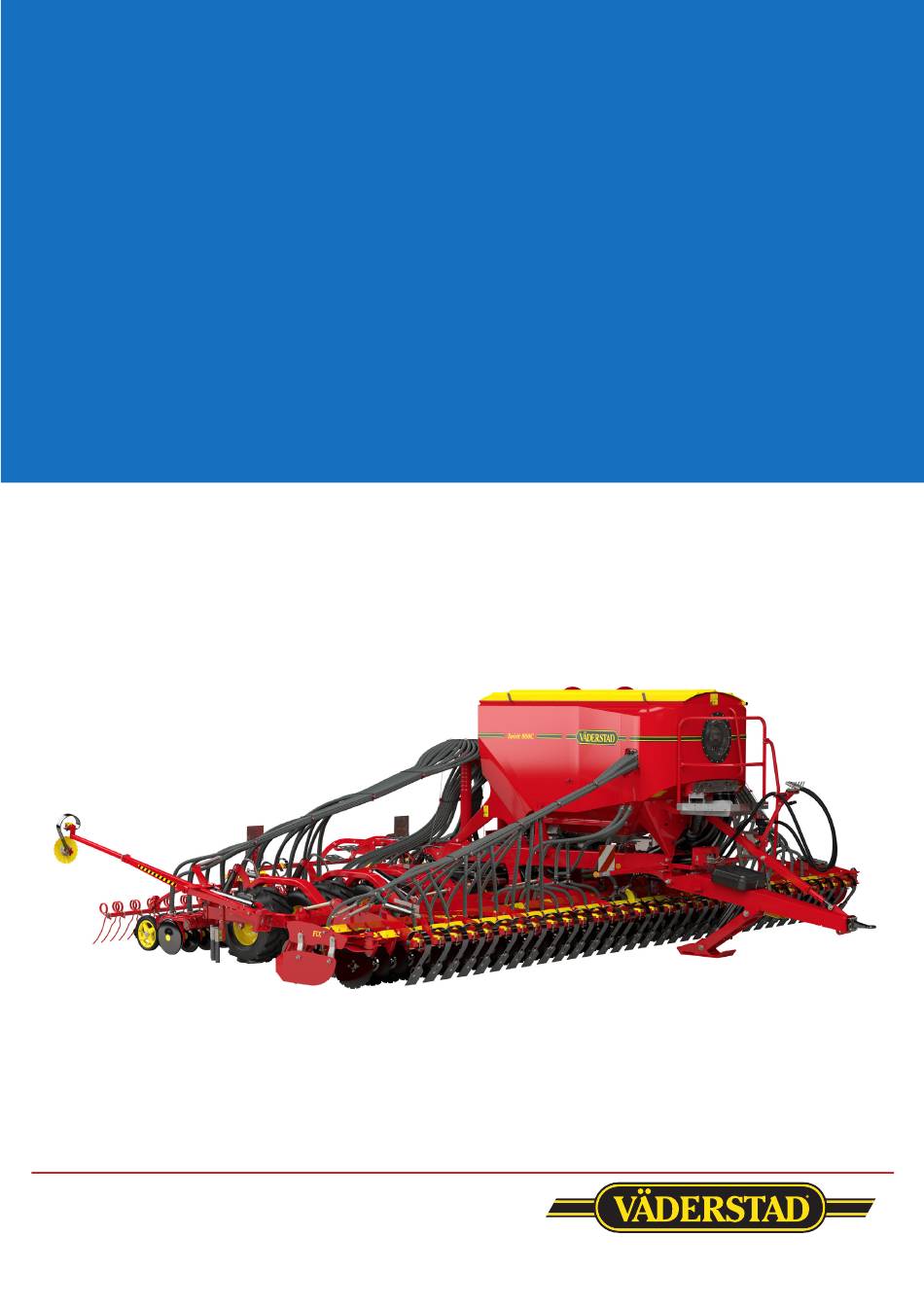

- Page 1 Spirit Quick Start 903126 Series 20170313 - 5 ST 600–900C S/N ST0001025 -...
-
Page 2: Table Of Contents
ST 600–900C This QuickStart does NOT replace the instruction manual that contains much more detailed information! General safety rules Control Station must always be kept closed during transit on the public highway. The safety valve on the front row of the seed drill must always be closed when using the public highway (refer to image 1). -
Page 3: Hitching
ST 600–900C 1. Electrical installation in tractors • Place the ControlStation (monitor) in the cab, the monitor should be placed within the direct field of vision of the driver, also preferable within comfortable and easy reach. • Power supply for seed drill: - If the tractor is equipped with an ISO bus, con- nect the seed drill power cable to the tractor’s power outlet. -
Page 4: Controlstation
ST 600–900C ControlStation 3. Basic settings To access the basic settings, press and hold down ? - the button at the same time as ControlStation turns on. To change values, press Enter to “open”, change value with the selection dial and press Enter to confirm. The settings are: Symbol Function... - Page 5 ST 600–900C Clarification to previous page Select SF (Seed & Fertiliser), as both seed and fertiliser are to be used. Select SS ( Seed & Seed ) if the whole seed hopper volume is to be used for seed. If only the rear space on the seed hooper will be used for seed and the front fertiliser space is empty, select SF and set the fertiliser amount to 0 kg/ha in the calibration menu for fertiliser (refer to 3B Calibration - Fertiliser page 9).
-
Page 6: Controlstation - Overview
ST 600–900C ControlStation - overview Extra set of buttons Tramlining buttons (refer to setting on page 11) 00 - 00 !!!! ? Enter button Selection Dial To confirm or to access a parameter selection Lift button Escape button Start the lifting se- To cancel or leave quence for the seed without saving... - Page 7 ST 600–900C Menu row 1 2a. Wing extending - Extend for working position. NOTE: The safety tap on the frame of the seed drill must be opened in order to be able to extend the seed drill (refer to image 1, page 2) When extending the seed drill, all hydraulic lifting function will be auto- matically raised to the top at the end of the sequence.
- Page 8 ST 600–900C 3a. Calibration - Seed • Press the B button in menu row 1 to arrive at the calibration menu. • Specify the seed amount in the first row, press Enter. Use the selection dial to go to the next row. •...
- Page 9 ST 600–900C 3b. Calibration - Fertiliser The tractor needs to be running when the calibration for fertiliser is conducted, as the fertiliser screw is hydraulically-driven. NOTE: Close the safety tap for the hydraulics before conducting the calibration! 1 Prefill • Place the calibration bag under the fertiliser 2 Fill sack screw in the hatch opening.
- Page 10 ST 600–900C Menu row 2 Increases the coulter pressure Preselected value of the coulter Coulter pressure pressure* Front tool depth *If you wish to have the new coulter 3500 pressure value as the preselected value, hold down the button for 00 - 00 !!!! ? three seconds.
-
Page 11: Settings
ST 600–900C Tramlining settings • The density of the tramlinings is displayed in the bottom left hand cor- ner of the display (here 4) and current furrow (here 2) to the right. • To change the settings for tramlining, press and hold down button 9 until the number becomes shaded. - Page 12 ST 600–900C 2. Radar The upper edge of the radar securing must be parallel with the ground and therefore parallel with the frame. The radar can be re-calibrated if you believe that the speed or area measurement are Upper edge of the not correct.
- Page 13 ST 600–900C Front tool Nordic • Ensure that the front tool is parallel to the ground with a spirit level or measure the distance to the ground. • Adjust the pressure rods. NOTE: It is of the utmost importance to check to ensure that the fertiliser lies between every other sowing row! Check both wings and centre!
-
Page 14: Coulter Pressure
ST 600–900C 6. Coulter pressure • In order to have the same coulter pressure in the centre and wing sections the piston rods of the seed coulters must be lined up. • The intermediate section is used as a reference in this adjustment. If adjustment is required, this is done on the piston rods of the wing sections. - Page 15 ST 600–900C 7. Following harrow - “Heavy” model The “Heavy” following harrow has a weight relief system that lightens the load on the following harrow in light or mull-rich soil conditions. Lift the following harrow to the high-lift position by Normal position changing the position of the cotter pin.
- Page 16 ST 600–900C 7. Following harrow - “Light” model Tighten the nut in order to give the following Tighten the nut to achieve a more aggressive harrow more weight. angle for the following harrow. 9. Scraper > 5 mm 20170313...
-
Page 17: Attachments
ST 600–900C Attachment 1. 7. Rotors Grain rotor Adapted to all normal feed rates of grains such as cereals and peas, (fertiliser). approx 80-100 kg/ha and upwards Grass seed rotor Specific for various types of grass seed blends. Approx 10-60 kg/ Rapeseed rotor Specific for low feed rates of small seed products. -
Page 18: Sowing Seed
ST 600–900C • The diagram below is only a recommendation! Something to BEGIN with! • Sowing MUST be studied and decided in the field! Ascertain the seed and measure the depth of sowing! • Too high a fan speed will result in uneven sowing depth. •... -
Page 19: Image 24
Oil flow test cont. ST 600–900C Attachment 2 Oil flow test • Ensure that there is sufficient space around the seed drill for this test. The seed drill is ex- tended and one of the bout marker arms will be used. •... - Page 20 ST 600–900C Väderstad AB 590 21 VÄDERSTAD SWEDEN Telefon: + 46 (0)142 82000 www.vaderstad.com 20170313...
