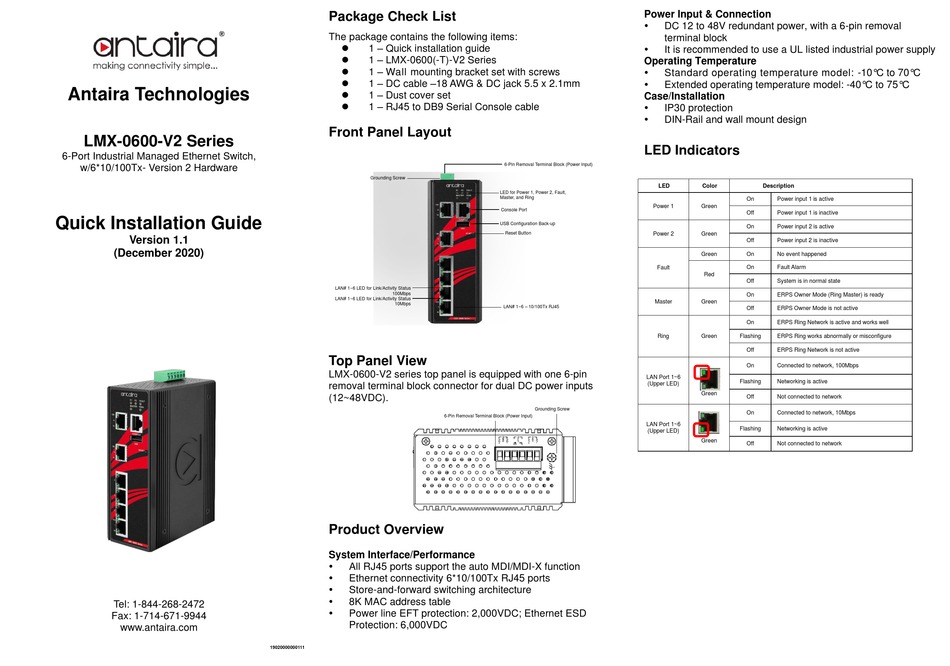

ANTAIRA LMX-0600-V2 Series Quick Installation Manual

Antaira Technologies
LMX-0600-V2 Series
6-Port Industrial Managed Ethernet Switch,
w/6*10/100Tx- Version 2 Hardware
Quick Installation Guide
Version 1.1
(December 2020)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – LMX-0600(-T)-V2 Series
⚫ 1 – Wall mounting bracket set with screws
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ 1 – Dust cover set
⚫ 1 – RJ45 to DB9 Serial Console cable

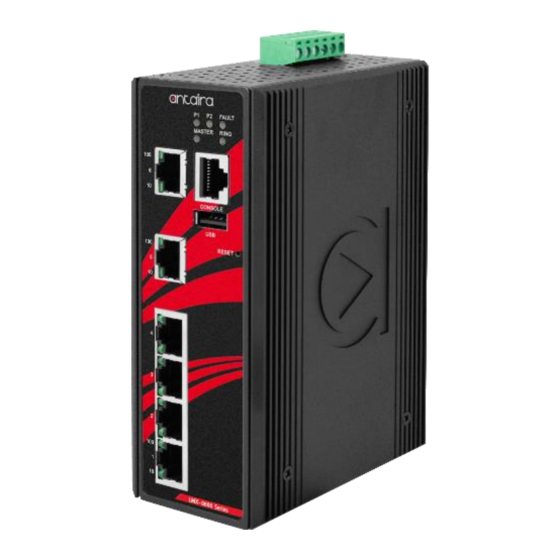

Front Panel Layout
Grounding Screw
LAN# 1~6 LED for Link/Activity Status
100Mbps
LAN# 1~6 LED for Link/Activity Status
10Mbps
Top Panel View
LMX-0600-V2 series top panel is equipped with one 6-pin
removal terminal block connector for dual DC power inputs
(12~48VDC).
6-Pin Removal Terminal Block (Power Input)
Product Overview
System Interface/Performance

All RJ45 ports support the auto MDI/MDI-X function

Ethernet connectivity 6*10/100Tx RJ45 ports

Store-and-forward switching architecture

8K MAC address table

Power line EFT protection: 2,000VDC; Ethernet ESD
Protection: 6,000VDC
19020000000111
Power Input & Connection

DC 12 to 48V redundant power, with a 6-pin removal
terminal block

It is recommended to use a UL listed industrial power supply
Operating Temperature

Standard operating temperature model: -10°C to 70°C

Extended operating temperature model: -40°C to 75°C
Case/Installation

IP30 protection

DIN-Rail and wall mount design
LED Indicators
6-Pin Removal Terminal Block (Power Input)
LED
LED for Power 1, Power 2, Fault,
Master, and Ring
Power 1
Console Port
USB Configuration Back-up
Reset Button Power 2
Fault
Master
LAN# 1~6 – 10/100Tx RJ45
Ring
LAN Port 1~6
(Upper LED)
Grounding Screw
LAN Port 1~6
(Upper LED)
Color Description
On Power input 1 is active
Green
Off Power input 1 is inactive
On Power input 2 is active
Green
Off Power input 2 is inactive
Green On No event happened
On Fault Alarm
Red
Off System is in normal state
On ERPS Owner Mode (Ring Master) is ready
Green
Off ERPS Owner Mode is not active
On ERPS Ring Network is active and works well
Green Flashing ERPS Ring works abnormally or misconfigure
Off ERPS Ring Network is not active
On Connected to network, 100Mbps
Flashing Networking is active
Green
Off Not connected to network
On Connected to network, 10Mbps
Flashing Networking is active
Green
Off Not connected to network
