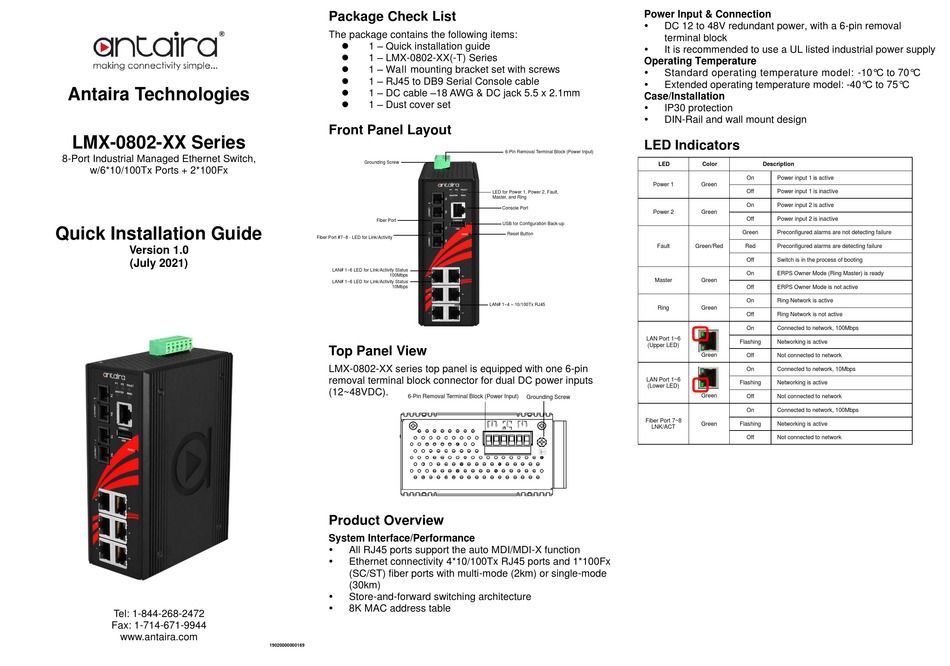

ANTAIRA LMX-0802 Series Quick Installation Manual

Antaira Technologies
LMX-0802-XX Series
8-Port Industrial Managed Ethernet Switch,
w/6*10/100Tx Ports + 2*100Fx
Quick Installation Guide
Version 1.0
(July 2021)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – LMX-0802-XX(-T) Series
⚫ 1 – Wall mounting bracket set with screws
⚫ 1 – RJ45 to DB9 Serial Console cable
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
1 – Dust cover set
⚫

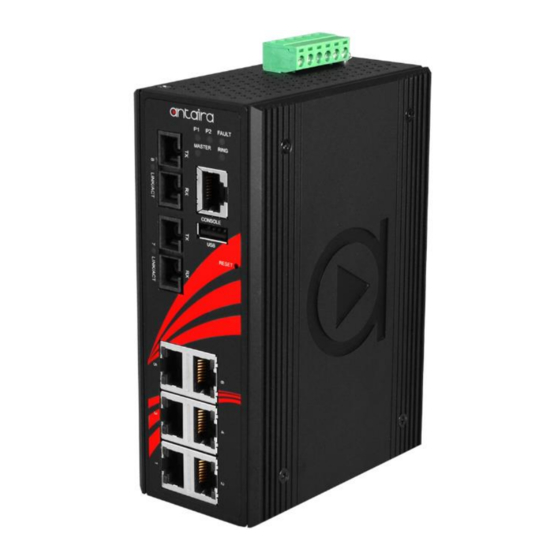

Front Panel Layout
Grounding Screw
Fiber Port
Fiber Port #7~8 - LED for Link/Activity
LAN# 1~6 LED for Link/Activity Status
100Mbps
LAN# 1~6 LED for Link/Activity Status
10Mbps
Top Panel View
LMX-0802-XX series top panel is equipped with one 6-pin
removal terminal block connector for dual DC power inputs
(12~48VDC).
6-Pin Removal Terminal Block (Power Input)
Product Overview
System Interface/Performance

All RJ45 ports support the auto MDI/MDI-X function

Ethernet connectivity 4*10/100Tx RJ45 ports and 1*100Fx
(SC/ST) fiber ports with multi-mode (2km) or single-mode
(30km)

Store-and-forward switching architecture

8K MAC address table
19020000000169
Power Input & Connection

DC 12 to 48V redundant power, with a 6-pin removal
terminal block

It is recommended to use a UL listed industrial power supply
Operating Temperature

Standard operating temperature model: -10°C to 70°C

Extended operating temperature model: -40°C to 75°C
Case/Installation

IP30 protection

DIN-Rail and wall mount design
LED Indicators
6-Pin Removal Terminal Block (Power Input)
LED
Power 1
LED for Power 1, Power 2, Fault,
Master, and Ring
Console Port
Power 2
USB for Configuration Back-up
Reset Button
Fault
Master
LAN# 1~4 – 10/100Tx RJ45
Ring
LAN Port 1~6
(Upper LED)
LAN Port 1~6
(Lower LED)
Grounding Screw
Fiber Port 7~8
LNK/ACT
Color Description
On Power input 1 is active
Green
Off Power input 1 is inactive
On Power input 2 is active
Green
Off Power input 2 is inactive
Green Preconfigured alarms are not detecting failure
Green/Red Red Preconfigured alarms are detecting failure
Off Switch is in the process of booting
On ERPS Owner Mode (Ring Master) is ready
Green
Off ERPS Owner Mode is not active
On Ring Network is active
Green
Off Ring Network is not active
On Connected to network, 100Mbps
Flashing Networking is active
Green
Off Not connected to network
On Connected to network, 10Mbps
Flashing Networking is active
Green
Off Not connected to network
On Connected to network, 100Mbps
Green Flashing Networking is active
Off Not connected to network
