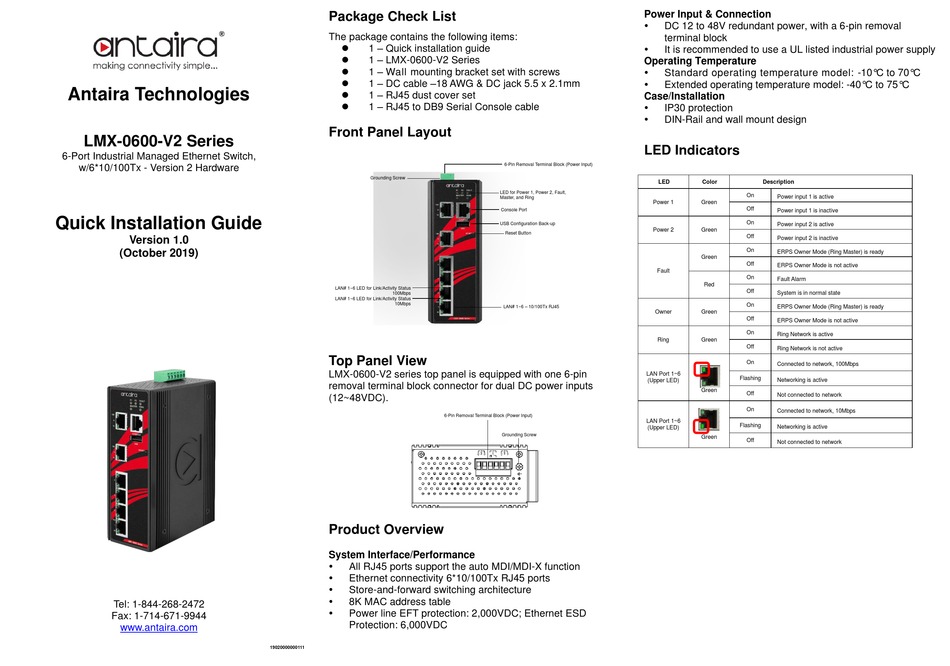

ANTAIRA LMX-0600-V2 Series Quick Installation Manual

Antaira Technologies

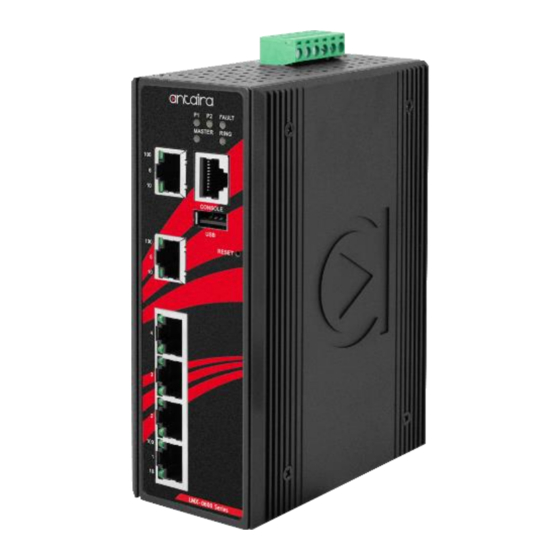

LMX-0600-V2 Series
6-Port Industrial Managed Ethernet Switch,
w/6*10/100Tx - Version 2 Hardware
Quick Installation Guide
Version 1.0
(October 2019)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – LMX-0600-V2 Series
⚫ 1 – Wall mounting bracket set with screws
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ 1 – RJ45 dust cover set
⚫ 1 – RJ45 to DB9 Serial Console cable
Front Panel Layout
Grounding Screw
LAN# 1~6 LED for Link/Activity Status
100Mbps
LAN# 1~6 LED for Link/Activity Status
10Mbps
Top Panel View
LMX-0600-V2 series top panel is equipped with one 6-pin
removal terminal block connector for dual DC power inputs
(12~48VDC).
6-Pin Removal Terminal Block (Power Input)
Product Overview
System Interface/Performance

All RJ45 ports support the auto MDI/MDI-X function

Ethernet connectivity 6*10/100Tx RJ45 ports

Store-and-forward switching architecture

8K MAC address table

Power line EFT protection: 2,000VDC; Ethernet ESD
Protection: 6,000VDC
19020000000111
Power Input & Connection

DC 12 to 48V redundant power, with a 6-pin removal
terminal block

It is recommended to use a UL listed industrial power supply
Operating Temperature

Standard operating temperature model: -10°C to 70°C

Extended operating temperature model: -40°C to 75°C
Case/Installation

IP30 protection

DIN-Rail and wall mount design
LED Indicators
6-Pin Removal Terminal Block (Power Input)
LED
LED for Power 1, Power 2, Fault,
Master, and Ring
Power 1
Console Port
USB Configuration Back-up
Power 2
Reset Button
Fault
LAN# 1~6 – 10/100Tx RJ45
Owner
Ring
LAN Port 1~6
(Upper LED)
LAN Port 1~6
(Upper LED)
Grounding Screw
Color Description
On
Power input 1 is active
Green
Off
Power input 1 is inactive
On
Power input 2 is active
Green
Off
Power input 2 is inactive
On
ERPS Owner Mode (Ring Master) is ready
Green
Off
ERPS Owner Mode is not active
On
Fault Alarm
Red
Off
System is in normal state
On
ERPS Owner Mode (Ring Master) is ready
Green
Off
ERPS Owner Mode is not active
On
Ring Network is active
Green
Off
Ring Network is not active
On
Connected to network, 100Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
Connected to network, 10Mbps
Flashing
Networking is active
Green
Off
Not connected to network
