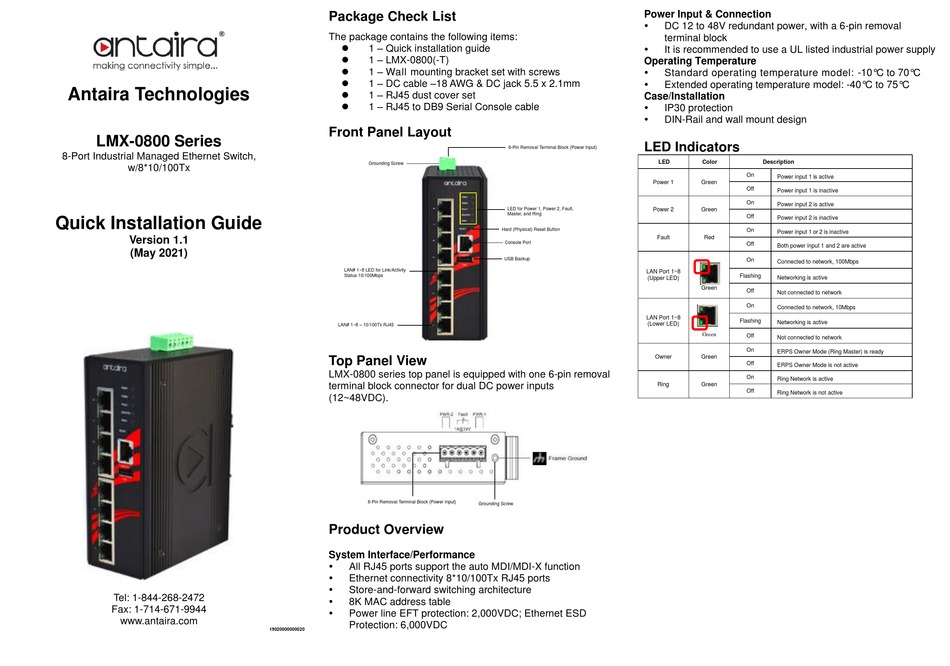

ANTAIRA LMX-0800 Series Quick Installation Manual

Antaira Technologies
LMX-0800 Series
8-Port Industrial Managed Ethernet Switch,
w/8*10/100Tx
Quick Installation Guide
Version 1.1
(May 2021)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – LMX-0800(-T)
⚫ 1 – Wall mounting bracket set with screws
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ 1 – RJ45 dust cover set
⚫ 1 – RJ45 to DB9 Serial Console cable

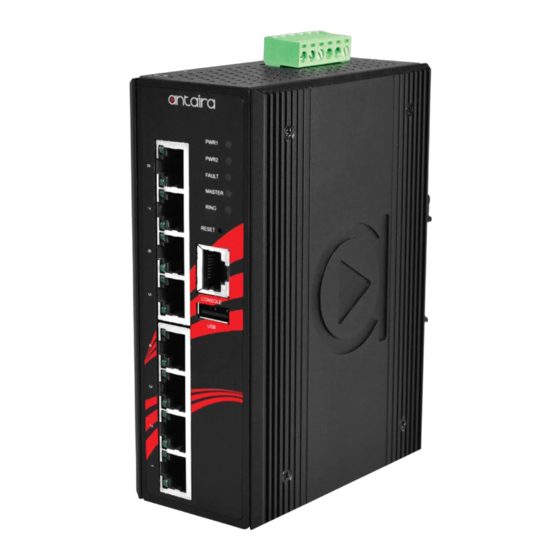

Front Panel Layout
Grounding Screw
LAN# 1~8 LED for Link/Activity
Status 10/100Mbps
LAN# 1~8 – 10/100Tx RJ45
Top Panel View
LMX-0800 series top panel is equipped with one 6-pin removal
terminal block connector for dual DC power inputs
(12~48VDC).
6-Pin Removal Terminal Block (Power Input)
Product Overview
System Interface/Performance

All RJ45 ports support the auto MDI/MDI-X function

Ethernet connectivity 8*10/100Tx RJ45 ports

Store-and-forward switching architecture

8K MAC address table

Power line EFT protection: 2,000VDC; Ethernet ESD
Protection: 6,000VDC
19020000000020
Power Input & Connection


Operating Temperature


Case/Installation


LED Indicators
6-Pin Removal Terminal Block (Power Input)
Power 1
LED for Power 1, Power 2, Fault, Power 2
Master, and Ring
Hard (Physical) Reset Button
Console Port
USB Backup
LAN Port 1~8
(Upper LED)
LAN Port 1~8
(Lower LED)
Grounding Screw
DC 12 to 48V redundant power, with a 6-pin removal
terminal block
It is recommended to use a UL listed industrial power supply
Standard operating temperature model: -10°C to 70°C
Extended operating temperature model: -40°C to 75°C
IP30 protection
DIN-Rail and wall mount design
LED Color Description
On
Power input 1 is active
Green
Off
Power input 1 is inactive
On
Power input 2 is active
Green
Off
Power input 2 is inactive
On
Power input 1 or 2 is inactive
Fault Red
Off
Both power input 1 and 2 are active
On
Connected to network, 100Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
Connected to network, 10Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
ERPS Owner Mode (Ring Master) is ready
Owner Green
Off
ERPS Owner Mode is not active
On
Ring Network is active
Ring Green
Off
Ring Network is not active
